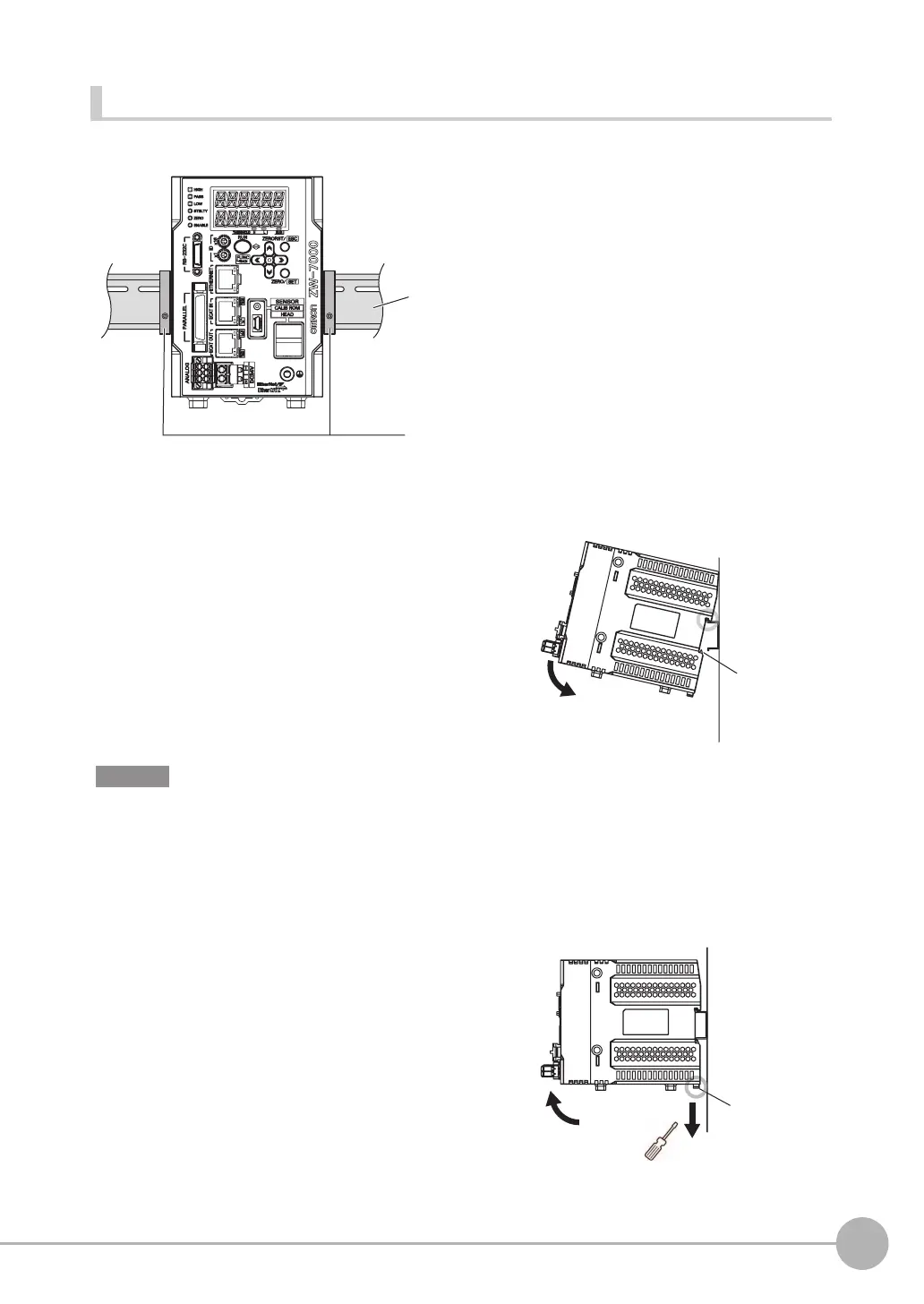

Installing on the DIN track
The following describes how to attach the Sensor Controller on a 35 mm-wide DIN track.
Installation procedure
Always hook the upper edge of the slot on the Sensor Controller's back first onto the DIN track. Hooking the Sensor
Controller starting from the lower edge of the slot may impair the mounting strength. After completely installing the
Sensor Controller, make sure that it is securely fixed.
Removal procedure
1 Hook the upper edge of the Sensor Controller's back
slot onto the upper edge of the DIN track.
2 Push the Sensor Controller down onto the DIN track
until the DIN track attachment hook is locked.
Push in until you hear a “click” sound.
1 Pull DIN track attachment hook downwards using a
slotted screwdriver or an equivalent.
2 Lift up the Sensor Controller from the lower side, and
remove it from the DIN track.
DIN track (option)
End plate (option)
PFP-100N (1 m)
PFP-50N (0.5 m)
PFP-100N2 (1 m)
PFP-M
DIN track
attachment
hook
Important
DIN track
attachment
hook
