Displaying Measured Values and Received Light Waveform
ZW-7000/5000
User's Manual
91
3
Basic Operation

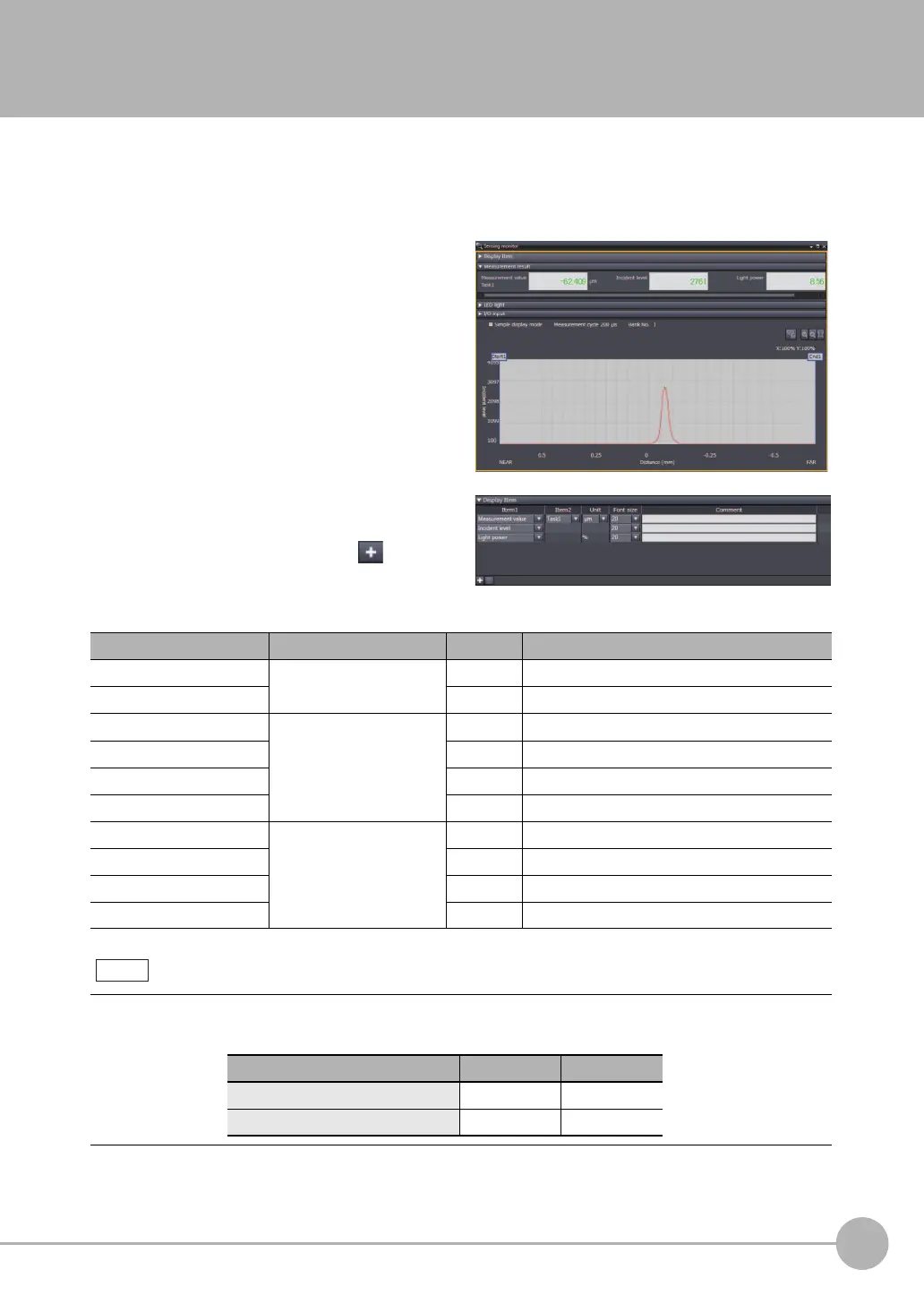

3-3 Displaying Measured Values and Received Light Waveform
The measurement values and received light waveform can be displayed.
Multi View Explore : [Device Group] | [(Sensor Name)] (right-click)
1
Select [Sensing monitor].
On the edit pane, the [Sensing monitor] window
appears
.
2
According to the items for result display,
add or delete [Display item].
Click the [add target data] icon ( ).
To delete the target data from the list, select the
line,
and then click [Delete].
Item1 Item2 Unit Description
Amount of received light - None Amount of received light in a specified area.
Amount of emitted light % Amount of emitted light in a specified area.
Measurement value TASK1/TASK2/TASK3/TASK4 μm, mm Measurement value of a specified TASK.
Judgment upper limit value μm, mm Judgment upper limit value of a specified TASK.
Judgment lower limit value μm, mm Judgment lower limit value of a specified TASK.
Resolution μm, mm Resolution of a specified TASK.
Current value - mA Output current value
Voltage value V Output voltage value
Absolute distance μm, mm Value of distance to a workpiece surface.
Current bank - Current bank number
Can change the font size (9 to 40) for each item.
Also can enter comment and change the number of items displayed on each line.
Note
Item default value Range
Font size 20 9 to 40
Number of displayed item by one line 2 1 to 5
