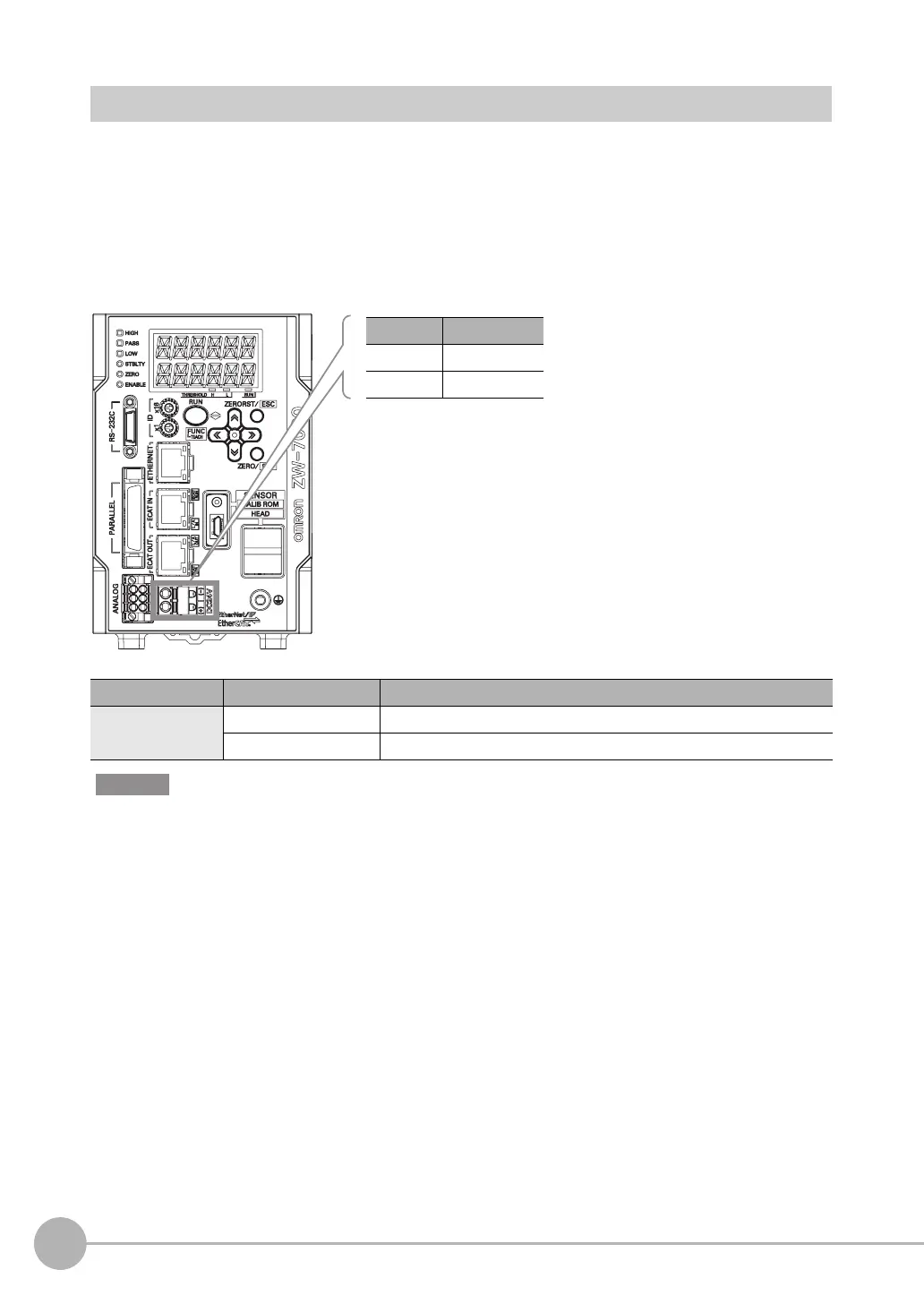

24 V input terminal block
Used for 24 VDC power supply.
Compatible cable specifications: Solid wire 0.2 to 2.5 mm
2
Stranded wire 0.2 to 2.5 mm
2
Stranded wire with rod terminal(no plastic sleeve) 0.25 to 2.5 mm
2
Stranded wire with rod terminal(with plastic sleeve) 0.25 to 2.5 mm
2
AWG 24 to 12
Pin processed length 10 (±0.5) mm
• Wiring with the power on could result in a short-circuit or electric shock. Wire with the power off.
• Wire the power supply separate from other devices.
Wiring together with other devices or using the same duct could
cause a false operation or damage the sensor.
• Do not turn off the power during initial processing immediately after the Sensor Cont
roller power is turned on, as the
memory inside the Sensor Controller is being accessed. This may corrupt the data.
• Securely fasten the terminal block to prevent injury when you press in the release bu
tton with a screwdriver.
• Use the electric cable within 2m.
Class Name Description
Power Supply DC24V (+) Terminal for external power supply (24 V)
DC24V (−) Terminal for external power supply (0 V)
No. Signal name
1 DC24V (−)
2 DC24V (+)
