Wiring
ZW-7000/5000
User's Manual
2
Installation and Connections
75
• After the connection has been established, pull the wire gently, to make sure that the connection has been made
securely.
• Securely fasten the terminal block to prevent injury when you press in the release bu
tton with a screwdriver.
• Do not use 24V power terminal block which is used in ZW-CE series.

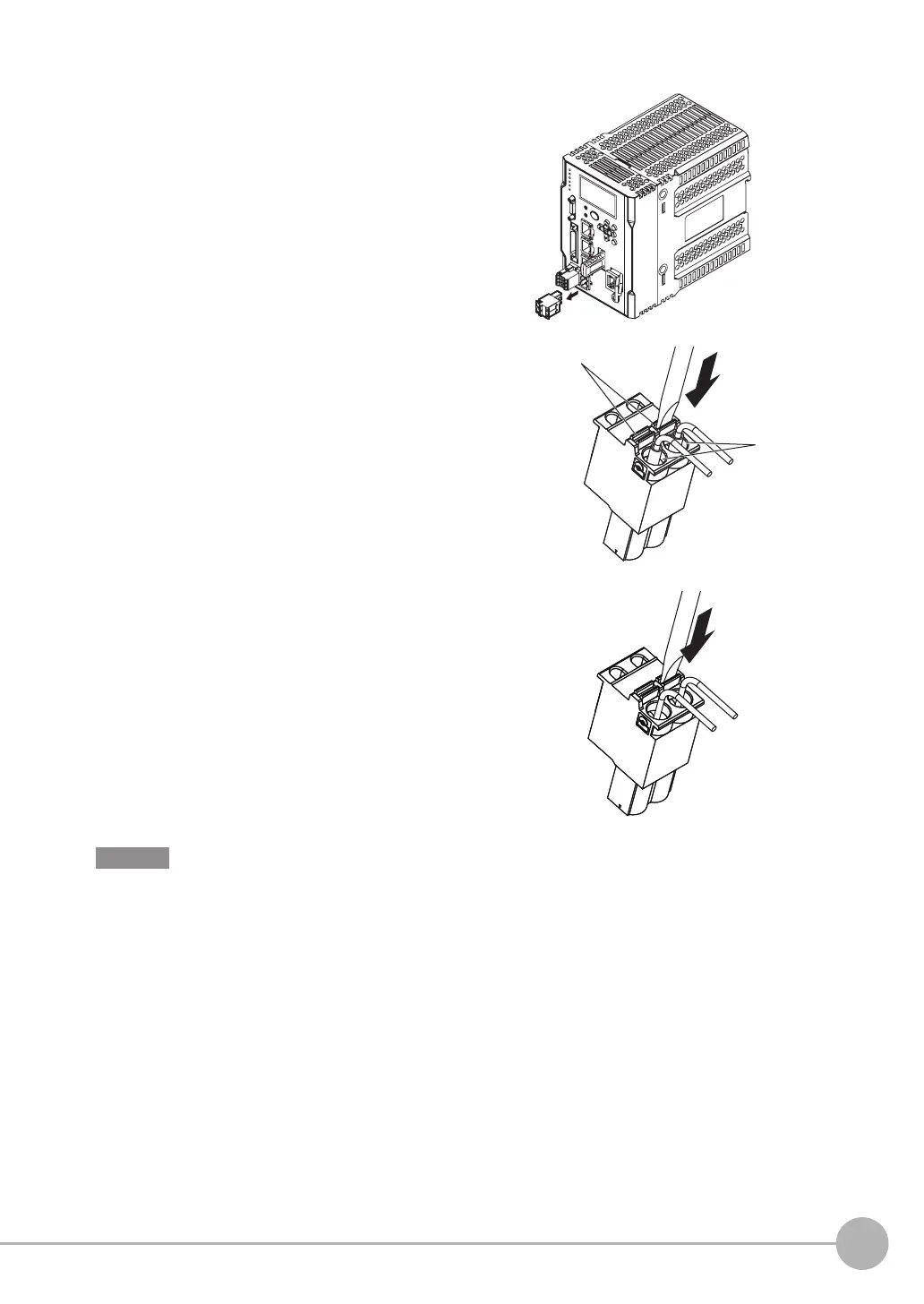

1 Remove the 24 V input terminal block to the Sensor
Controller.
2 Insert the cord to the terminal hole.
• When you use a wire attached rod terminal, you can in-
sert just with Push-IN.
• When using single wire, or stranded wire
Insert the wire deeply in to the terminal hole while
push
ing
the release button on the side of terminal hole
using a screwdriver.
3 Reinstall the 24 V input terminal block to the Sensor
Controller.
Release button
Terminal
hole
Important
To Next Page
