Setting Measurement Items
214
ZW-7000/5000
User's Manual
Calculating
Performing Calculations p.128
As an example, here is an explanation of the output of the calculation result below.
(Example)
When calculating the amount of convexity and concavity on the object surface from the difference between the
aver
age value and the peaks and outputting this to TASK3
TASK1: Surface peak hold
TASK2: Surface average hold
TASK3: TASK1 - TASK2 setting
• PARAMETER K: 0
• PARAMETER m: 1
• PARAMETER n: -1
• PARAMETERX: TASK1
• PARAMETERY: TASK2

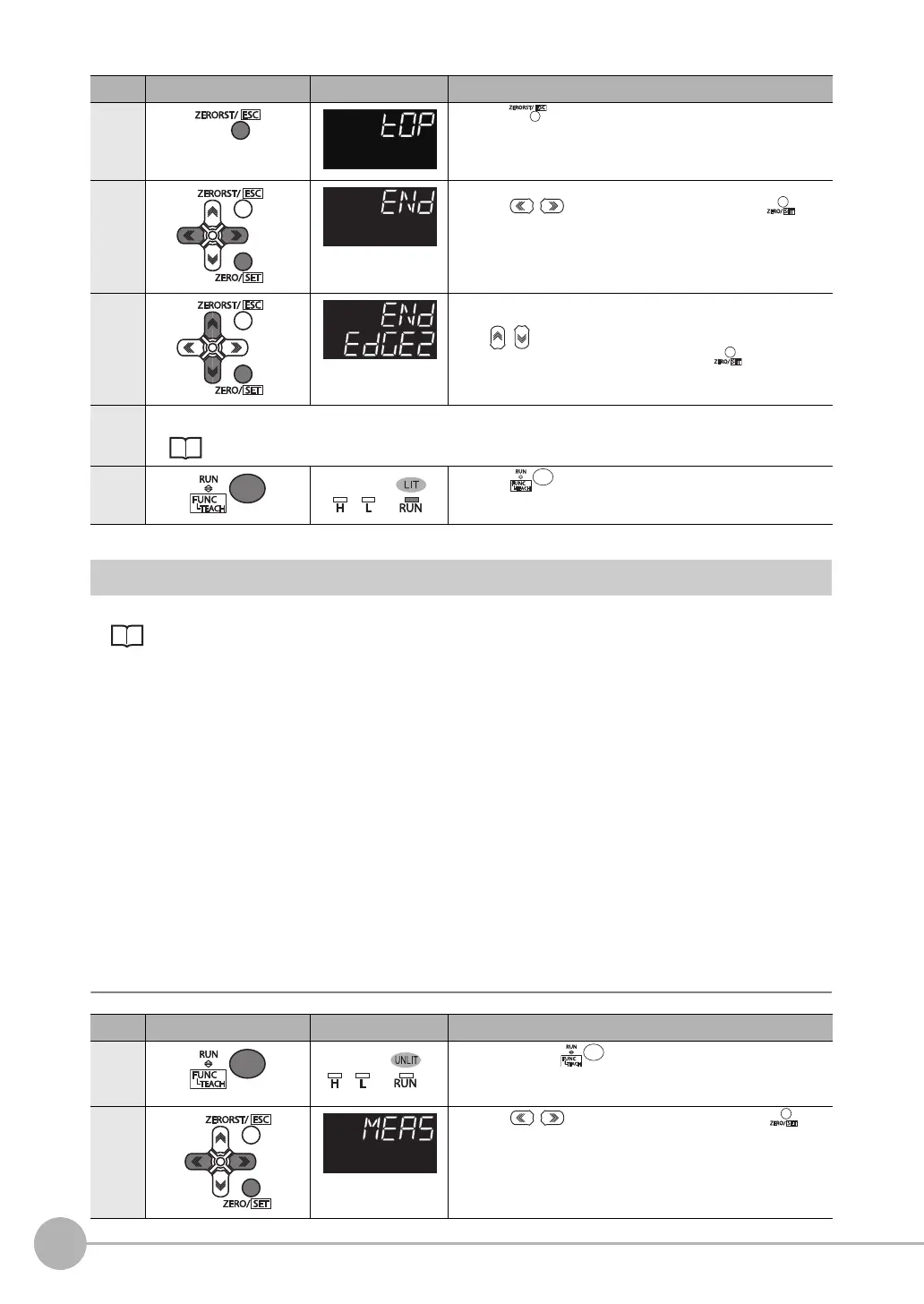

Operating procedure
4-1 Press the key to return to the previous menu.
4-2 Select “SUR2.”
Press the / keys to select “END” and press the
key.
4-3 Select the measurement surface.
The current setting value is displayed on the sub-display.
Press / key to enter editing mode and the sub-display blinks.
In this example, select “EDGE2” and press the
key.
5 Scaling setting
Setting Scaling p.130
6 Press the key for two seconds to enter the RUN mode.
Steps Key operation Display Description
1 Press and hold the key for two seconds to enter the FUNC
mode.
2 Press the / key to select MEAS, then press the key.
Steps Key operation Display Description
To Next Page
