Functions of Operating Keys
ZW-7000/5000
User's Manual
197
Sensor controller operations
7
7-2 Functions of Operating Keys

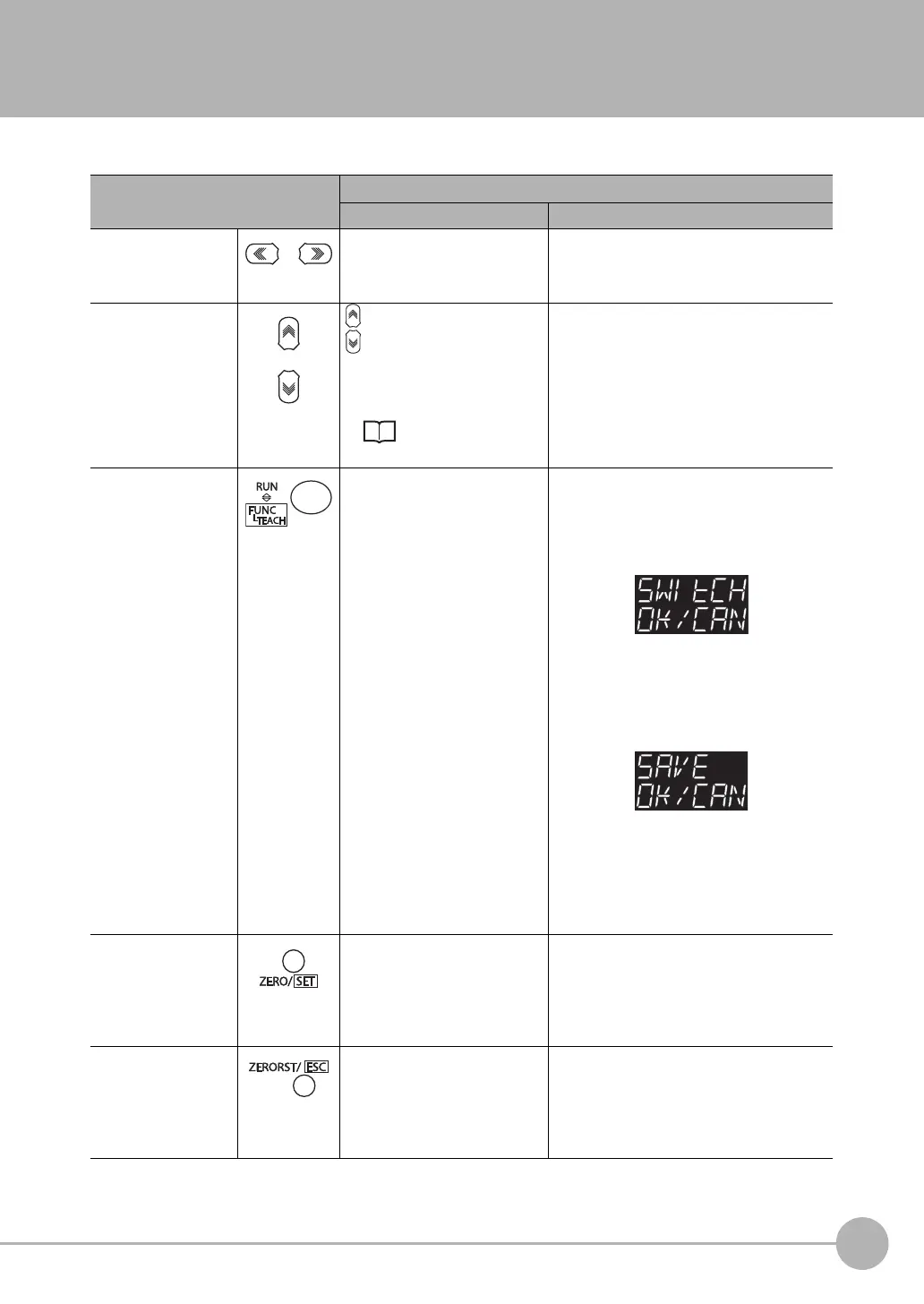

The following table lists the names and functions of the operating keys on the Sensor Controller:
Name Function
RUN Mode FUNC Mode
← (LEFT) key
→ (RIGHT) key
Changes sub-display content. Functions differently depending on the settings.
• Function display switching
• Numerical value digit selection
• Setting cancellation
↑ (UP) key
↓ (DOWN) key
key: Executes TIMING input.
key: Executes RESET input.
* These keys are available only if key
inputs for the hold functions have
been enabled in the FUNC mode.
Performing Hold with
a Key Input p.150
Functions differently depending on the settings.
• Selection menu switching
• Setting value selection
Mode switching key Hold down for at least two seconds
to enter t
he FUNC mode.
Hold down for at least two seconds to enter the
RUN mode.
• For operating mode switching, “SWITCH” is
displ
ay
ed on the main display and “OK/CAN” is
displayed on the sub-display. Press the ZERO/
SET key to switch the mode.
• When the mode is switched from FUNC mode
to R
UN mode, “SAVE” is displayed on the main
display and “OK/CAN” is displayed on the sub-
display.
Press the ZERO/SET key to save the settings
and switch the operating mode.
Press the ZERORST/ESC key to switch the
operating mode without saving the settings.
If you press for less than 2 seconds, the display
shifts to
RUN mode task switching and the
threshold value setting menu.
Also, this starts teaching t
o set th
reshold values
when setting a threshold value.
ZERO/SET key Executes a zero reset. Functions differently depending on the selections.
• Application of selection conditions and numeri-
cal values
• Switching to lower menus
ZERORST/ESC key Hold down for at least two seconds
to cancel a z
ero reset.
Functions differently depending on the selections.
• Cancellation of selection conditions and numer-
ical values
• Switching to upper menus
Hold down for at least two seconds to jump to the
top menu on t
he FUNC mode.
