Setting Measurement Items
128
ZW-7000/5000
User's Manual

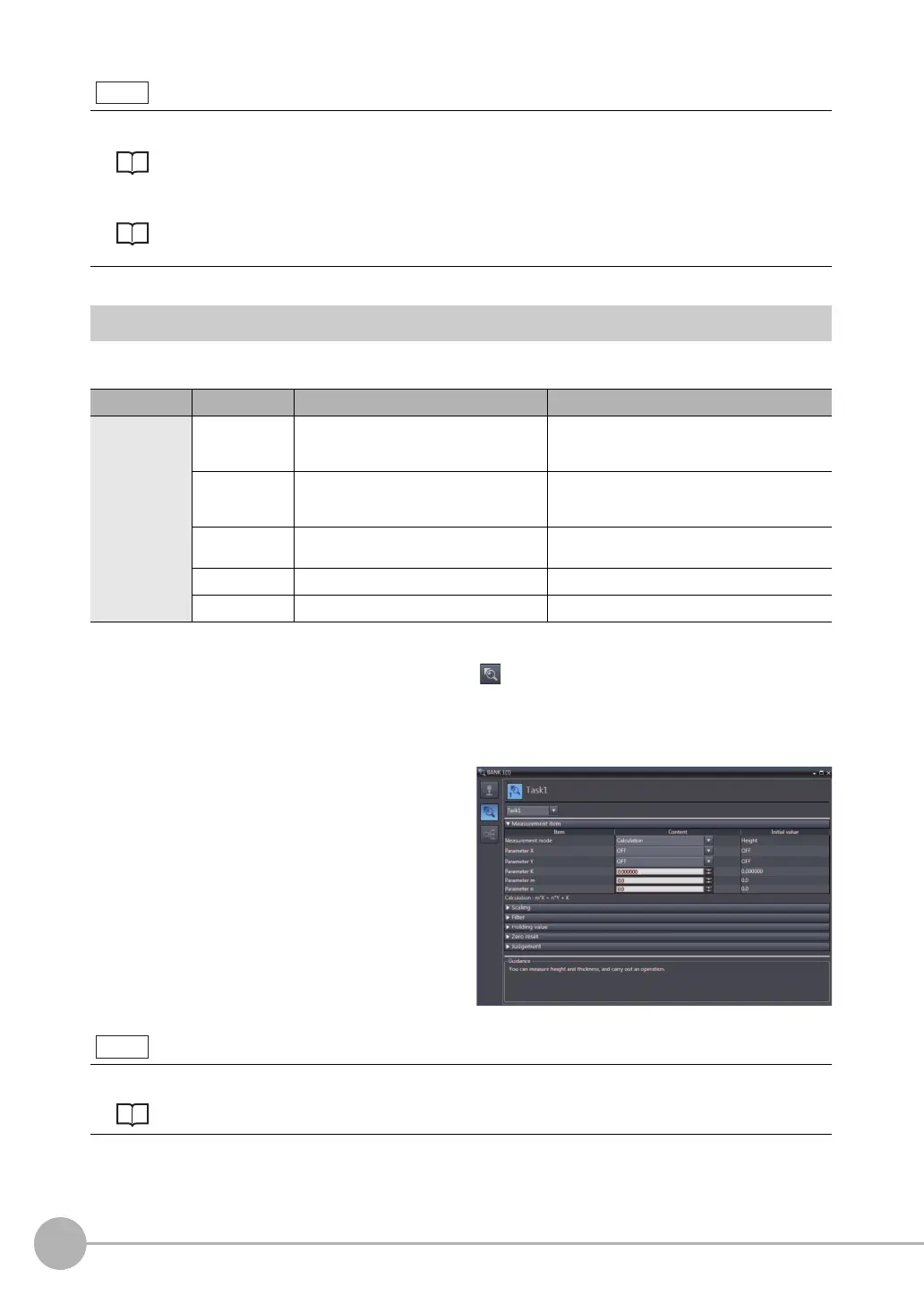

Performing Calculations
Perform calculations using the results calculated by the tasks. The calculation formula is mX+nY+K.
Multi View Explore : [Bank] | [(Bank Data Name)] (double click)
→ Edit pane : [Task Settings] icon ( )
→ Task Settings window : [Measurement mode]
Select [Calculation] in [Measurem
ent mode].
• Thickness measurement can also be set by the operating keys on the Sensor Controller.
Measuring the Thickness p.213
• For the setting of measurement area to control of light adjustment, refer to the following:
Setting Light Exposure Time Control Mode p.121
Setting Exposure Time Control Mode p.209
Item Setting item Setting value Description
Calculation Parameter X OFF (default value)/TASK1 to TASK4 The task to be calculated can be switched.
When the TASK1 is selected, TASK1 is not
disp
layed in the setting item.
Parameter Y OFF (default value)/TASK1 to TASK4 The task to be calculated can be switched.
When the TASK1 is selected, TASK1 is not
disp
layed in the setting item.
Parameter K -999.999999 to 999.999999
(default value: 0)
Set the offset value.
Parameter m -10.0 to 10.0 (default value: 0) Set the coefficient value.
Parameter n -10.0 to 10.0 (default value: 0) Set the coefficient value.
1
Select [Calculation] in [Measurement mode].
2
Select the task to be calculated from
[Parameter X] and [Parameter Y].
3
Select the offset value from [Parameter K].
4
Select the coefficient from [Parameter m]
and [Parameter n].
Performing Calculations can also be set by the operating keys on the Sensor Controller.
Calculating p.214
Note
Note
