Setting the Output Conditions
ZW-7000/5000
User's Manual
221
Sensor controller operations
7
Setting Scaling
Performing Manual Scaling
Performing Manual Scaling p.130
As an example, here is an explanation of the procedure for setting the manual scaling type to “SPAN” and the
inclinat
ion coefficient to “1.2”.

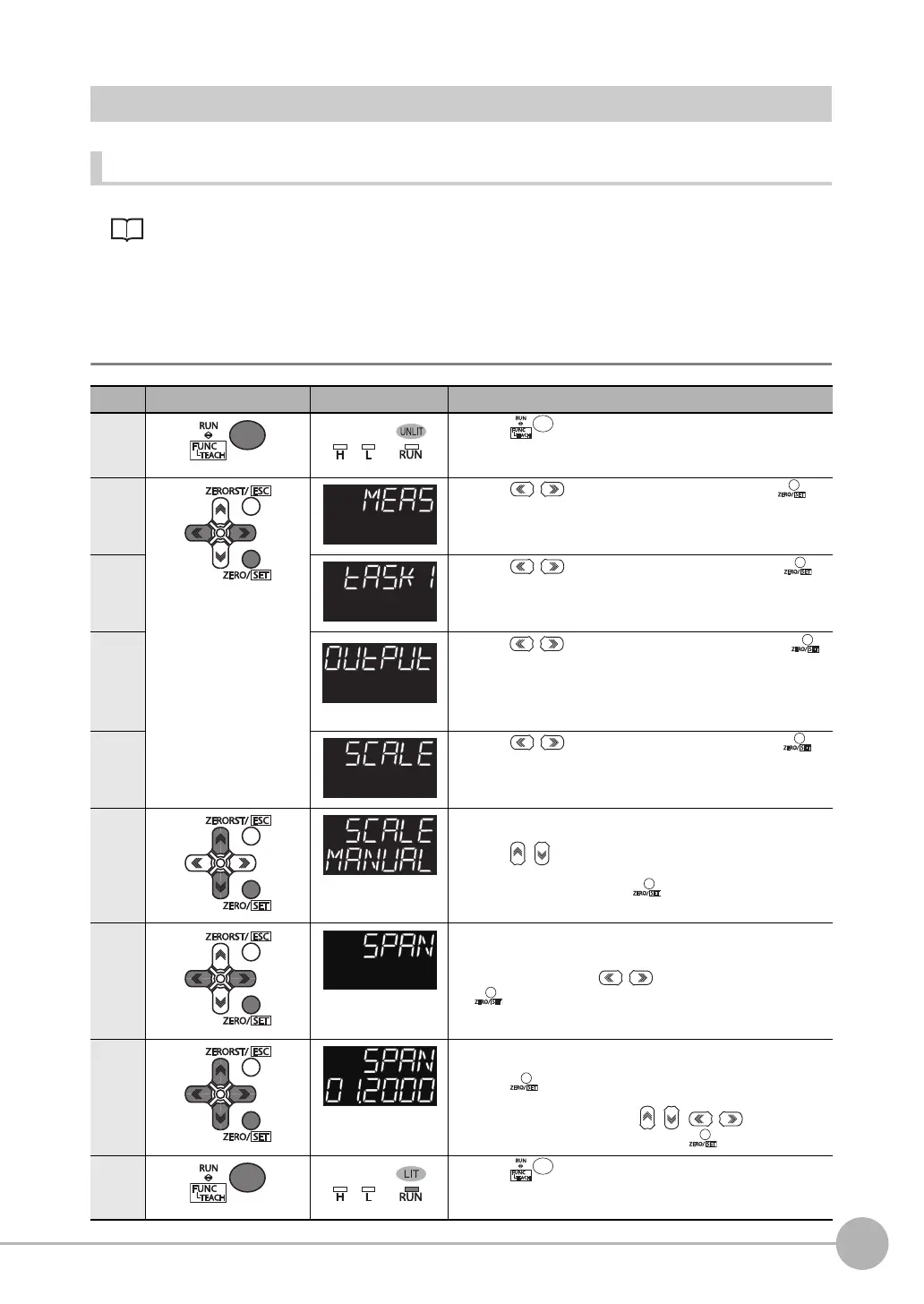

Operating procedure
Steps Key operation Display Description
1 Press the key for two seconds to enter the FUNC mode.
2 Press the / keys to select “MEAS” and press the
key.
3 Press the / keys to select “TASK 1” and press the
key.
4 Press the / keys to select “OUTPUT” and press the
key.
5 Press the / keys to select “SCALE” and press the
key.
6 Select “MANUAL” as the scaling type.
The current setting value is displayed on the sub-display.
Press the / keys to enter the editing mode, and the sub-
display blinks.
Select “MANUAL” and press the key.
7 Set the manual scaling type.
SPAN: Span
OFFSET: Offset
In this example, press the / keys, select “SPAN” and press
the key.
8 Set the inclination coefficient.
The current setting value is displayed on the sub-display.
Press the key to enter the editing mode, and the sub-display
blinks.
To edit numerical values, use the / / / keys.
In this example, select “1.2” and press the
key.
9 Press the key for two seconds to enter the RUN mode.
To Next Page
