Setting the Output Conditions
220
ZW-7000/5000
User's Manual

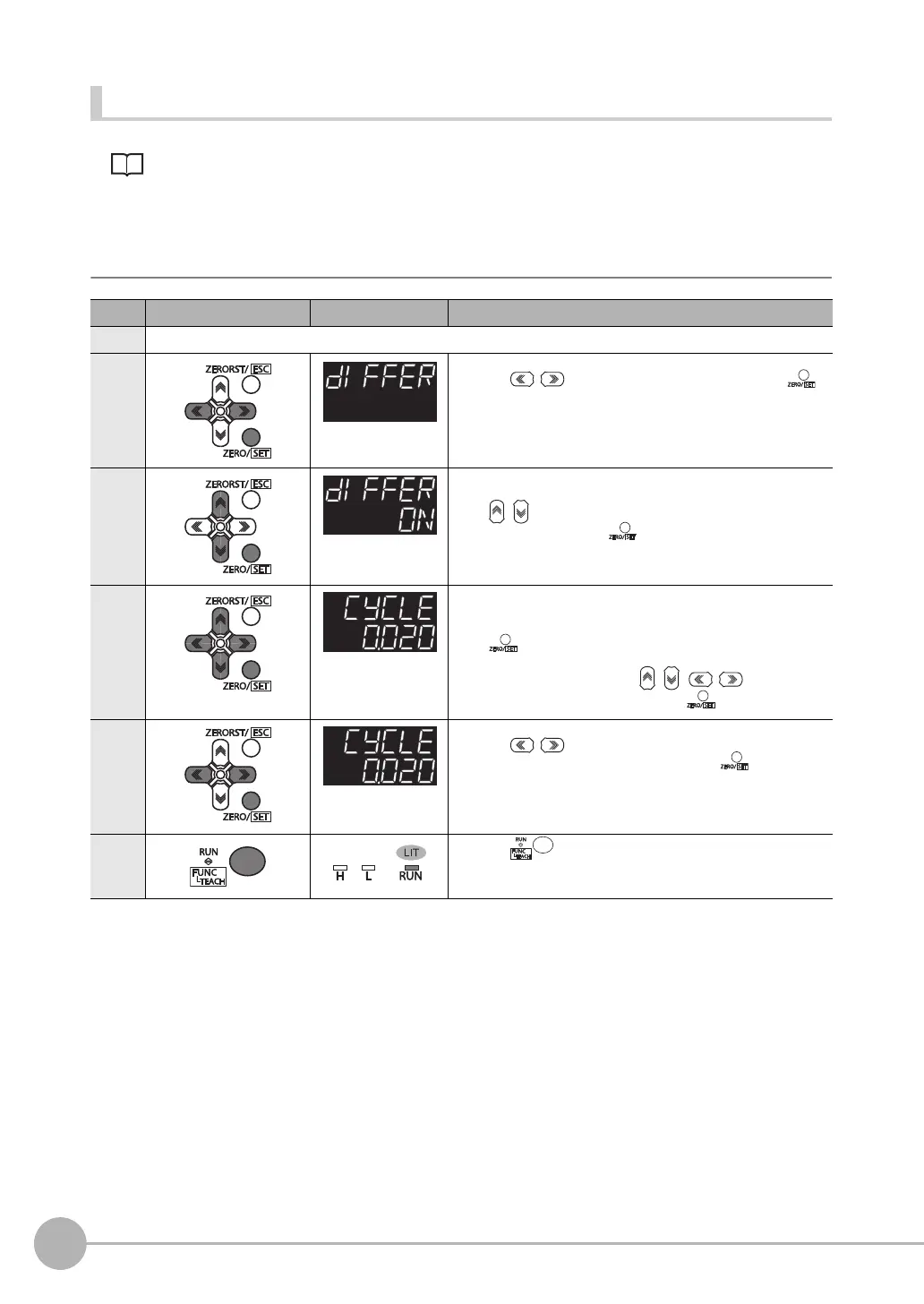

Setting the Differentiation Filter
Setting the Differentiation Filter p.142
As an example, here is an explanation of the procedure for selec
ting the “10ms” number of differential cycles.
Operating procedure
Steps Key operation Display Description
1 to 4 For moving to “FILTER”, see steps 1 to 4 in p.217.
5 Select “DIFFER” as the filter type.
Press the / keys to select “DIFFER” and press the
key.
6 Enable the differentiation filter.
The current setting value is displayed on the sub-display.
Press / key to enter editing mode and the sub-display blinks.
Select “ON”, then press the key.
7 Set the number of differential cycles.
“CYCLE” is displayed on the main display and the current setting
value is
displayed on the sub-display.
Press key to enter the editing mode, and the sub-display
blinks.
To edit numerical values, use the / / / keys.
In this example, input “10”, then press the
key.
8 The decimal point is displayed.
Press the / key to move the decimal point.
Determine the decimal point and then press the
key.
9 Press the key for two seconds to enter the RUN mode.
To Next Page
