Setting the Output Conditions
ZW-7000/5000
User's Manual
219
Sensor controller operations
7
Setting the Frequency Filter
Setting the Frequency Filter p.139
As an example, here is an explanation of the procedure for
selecting the “LOPASS” setting for the frequency
filter type, and the “1Hz” cut-off frequency filter setting.
Operating procedure

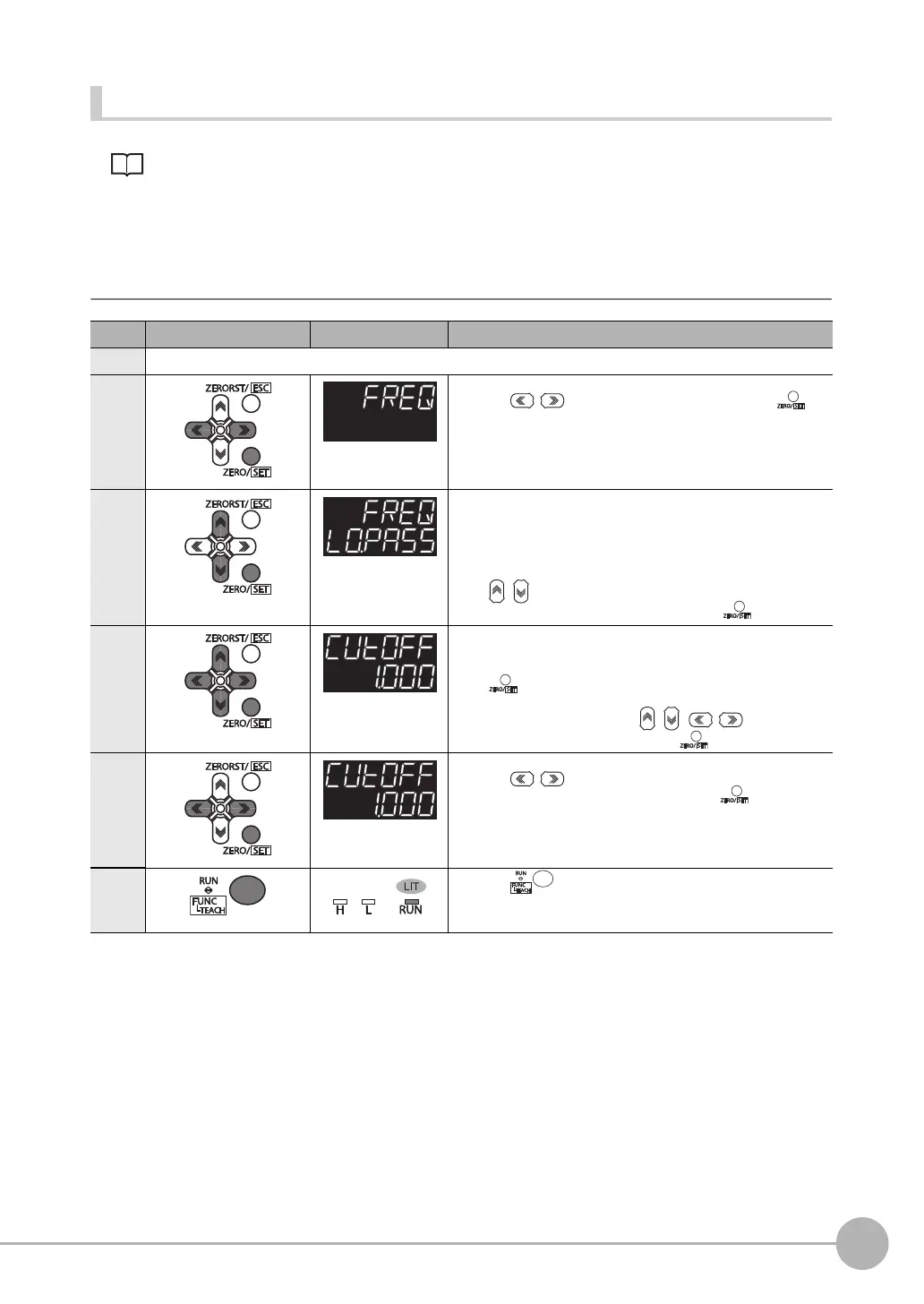

Steps Key operation Display Description
1 to 4 For moving to “FILTER”, see steps 1 to 4 in p.217.
5 Select “FRQNCY” as the filter type.
Press the / keys to select “FREQ” and press the
key.
6 Select the frequency filter type.
LO.PASS: LOWPASS FILTER
HIPASS: HIGHPASS FILTER
BD.PASS: BANDPASS FILTER
Select “LOPASS” as the frequency filter type.
The current setting value is displayed on the sub-display.
Press / key to enter editing mode and the sub-display blinks.
In this example, select “LO.PASS” and press the
key.
7 Set the cut-off frequency.
“CUTOFF” is displayed on the main display and the current setting
value is
displayed on the sub-display.
Press key to enter the editing mode, and the sub-display
blinks.
To edit numerical values, use the / / / keys.
In this example, input “1”, then press the
key.
8 The decimal point is displayed.
Press the / key to move the decimal point.
Determine the decimal point and then press the
key.
9 Press the key for two seconds to enter the RUN mode.
To Next Page
