Setting I/O
162
ZW-7000/5000
User's Manual
Assigning digital output
Set the measurement result for digital output.
This setting is applied to the OUT data of the Internal logging, Fieldbus (EtherCAT/Ethernet), and serial data.
Units for each setting values are as follows:
Measurement value: nm
Amount of emitted light: 0.01% (0.01 to 100.00%)
Amount of received light: Luminance level (0 to 4095)
Multi View Explore : [Bank] | [(Bank Data Name)] (double click)
→ Edit pane : [I/O Settings] icon ( )

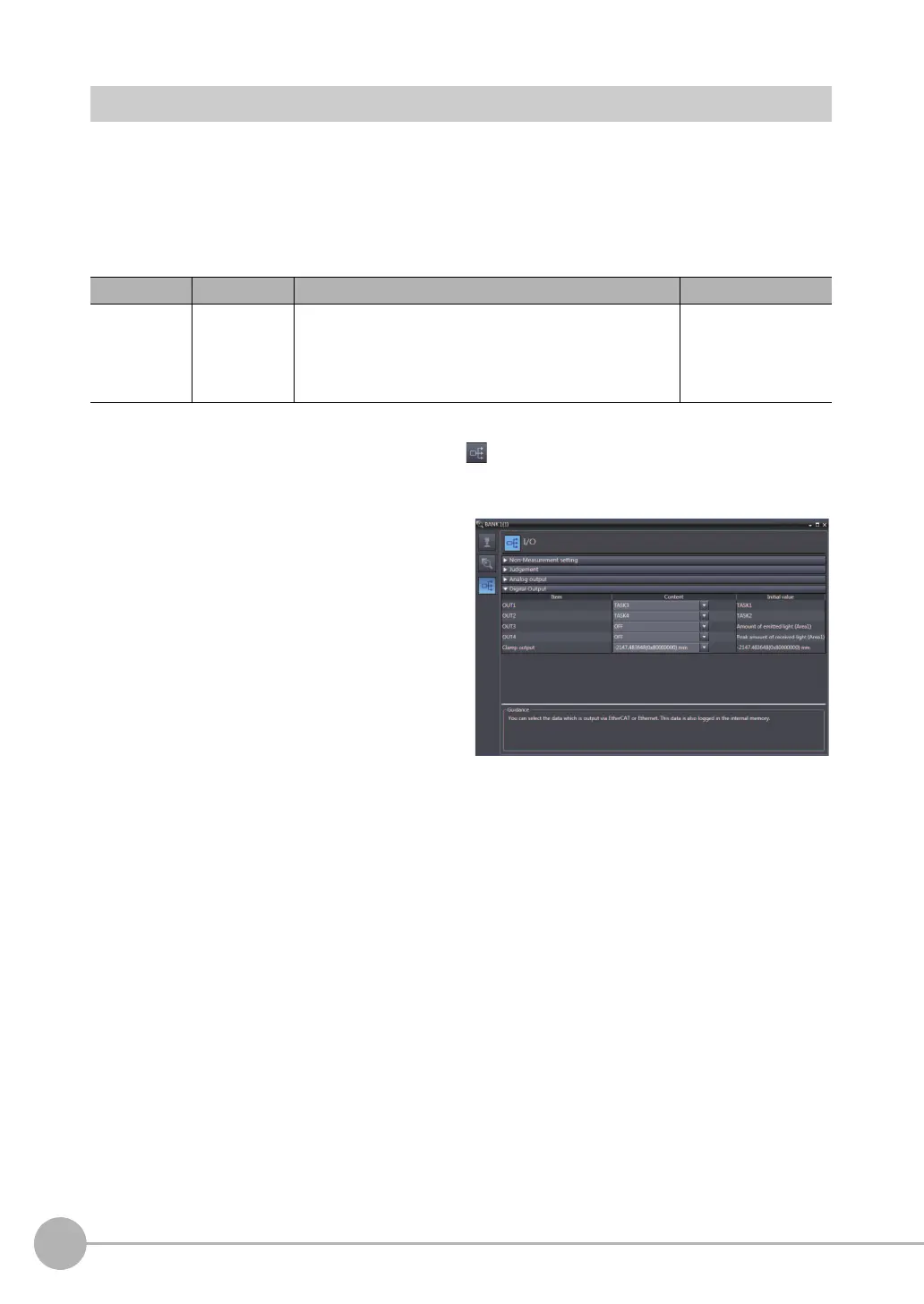

→ I/O Setting Screen : [Digital output]
Item Setting item Setting value Description
Digital output Output target*
(OUT *)
None/TASK1/TASK2/TASK3/TASK4/
Amount of emitted light(Area1)/
Peak amount of received light(Area1)/
Light power (Area 2)/Peak amount of received light (Area 2)/Incident
le
vel
(1st edge of Area 2)/Incident level (2nd edge of Area 2)/Incident
level (3rd edge of Area 2)/Incident level (4th edge of Area 2)
Set the Measurement
result f
or digital output.
1
Select the measurement value in [Output
target*(OUT*)].
To Next Page
