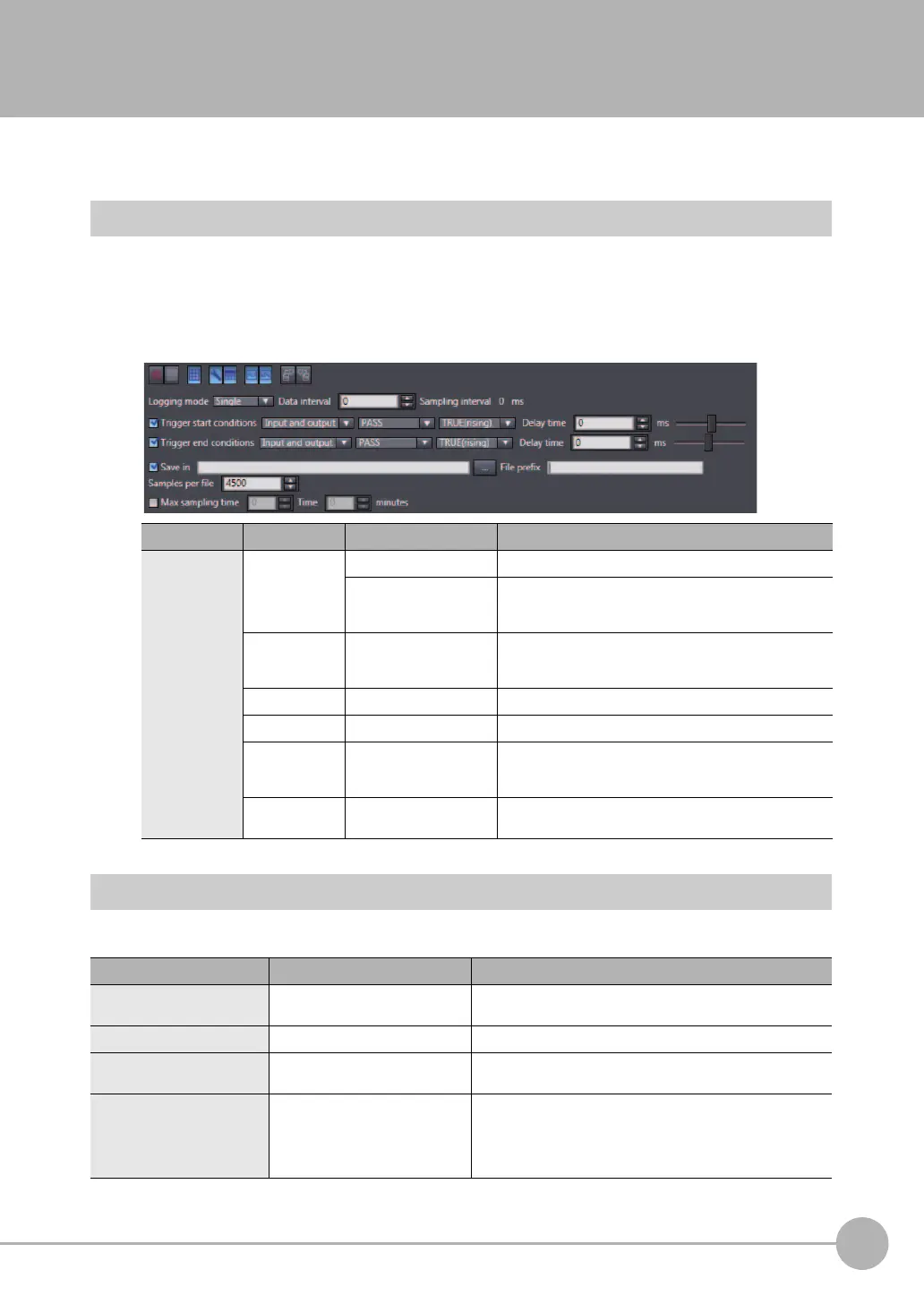

3-6 Saving measured values in a file
Data sampled with the trend monitor can be exported and imported as a CSV format file.
Outputting the results of sampling as a file
Sampled measured values can be saved as a CSV format file.
A file is prepared each time the trigger condition is met.
1 Check the checkbox for the save destination.
2 Set the save condition.
Exporting the results of sampling
Sampled measured values can be exported as a CSV format file.
Item Setting item Range Description
File settings Logging mode Single When the trigger end condition is met, sampling stops.
Continuous Sampling does not stop until you press the End button.
Each
time the trigger start condition is met, a new file is
prepared and saved.
Logging
sampling interv
al
(500µs/Measuring cycle-
1) to (100000µs/
Measuring cycle-1)
This sets the interval to save the file. If 1 is set, the file is
sa
ved in each cycle.
Save in − This is the folder to save the files in.
File prefix − This is the prefix for the name of the file saved.
Samples per file 100 to 10000000 This is the number of samples saved in one file. If more
samples than this set
number are taken, a new file is
prepared.
Max sampling
time
0:0 t
o 24:59 This indicates the upper limit on the interval for saving a file.
Item Output items Description
LoggingMode Single
Continuous
Indicates the sampling mode.
Single or continuous
LoggingInterval 0 to 65535 Indicates the sampling interval.
TriggerStart Tr ue
False
Indicates whether the trigger start condition is “Enabled” or
“Disabled”.
TriggerStartType IO
DataSlope
DataWindowIn
DataWindowOut
Indicates the trigger start condition.
IO: I/O result
DataSlope: Data slope
DataWindowIn: Data window (in)
DataWindowOut: Data window (out)
