Oracle FS1-2 Installation Guide

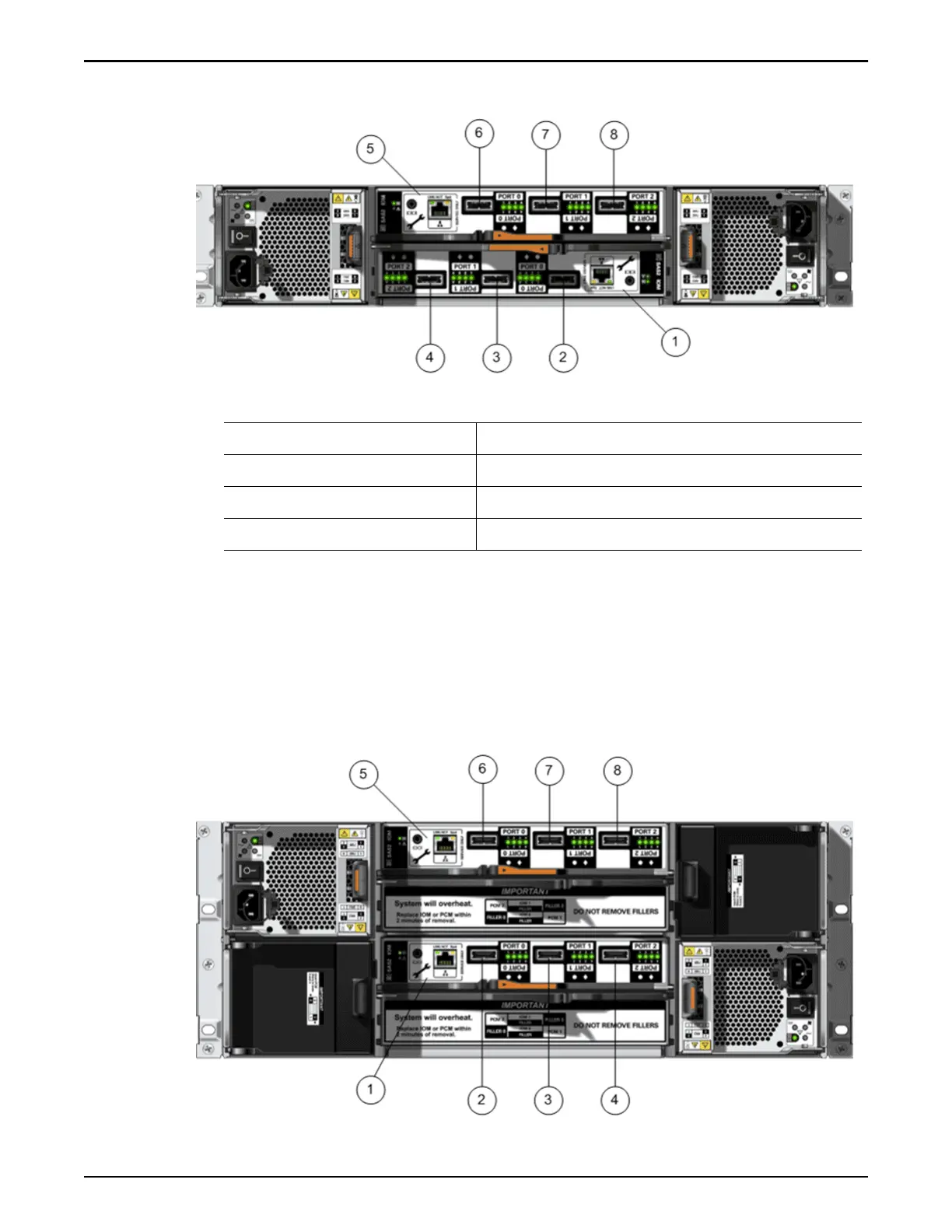

Figure 65: SAS ports for Drive Enclosure cabling (DE2-24P)
Legend
1 I/O module 0 5 I/O module 1
2 I/O module 0, SAS port 0 6 I/O module 1, SAS port 0
3 I/O module 0, SAS port 1 7 I/O module 1, SAS port 1
4 I/O module 0, SAS port 2 8 I/O module 1, SAS port 2
DE2-24C Drive Enclosures
The following gure shows the SAS ports of a DE2-24C Drive Enclosure. Note
the position of the SAS ports and the identical orientation of the two I/O
modules. Remember the orientation of the I/O modules and the location of the
SAS ports as you cable the system.
Figure 66: SAS ports for Drive Enclosure cabling (DE2-24C)
Oracle FS Systems: Cabling Overview
100
