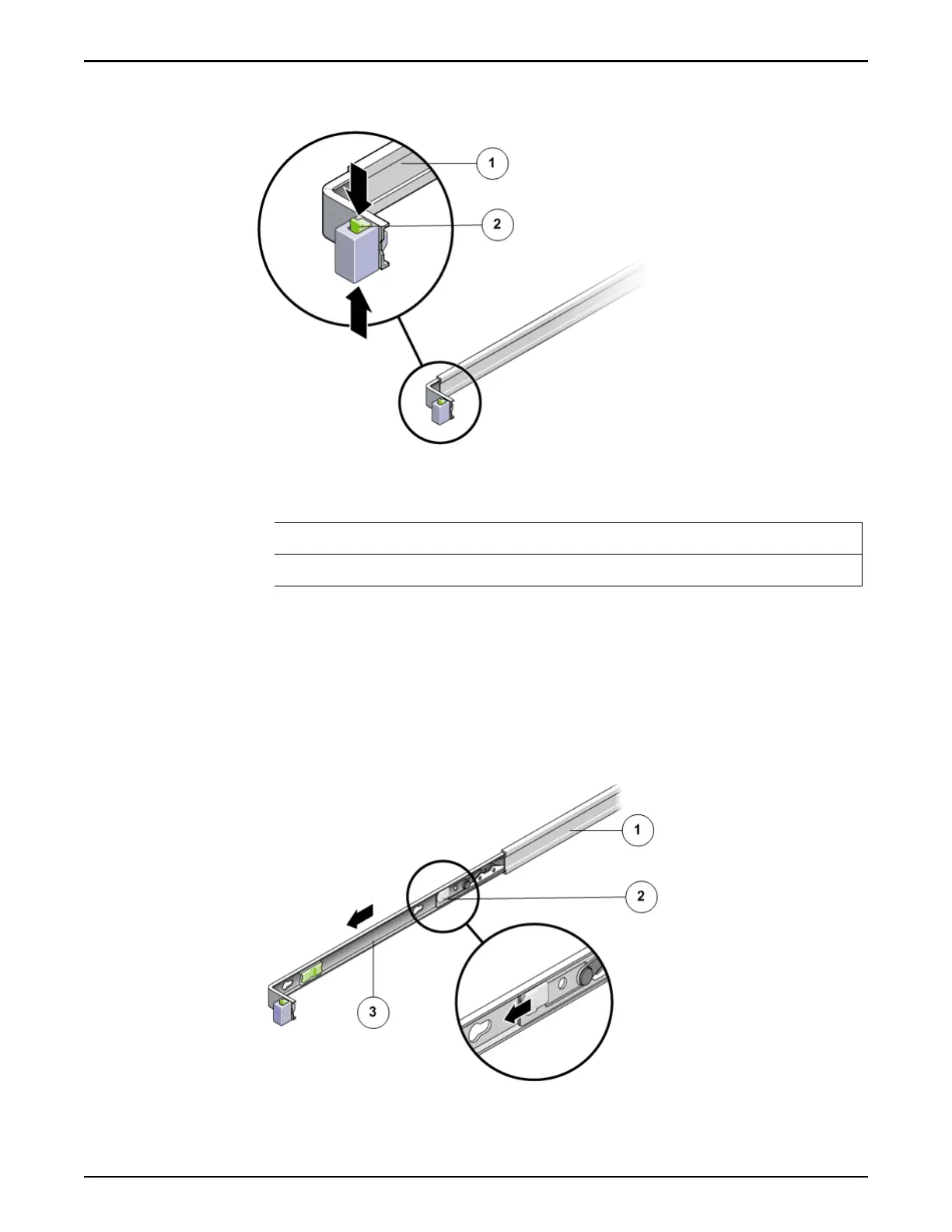

Figure 55: Controller slide rails unlocked
Legend
1 Slide rail assembly
2 Slide rail lock buon
2 Inspect the aached cables for any binding or kinks.
3 Verify that the CMA extends fully and does not bind in the slide rails.
4 When the Controller is fully extended out, release the mounting bracket
release buon.
Figure 56: Mounting bracket release button
Install Components into the Rack
88
