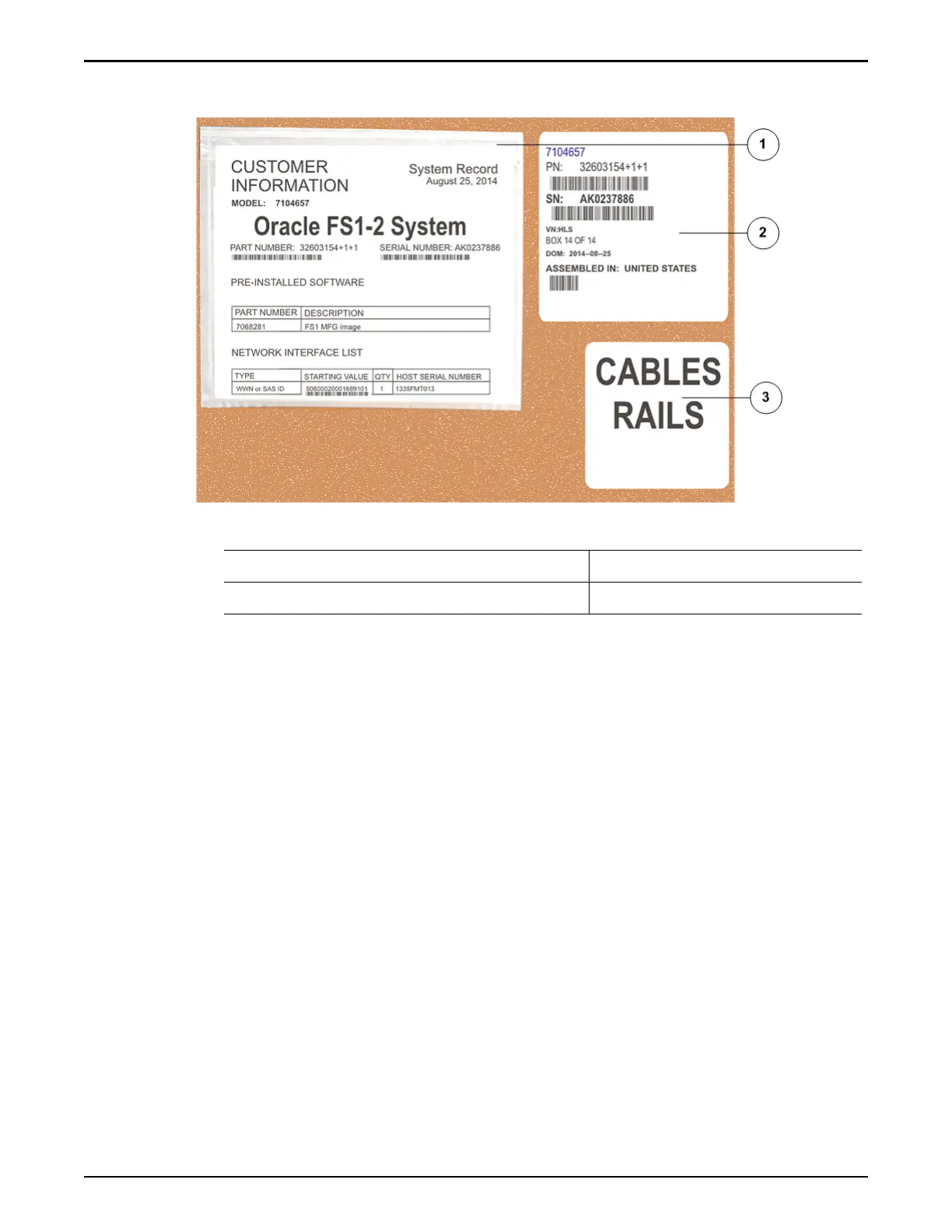

Figure 3: Shipping carton labels
Legend
1 Customer system record 3 Component label
2 Product label
Note: The graphic of the shipping carton labels is representative and there might
be slight variations in your packaging.
The customer system record lists all the components and replaceable units along
with their associated part numbers.
The product label includes the following information:
•
Top level Marketing number
•
Manufacturing part number
•
Top level serial Number
•
Site code (HLS)
•
Box count
•
Date of manufacturing
•
Country of origin
The component labels identify the component inside the shipping carton and the
sequence number of the component. For example, the Controllers are labeled as
“CU 1” and “CU 2”. The Pilots are labeled “PLT 1” and “PLT 2”. The Drive
Enclosures are labeled as “DE 1” “DE 2,” and so on. The Replication Engines are
labeled as “MAXREP 1”, “MAXREP 2”, “MAXREP 3”, or “MAXREP 4”. Power,
network, and labeled cables are shipped in an accessory box that is labeled as
