Note: The above example shows eight DE2–24P Drive Enclosures (2 RU), four
DE2–24C Drive Enclosures (4 RU), and two Replication Engines.
WWnN and System Serial Number Labels
The system serial number (SSN) labels and the Controller World Wide Node
Number (WWnN) labels are on the Oracle FS System to facilitate system
identication.

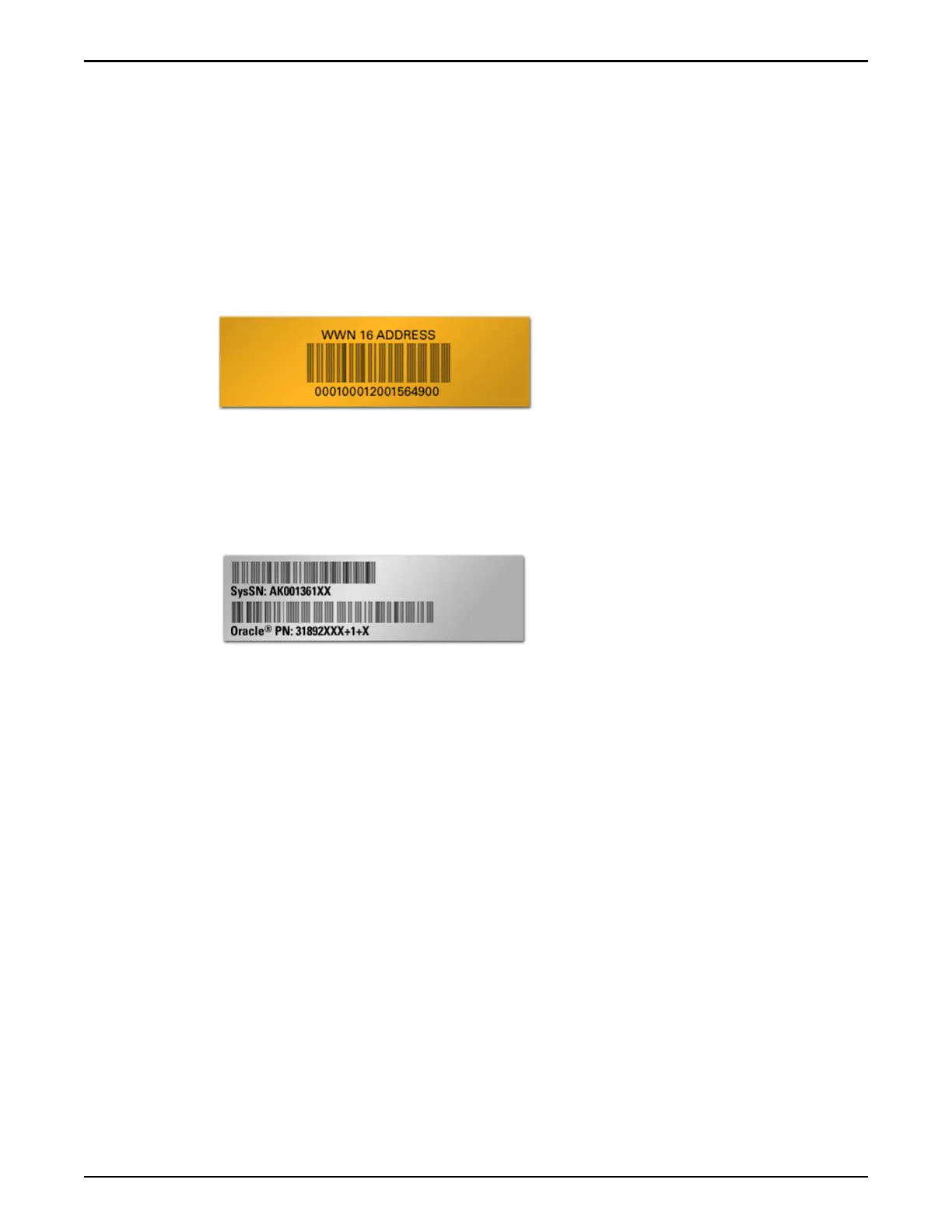

Figure 6: WWnN label
Following is a representation of the SSN label that contains the system serial
number and the Oracle part number of the Oracle FS System.
Figure 7: SSN label
Attach the WWnN and System Serial Number Labels
Carefully follow these instructions to ensure that all system labels are aached at
the recommended locations on the Oracle FS System components.
Important: Ensure that the bag containing the labels is not misplaced. Otherwise,
errors might result in the accurate identication of the Oracle FS System.
The rack labels, the system serial number (SSN) labels, and the Controller World
Wide Node Number (WWnN) labels are packaged and shipped in a bag inside
the carton for Pilot-1. Aach these labels at the recommended locations on the
Oracle FS System to facilitate system identication.
1 Aach one SSN label to the top left at the back of the rack.
Prepare for System Installation
41
