Legend
1 Back of the rack

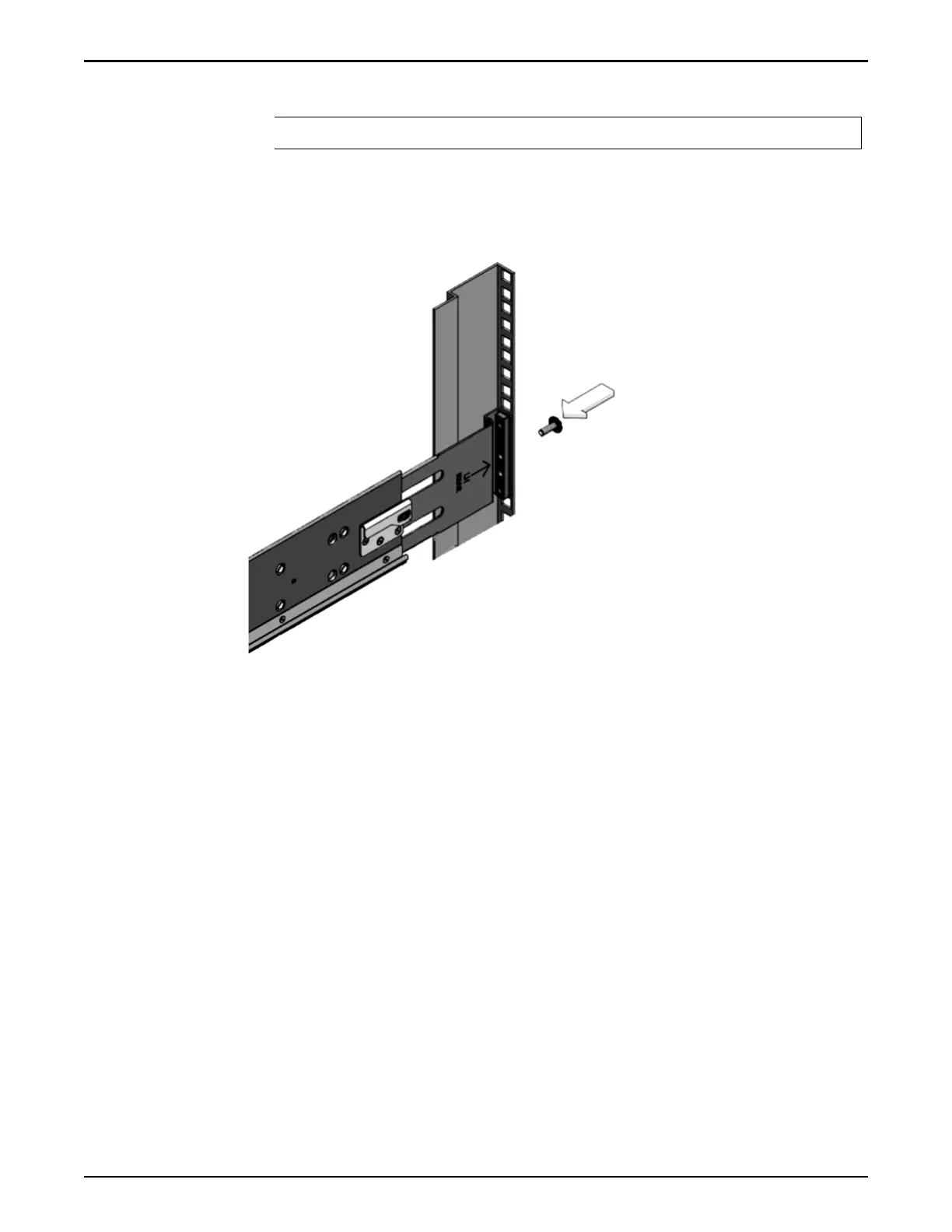

6 Insert and tighten one Phillips 13mm head hex ange screw into the back
of the rack and into the rail.
Figure 36: A Phillips 13mm head hex flange screw and the back of a rack
7 Repeat steps 1-6 to install the right-hand rail assembly.
Install Rails for DE2-24C Drive Enclosures
1 Locate the appropriate rack unit (RU) height.
The DE2-24C Drive Enclosure requires four standard rack units (4U) of
vertical space.
2 Remove the rails from the Drive Enclosure packaging.
3 If you are installing rails in a square-hole rack, snap one cage nut into the
eighth rack hole on both sides of the rack.
To locate the eighth rack hole, count eight holes upward from the boom
rail location peg.
The following gure shows a cage nut installed in a square-hole rack.
Install Component Rails
70
