three SAS HBAs installed per Controller, the arrangement of Drive Enclosures
within each string is the same as with a base system.

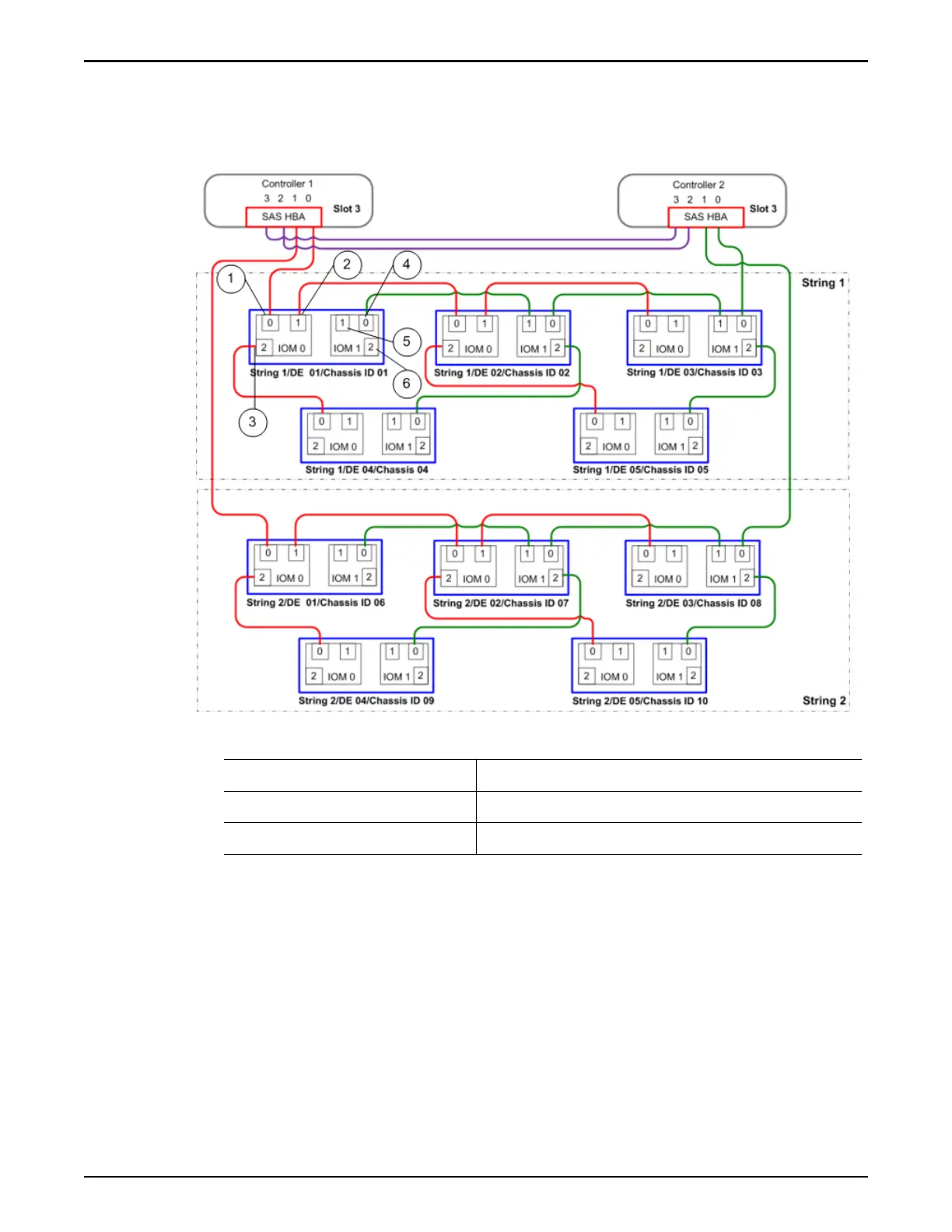

Figure 91: Example of two strings with five Drives Enclosures
Legend
1 I/O module 0, port 2 4 I/O module 1, port 1
2 I/O module 0, port 0 5 I/O module 1, port 0
3 I/O module 0, port 1 6 I/O module 1, port 2
