CMA with six pre-installed cable clips
•
Four M4 x 5 ne-pitch mounting bracket securing screws (optional)
•
Manufacturer's instruction sheet
Tip: Ensure that you have all of the parts in the Pilot rail kit before you begin the
installation of the Pilot rails on the rack and the Pilot chassis.
Note: To locate part numbers for the rail kits, open Oracle System Handbook
(hps://support.oracle.com/handbook_private/index.html) and go to the
Oracle FS1 Flash Storage System components list. Part numbers are listed in the
components list.
The following gure shows the parts in the Pilot rail kit.

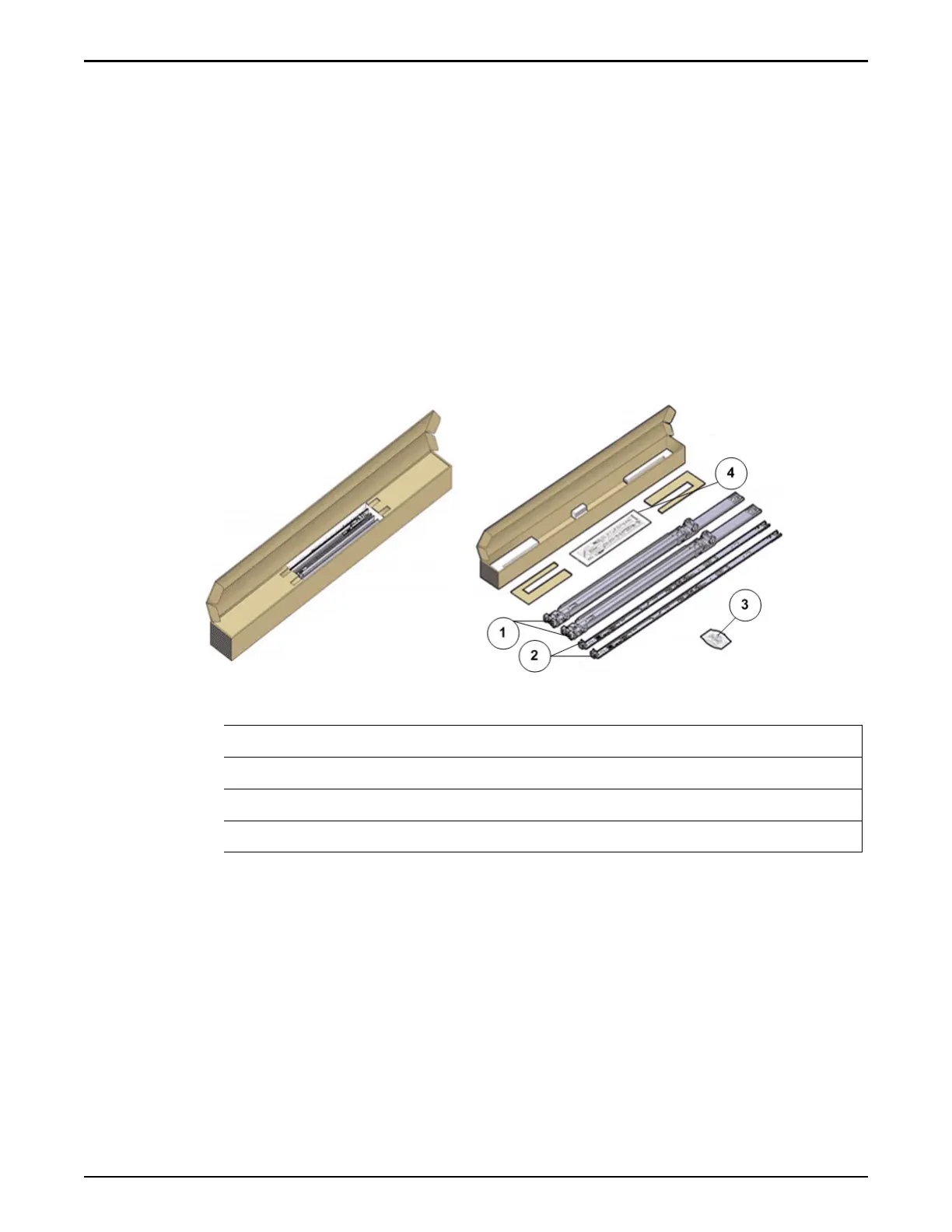

Figure 42: Pilot rail kit parts
Legend
1 Slide rails
2 Mounting brackets
3 Four M4 x 5 ne pitch mounting bracket securing screws (optional)
4 Installation card
Install the Rack Rails for the Pilot
Install the rack rails on the rack prior to installing the Pilot.
Prerequisite:
Ensure that you have adequate room to work around the rack while installing the
rails and the Pilot.
1 Place the rack-mount installation card against the front rails to identify the
correct mounting holes for the slide rails.
Install Component Rails
75
