Oracle FS1-2 Installation Guide

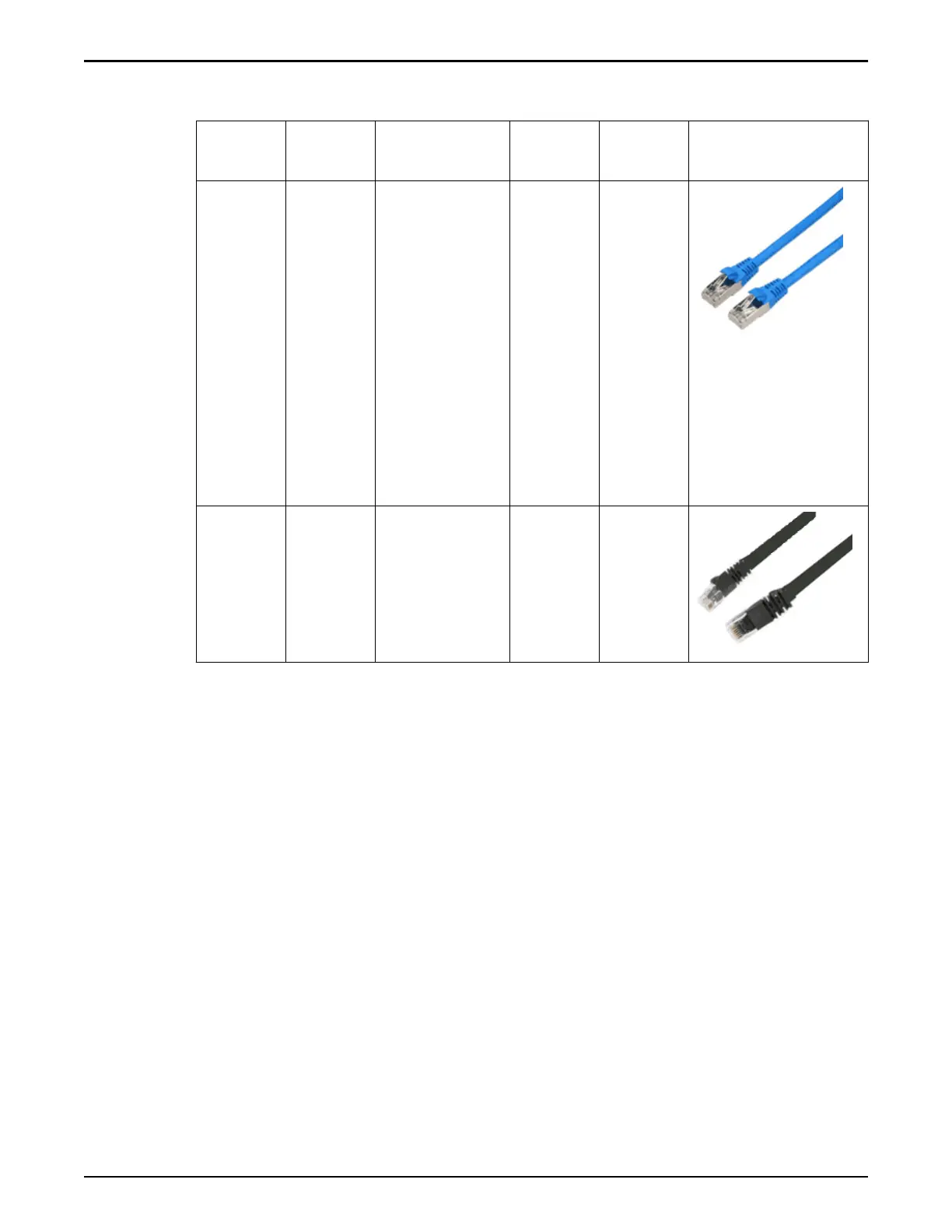

Table 27: Private management network cables
Cable Color Cable path Cable
length
Quantity Example
Ethernet
CAT6a
Blue Connects the
Pilot 1 NET 0
port to the Pilot
2 NET 0 port
Connects the
Pilot 1 NET 2
port to the Pilot
2 NET MGT
port
Connects the
Pilot 1 NET
MGT port to
the Pilot 2 NET
2 port
9.84 feet
(3 m)
Three
Serial
RJ45
rollover
Black Connects the
Pilot 1 SER
MGT port to
the Pilot 2 SER
MGT port
6.6 feet
(2 m)
One
Oracle FS System Cables
104
