CHAPTER 3
Install Component Rails
Install Component Rails
Install the rack rails on the rack at the designated rack unit (RU) locations and
the slide rails on the component chassis prior to inserting the components into
the rack.
Controller Rails
Adding Controllers in the rack requires you to install rack rails in the rack and
slide rails on the chassis for each Controller that you plan to add.
Controller rail kits can be installed in the Sun
â„¢
Rack 900, the Sun Rack 1000, and
third-party ANSI/EIA 310-D-1992 or IEC 60927 compliant racks with the
following types of holes:
•
Square
•
Round
•
Threaded

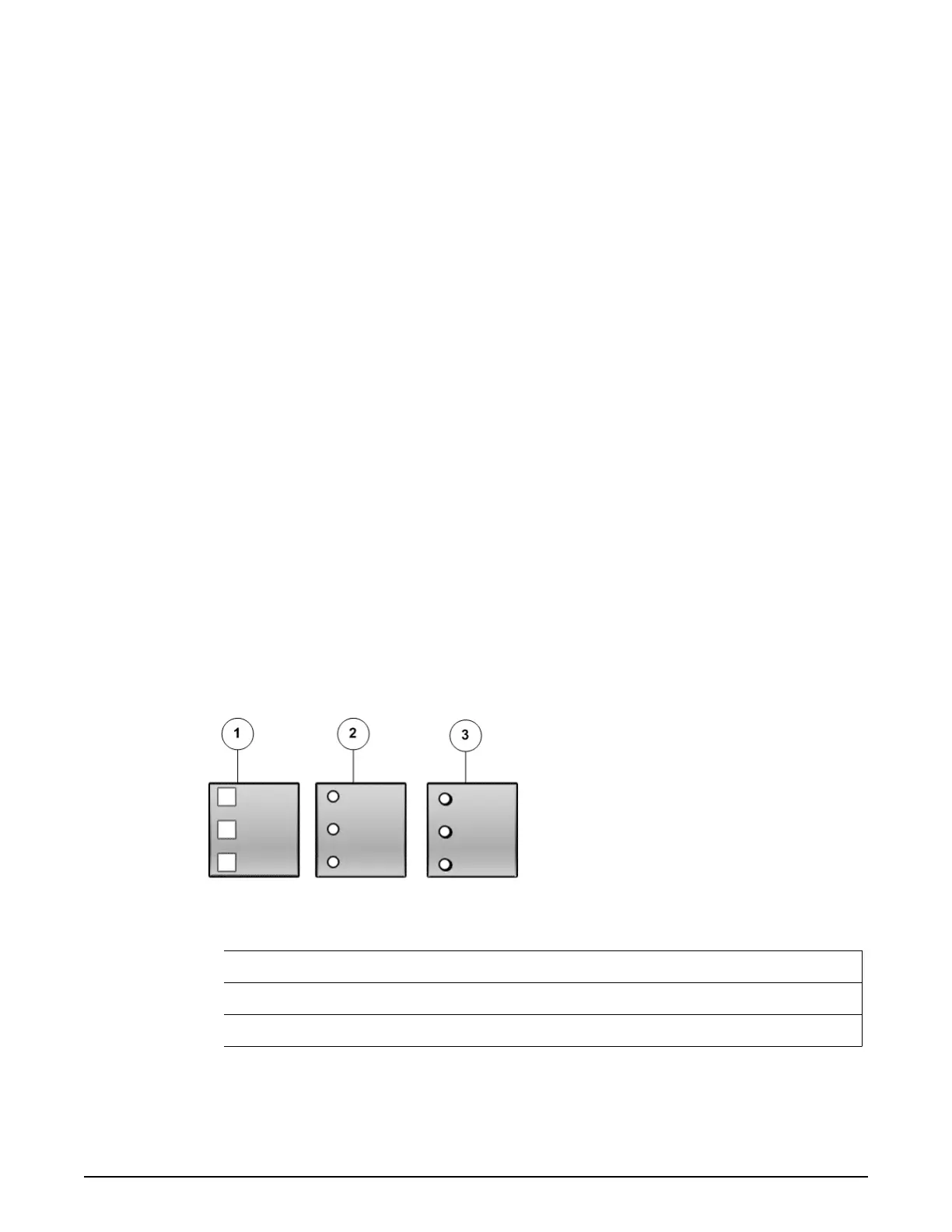

Figure 12: Examples of supported rack holes
Legend
1 Square holes
2 Round holes
3 Threaded holes
Caution: Oracle recommends that you install each Controller after you install the
rail kit before installing the next combination of rail kit and Controller. Installing
all of the rail kits and then inserting the Controllers is not always possible
46
