Legend
1 Slide rail
2 Mounting bracket release buon
3 Mounting bracket
5 Slide the Controller back into the rack.
6 Simultaneously unlock both slide rail release buons, and push the
Controller completely into the rack.

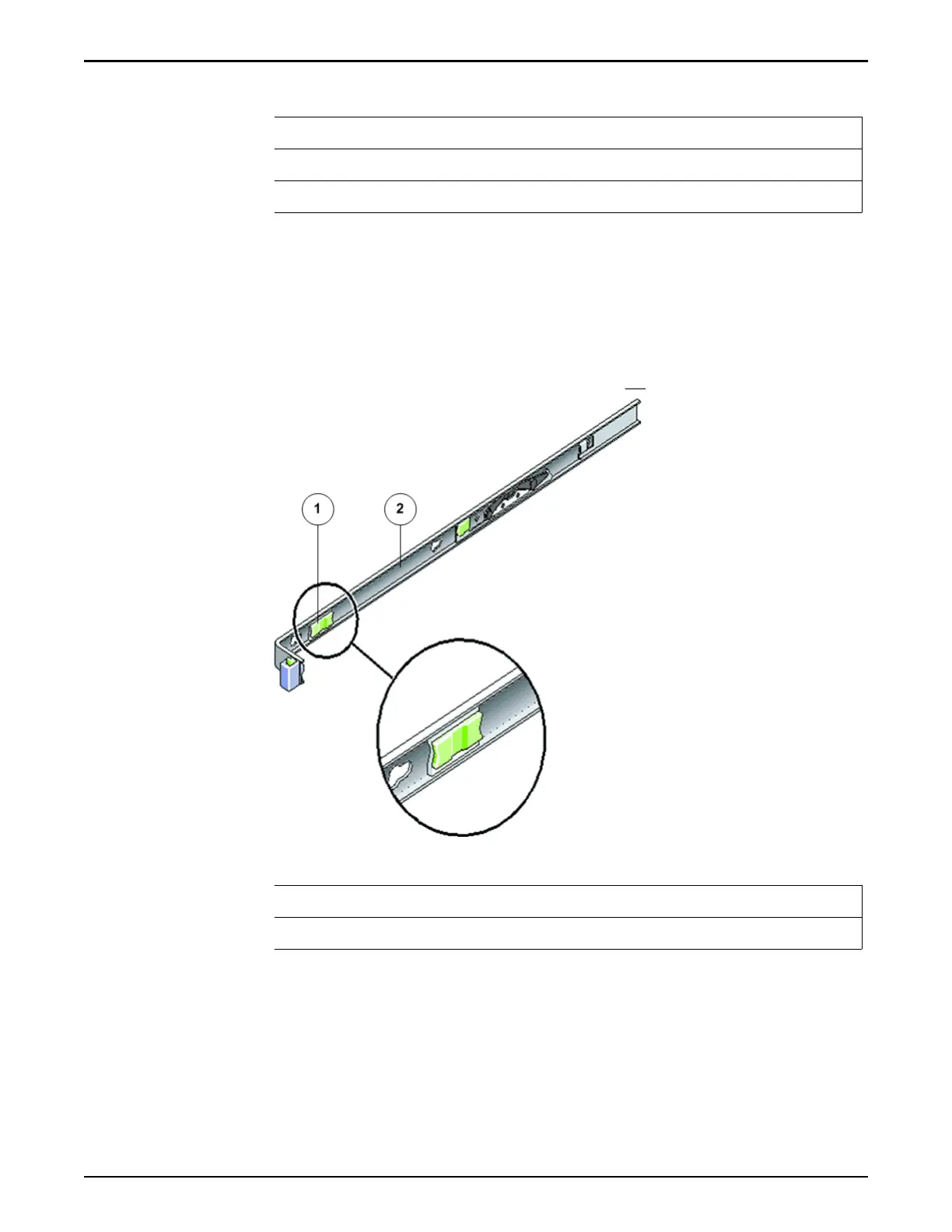

Figure 57: Slide rail release button
Legend
1 Slide rail release buon
2 Slide rail
Note: The Controller should stop after approximately 15 inches (40 cm) of
travel.
7 Verify that the cables and the CMA retracted without binding.
8 Adjust the cable hangers and CMA as required.
Install Components into the Rack
89
