Caution: Do not use the power supply handles to lift the chassis. Using the
power supply handles to lift the chassis can damage the power cooling
modules and disrupt electrical power to the Drive Enclosure.
2 Carefully slide the Drive Enclosure into the rack.
The DE2-24C Drive Enclosure rails have a ledge along the boom of the
rail to allow you to slide the Drive Enclosure into the rack. To verify that
the Drive Enclosure is seated correctly in the rails, ensure that the boom
edges on both sides of the Drive Enclosure slide along the left and right rail
ledges.

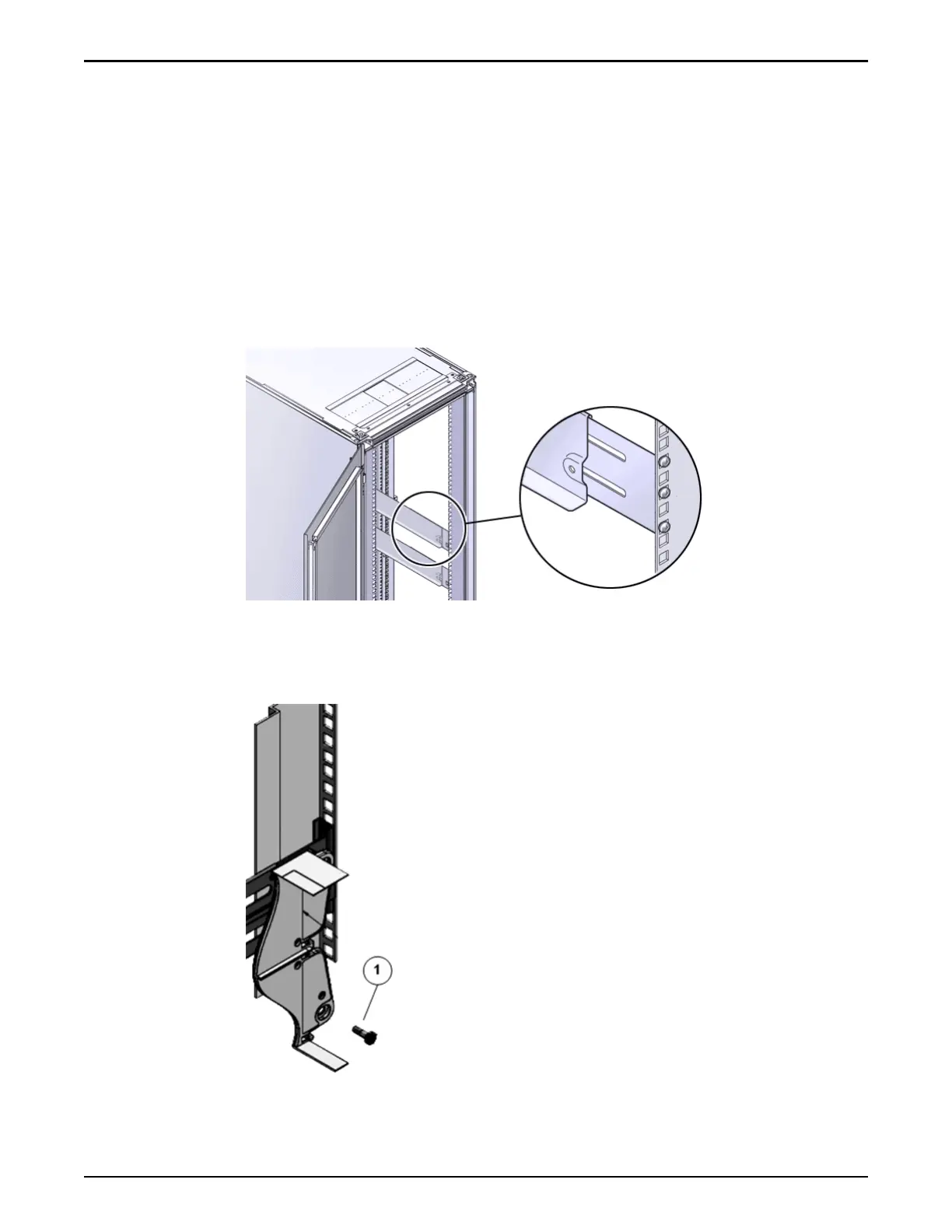

Figure 49: The rail ledge for the DE2-24C Drive Enclosure
3 At the back of the chassis, insert and fully tighten a Phillips Number 2 pan
head screw with patch lock into the side of the rail.
Figure 50: Phillips Number 2 pan head screw with patch lock
Install Components into the Rack
82
