Controller Wiring Diagrams
The following gure illustrates the cabling of the Controller management
interface.
Note: The colors of the cables that are shown in the gure are for illustration
purposes and do not reect the actual colors of the cables that are used to cable
the Oracle FS System.

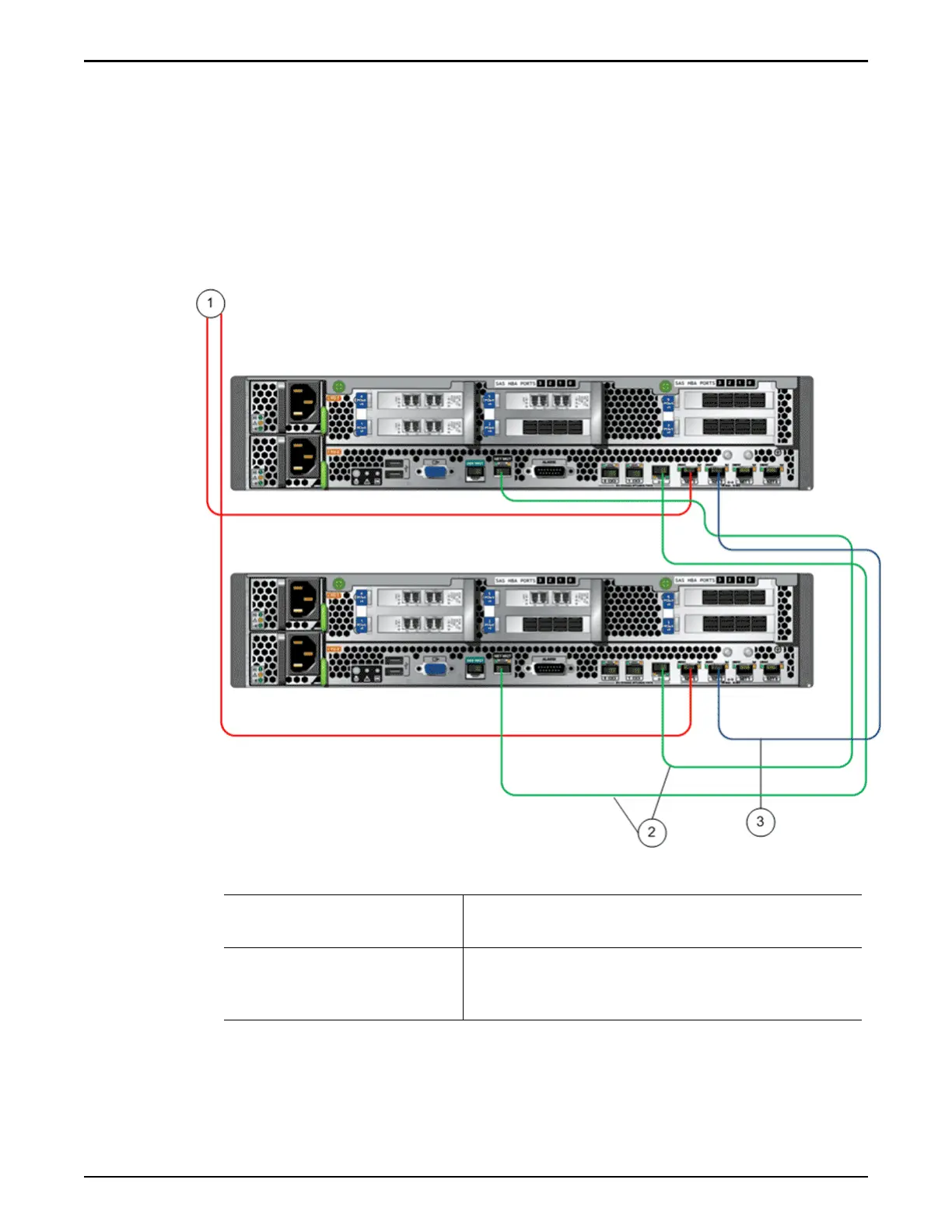

Figure 80: Controller wiring diagram (management connectivity)
Legend
1 NET 3 port to the Pilot
NET 1 port
3 NET 2 port to NET 2 port
2 Cluster interconnect
network port (labeled as <- -
- >) to NET MGT port
The following gure illustrates the cabling for SAN connectivity to the customer
data network.
Wiring Diagrams
125
