The following gure shows an example of routing a cable from a Controller to a
Drive Enclosure, both of which are located in the same rack.

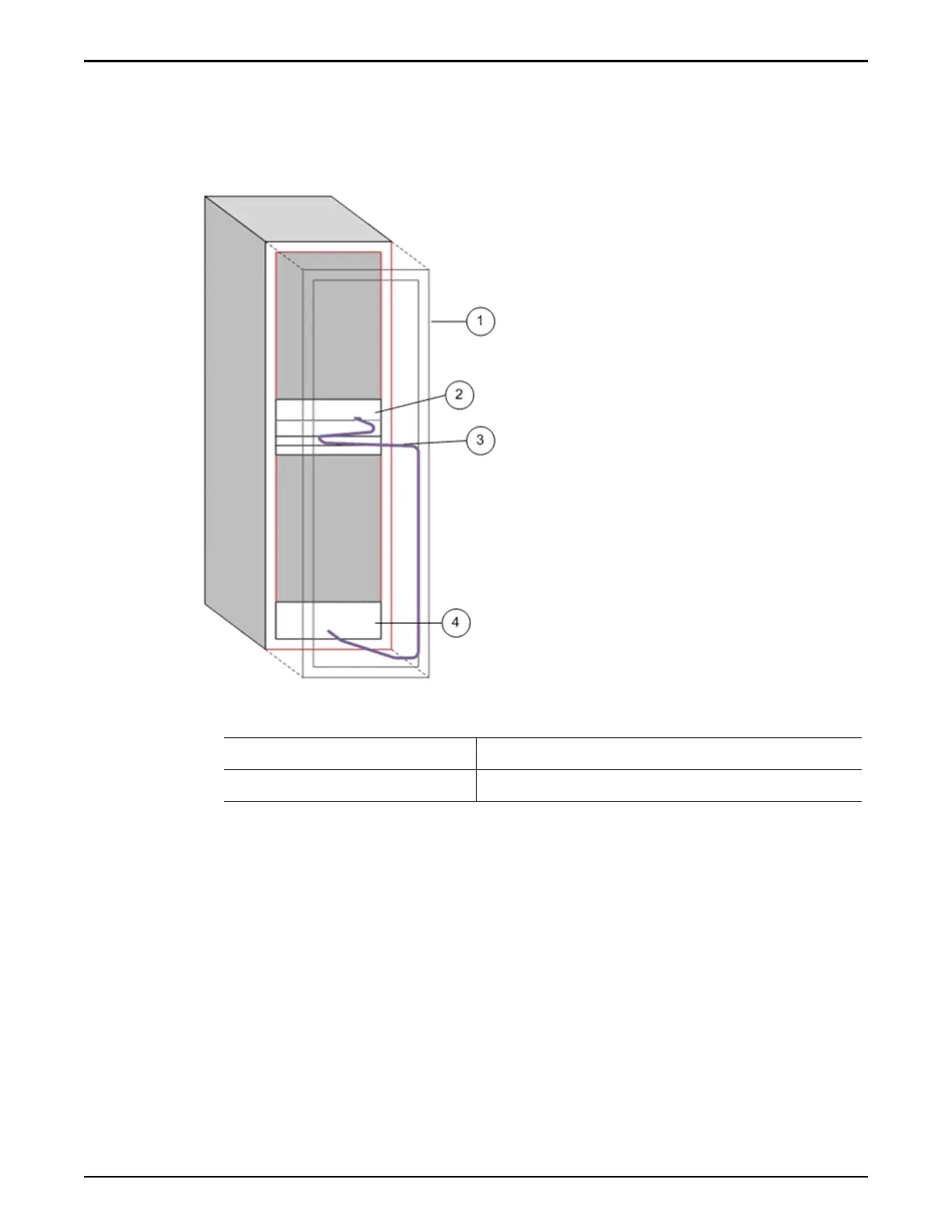

Figure 74: Routing a cable same rack (Controller to Drive Enclosure)
Legend
1 Back of a rack 3 CMA
2 Controller 4 Drive Enclosure
If there is excess length after routing and connecting the SAS cables, use one of
the following methods to manage the excess cable length:
•
Spool the excess cable length at the boom of the rack and slide the cable
between the rack rail and the side panel. Use an anchor point that is not a
FRU, CRU, or another cable.
•
Identify an open space between the rack rail and the side panel and spool
the excess cable length so that it can occupy the open space. Use an anchor
point that is not a FRU, CRU, or another cable.
Oracle FS System Cables
114
