Oracle FS1-2 Installation Guide

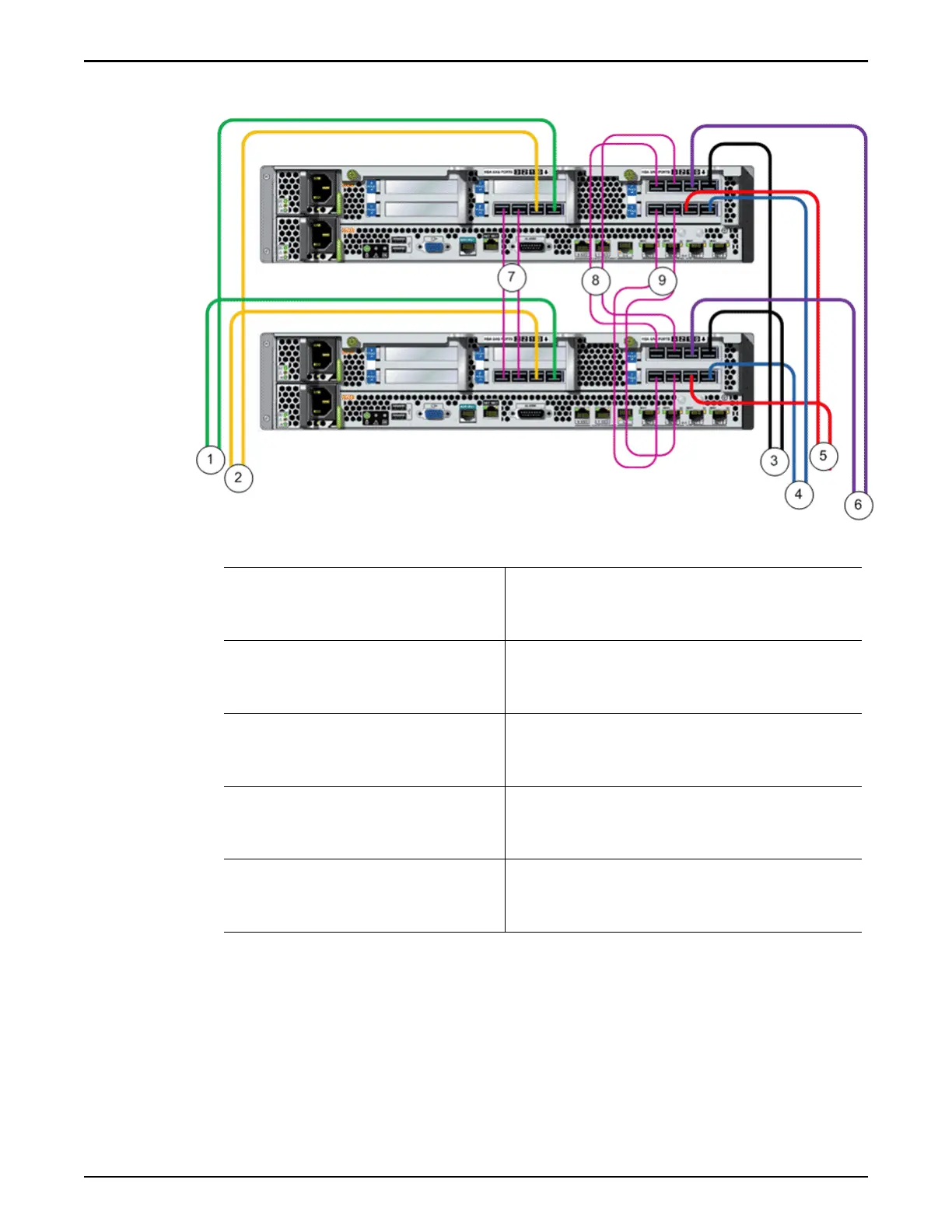

Figure 84: SAS wiring diagram for Controllers to Drive Enclosures (performance)
Legend
1 PCIe3 slot 2, SAS HBAs port 0
connects to Drive Enclosure string
3
6 PCIe3 slot 6, SAS HBAs port 1 connects to
Drive Enclosure string 5
2 PCIe3 slot 2, SAS HBAs port 1
connects to Drive Enclosure string
6
7 PCIe3 slot 2, SAS HBAs port 2 and port 3
connect the Controllers
3 PCIe3 slot 6, SAS HBAs port 0
connects to Drive Enclosure string
2
8 PCIe3 slot 6, SAS HBAs port 2 and port 3
connect the Controllers
4 PCIe3 slot 3, SAS HBAs port 0
connects to Drive Enclosure string
1
9 PCIe3 slot 3, SAS HBAs port 2 and port 3
connect the Controllers
5 PCIe3 slot 3, SAS HBAs port 1
connects to Drive Enclosure string
4
Wiring Diagrams
129
