Connect the Power Cords to the PDUs
Engineering the power distribution unit (PDU) connections are the responsibility
of the customer for not-racked systems. Also, component power cords must be
installed into the component power supplies.
Caution: Do not connect the power distribution units (PDUs) to the external
power until all the internal cabling and power connections are complete. Failure
to observe may cause serious system malfunction.
The C13 to C14 left-angled power cords used to connect Oracle FS System
components to power distribution units (PDUs) are designed to keep the power
cords snug against the PDU and to enable maximum access to the Oracle FS
System components.
The Controller power cords are routed through the Controller cable management
arms (CMAs), one for each Controller. Route the power supply (PS–1) to one
source of external power and the power supply (PS–0) to another.
The Pilot power cords are routed through the Pilot CMAs, one for each Pilot.

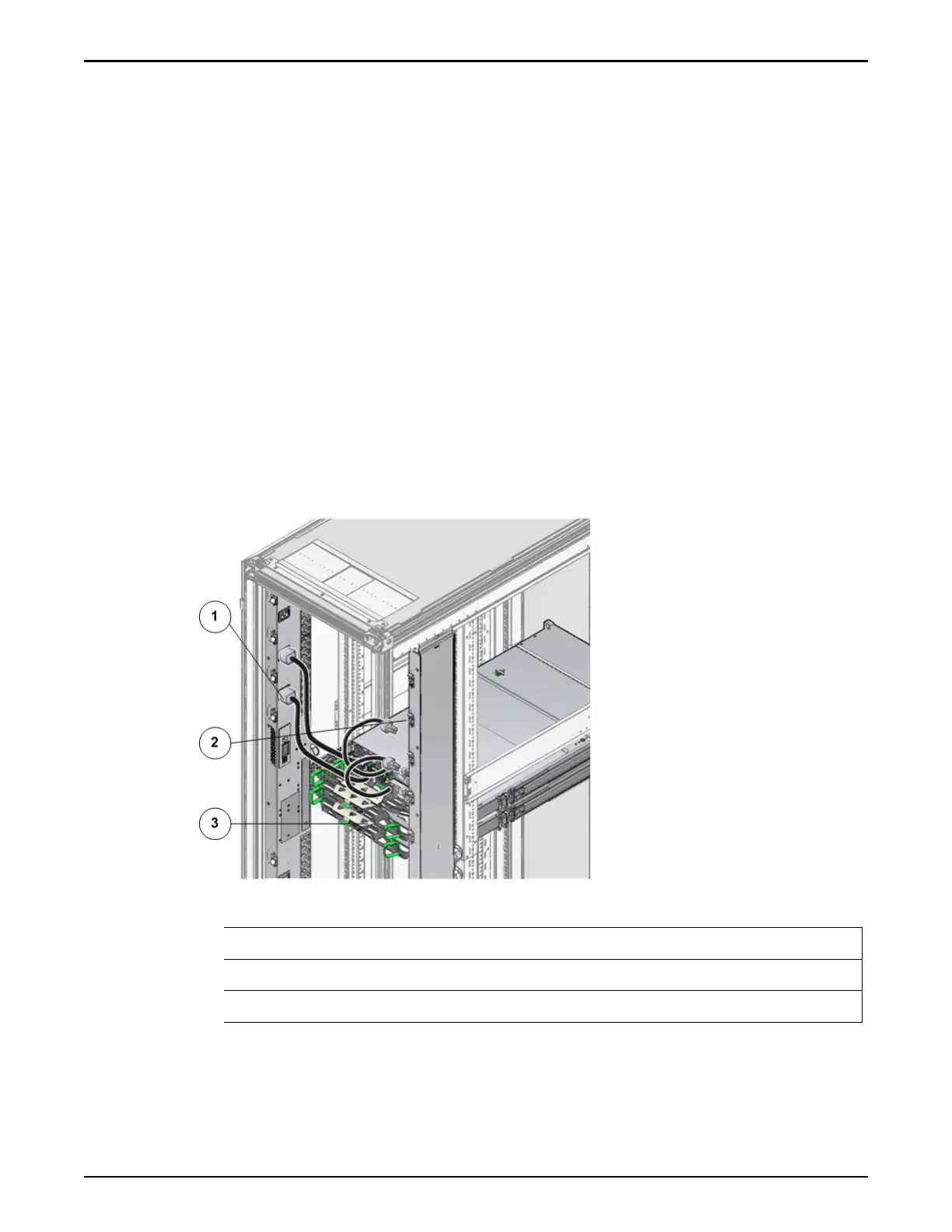

Figure 92: Power cords on the Pilot
Legend
1 Pilot power cords plugged into left PDU
2 Pilot power cords plugged into right PDU
3 CMA
The power cords for the Drive Enclosures are routed directly to the PDU outlets
without the use of CMAs. Any excess cable is fastened to the outside of the
vertical rail that is nearest to the power cooling module of the Drive Enclosure.
System Power
152
