The following gure shows an example of mini-SAS to mini-SAS HD cable
connectors. The mini-SAS connector on one end of the cable connects to the
Drive Enclosure. The mini-SAS HD connector on the other end of the cable
connects to the Controller.

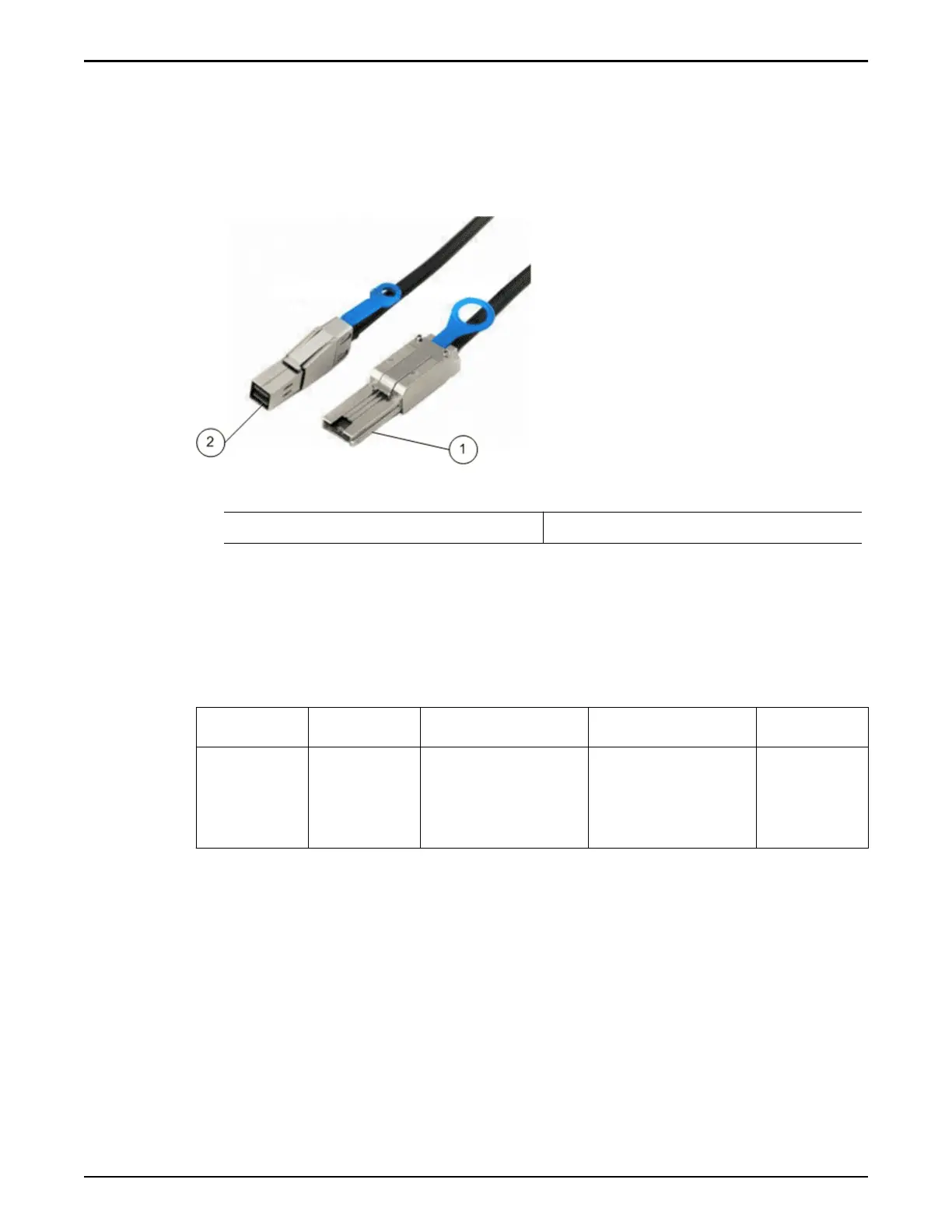

Figure 68: Example of mini-SAS to mini-SAS HD cable connectors
Legend
1 Mini-SAS connector 2 Mini-SAS HD connector
SAS Cables for Drive Enclosure-to-Drive Enclosure Connections
The following table lists the types of mini-SAS cables and the lengths used to
cross connect Drive Enclosures.
Table 30: Mini-SAS to mini-SAS cables
Cable Color Cable path Quantity Cable length
Mini-SAS to
mini-SAS
Black Connects a Drive
Enclosure to
another Drive
Enclosure
Varies based on the
conguration of the
system
9.84 feet
(3 m)
The following gure shows an example of mini-SAS to mini-SAS cable
connectors.
Oracle FS System Cables
107
