Legend
1 Outer CMA connector
2 Slide rail
4 Fully insert the hinged plastic connector at the left side of the CMA into the
CMA rail extension.

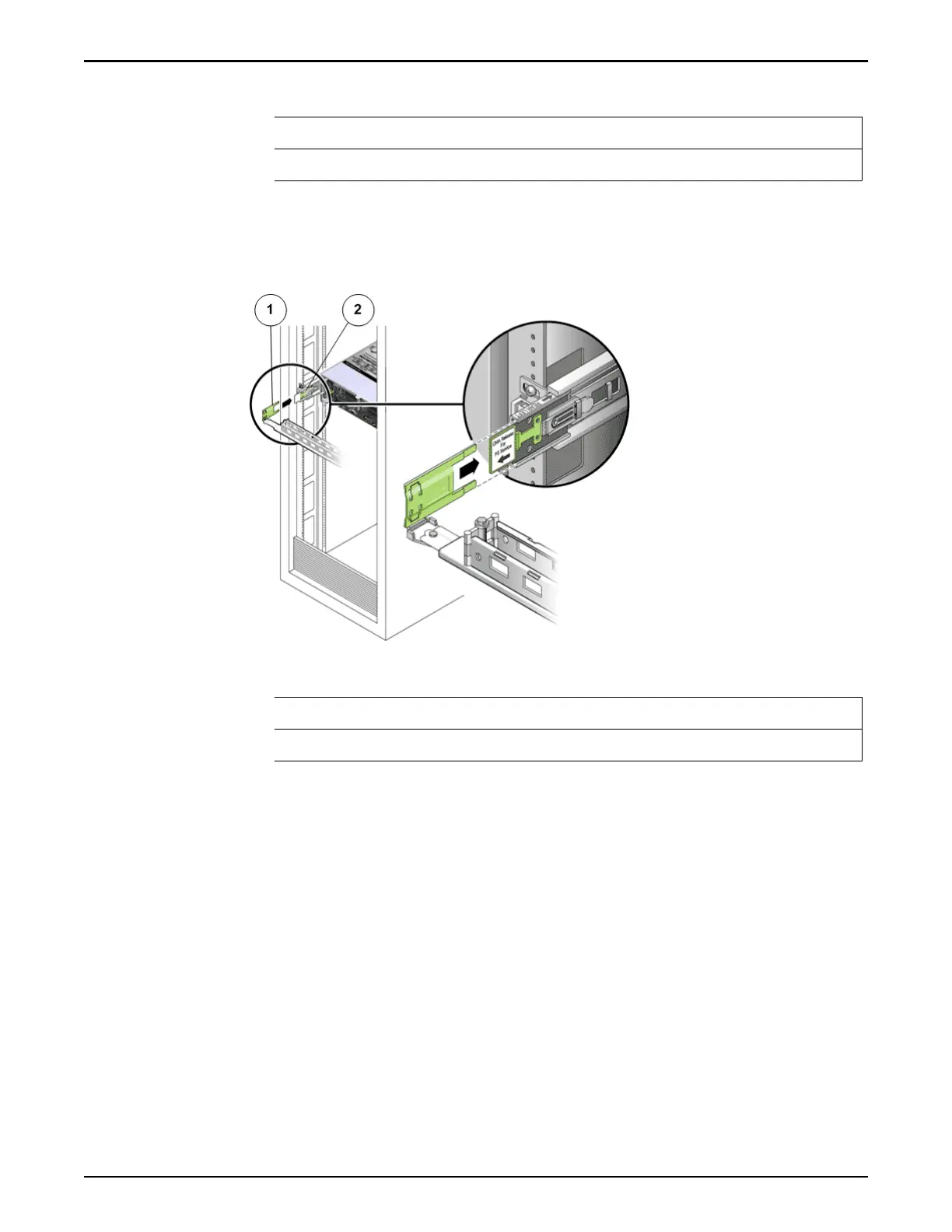

Figure 26: Left side of the slide rail mounted
Legend
1 Plastic tab on CMA rail extension
2 Slide rail
Drive Enclosure Rails
To prepare a rack for adding Drive Enclosures to the Oracle Flash Storage
System, you must install rails in the rack for each Drive Enclosure that you plan
to add. Oracle includes rail kits in the Drive Enclosure packaging.
Use one of the following racks for the Drive Enclosure:
•
Sun Rack II 1042/1242 rack
•
Any 19-inch wide, four-post, EIA-compatible rack with a front-to-back
depth between vertical cabinet rails of 24 inches to 36 inches (61 cm to 91
cm)
Drive Enclosures rail kits can be installed in racks with the following types of
holes:
•
Square
Install Component Rails
60
