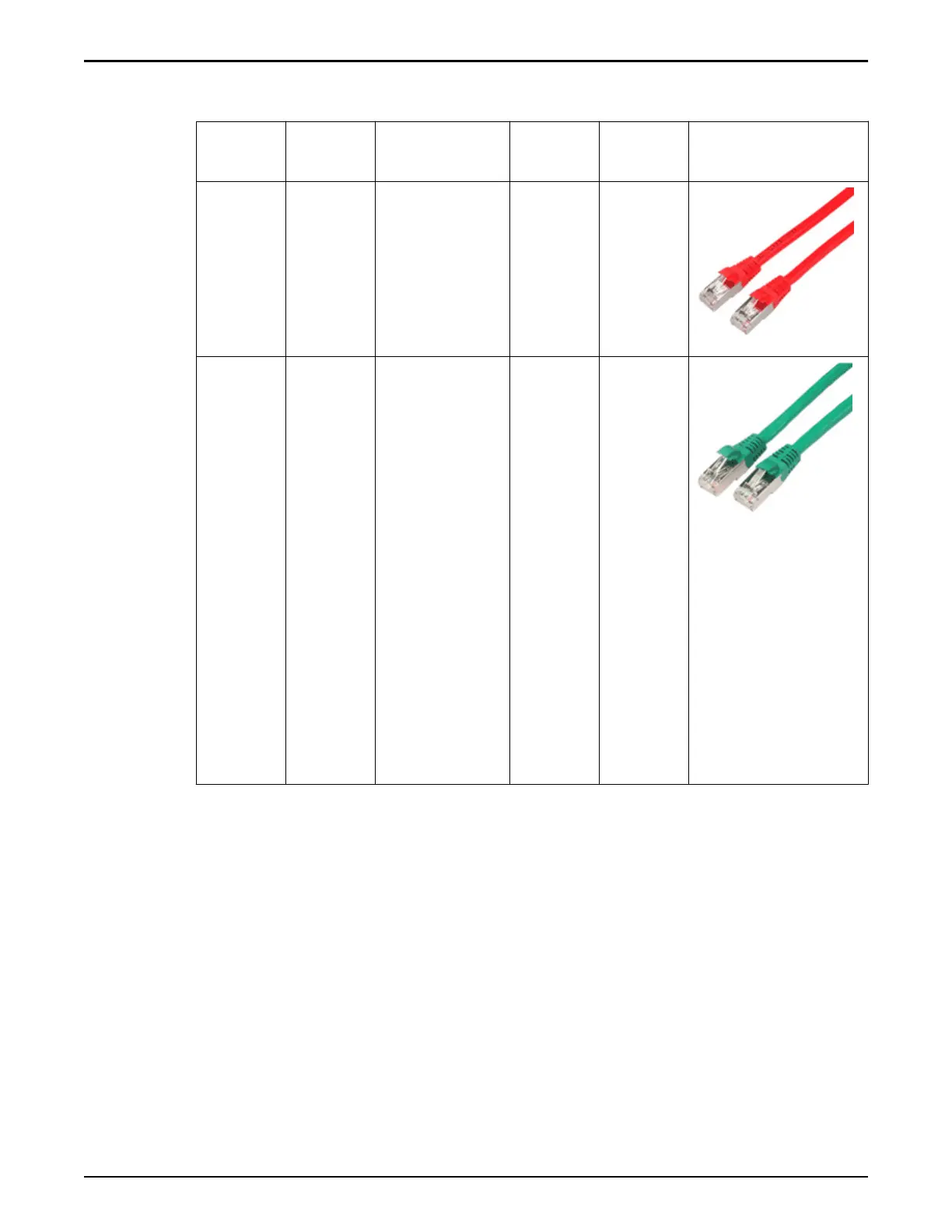

Table 27: Private management network cables (continued)
Cable Color Cable path Cable
length
Quantity Example
Ethernet
CAT6a
Red Connects the
NET 1 ports of
the Pilots to the
NET 3 ports of
the Controllers
9.84 feet
(3 m)
Two
Ethernet
CAT6a
Green Connects the
Controller 1
NET 2 port to
the Controller 2
NET 2 port
Connects the
Controller 1
NET MGT port
to the cluster
interconnect
(< - - - >) port
of Controller 2
Connects the
cluster
interconnect (<-
- ->) port of
Controller 1 to
the Controller 2
NET MGT port
9.84 feet
(3 m)
Three
SAS Cables for Connecting the Controllers
The following table lists the type of mini-SAS high density (HD) cable and cable
length used to cross-connect the Controllers.
Oracle FS System Cables
105
