PIAGGIO Beverly 300 i.e. - HV Coil Connector; Fuel Level Transmitter Connector; Coolant Temperature Sensor Connector

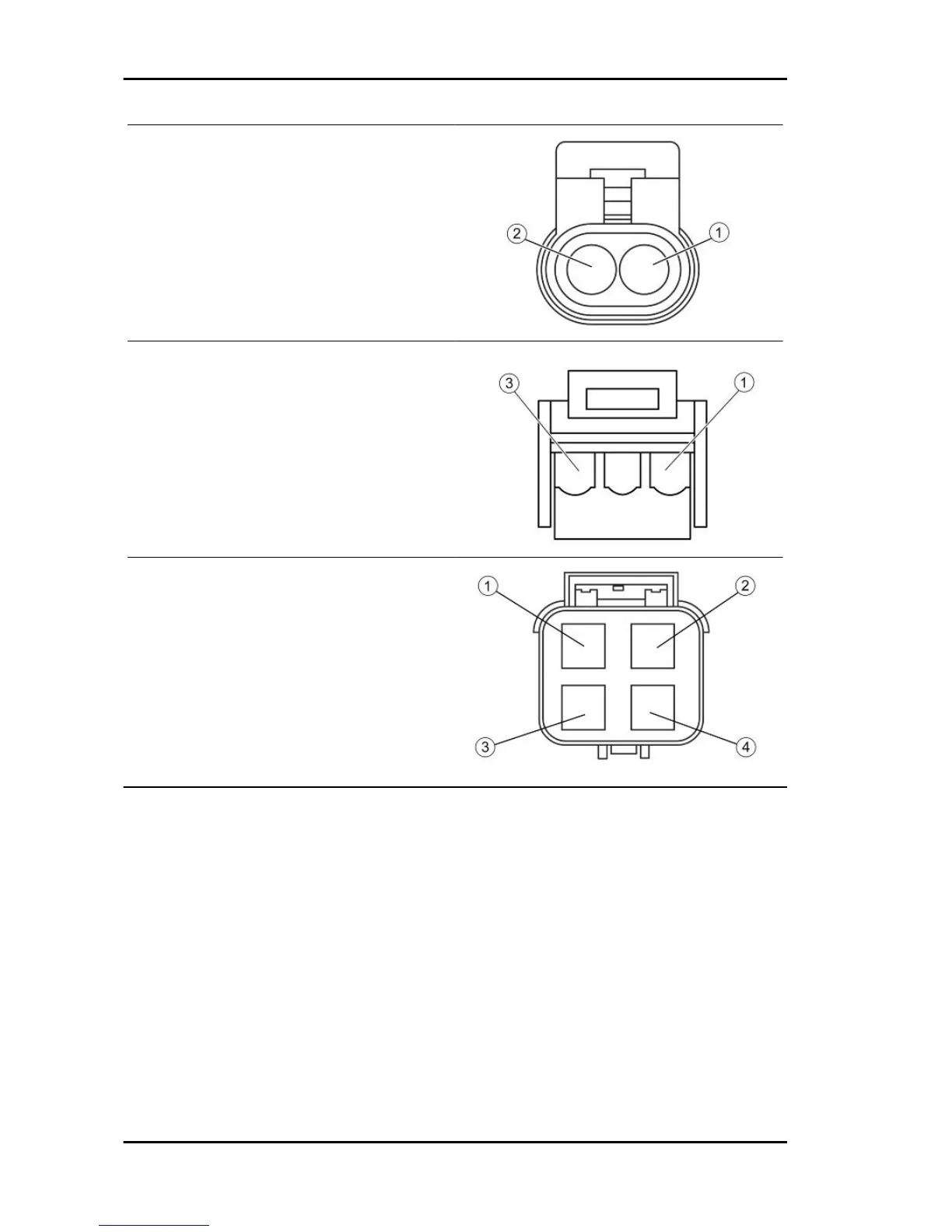

HV COIL CONNECTOR
1. Negative from control unit (Red-Black)
2. Power from relay (Black-Green)
FUEL LEVEL TRANSMITTER CONNECTOR
1. Low fuel warning light (Grey-Black)
2. Ground lead (Black)
3. Fuel level indicator (White-Green)
COOLANT TEMPERATURE SENSOR CON-
NECTOR
1. Ground lead (Grey-Green)
2.Instrument panel (Green-Yellow)
3. Injection ECU (Sky blue-Green)
4. Ground lead (Black)
Electrical system Beverly 300 i.e.
ELE SYS - 100
