Given that the TPS resetting is also done when the
control unit is replaced, place the control unit - filter
box bellows at 45° during the refitting operation as
shown in the picture.

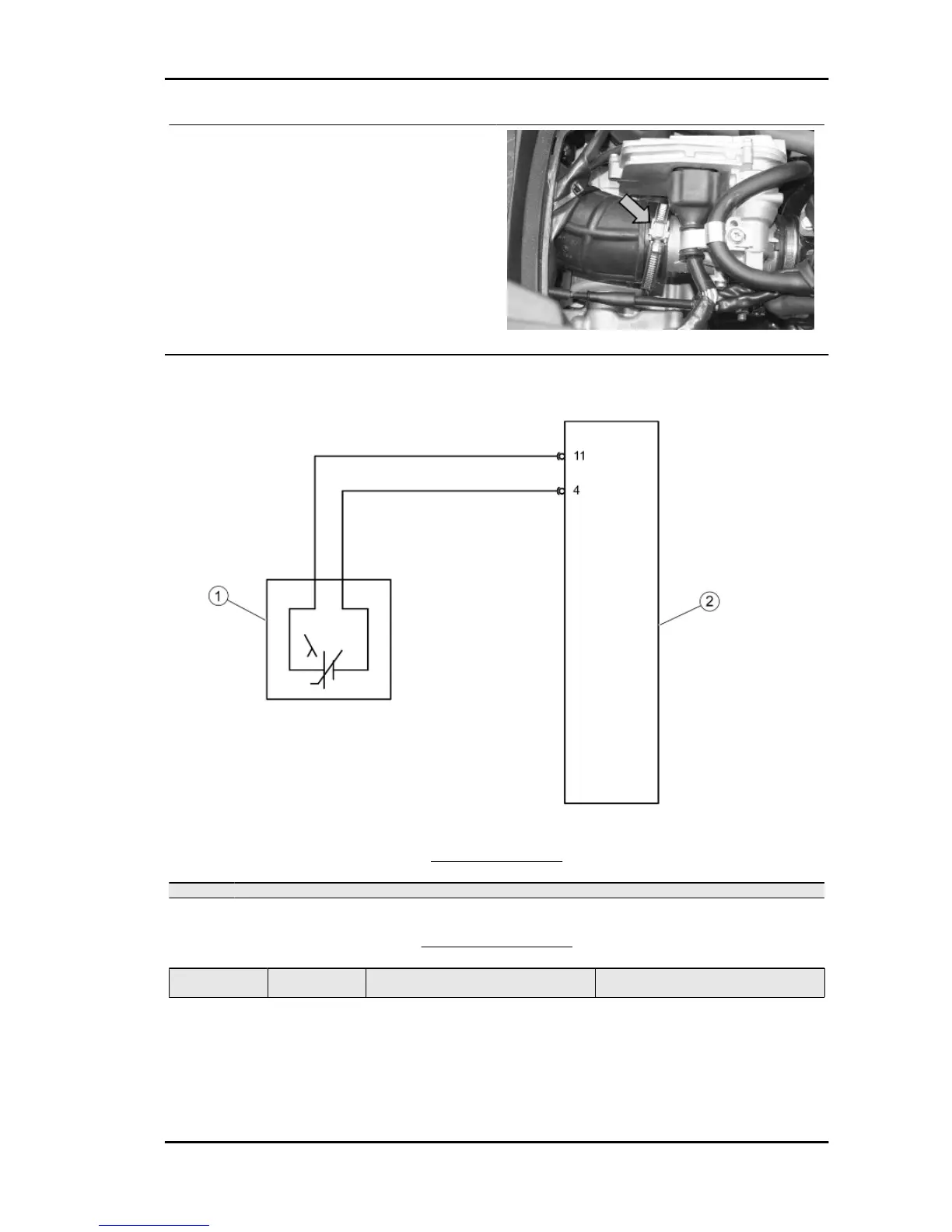

Lambda probe
LAMBDA PROBE
Specification
Desc./Quantity
1 Lambda sensor
2 Injection ECU
PIN RELATIONSHIP
PIN
PIN Component Reference value
4 11 Lambda probe ~ 0V with throttle valve closed; ~ 1V with
throttle valve fully opened
The Lambda probe or oxygen sensor is a sensor which provides indications concerning the oxygen
content in the exhaust gas. The signal generated is not of the proportional type but of the ON/OFF type,
i.e. there is oxygen or there is not. The sensor is positioned on the exhaust manifold before the catalytic
converter in an area where the gas temperature is always high. The temperature at which the sensor
Beverly 300 i.e. Injection
INJEC - 199
