PIAGGIO Beverly 300 i.e. - Removing the Ignition Key-Switch When on off

Removing the ignition key-switch when on *off*

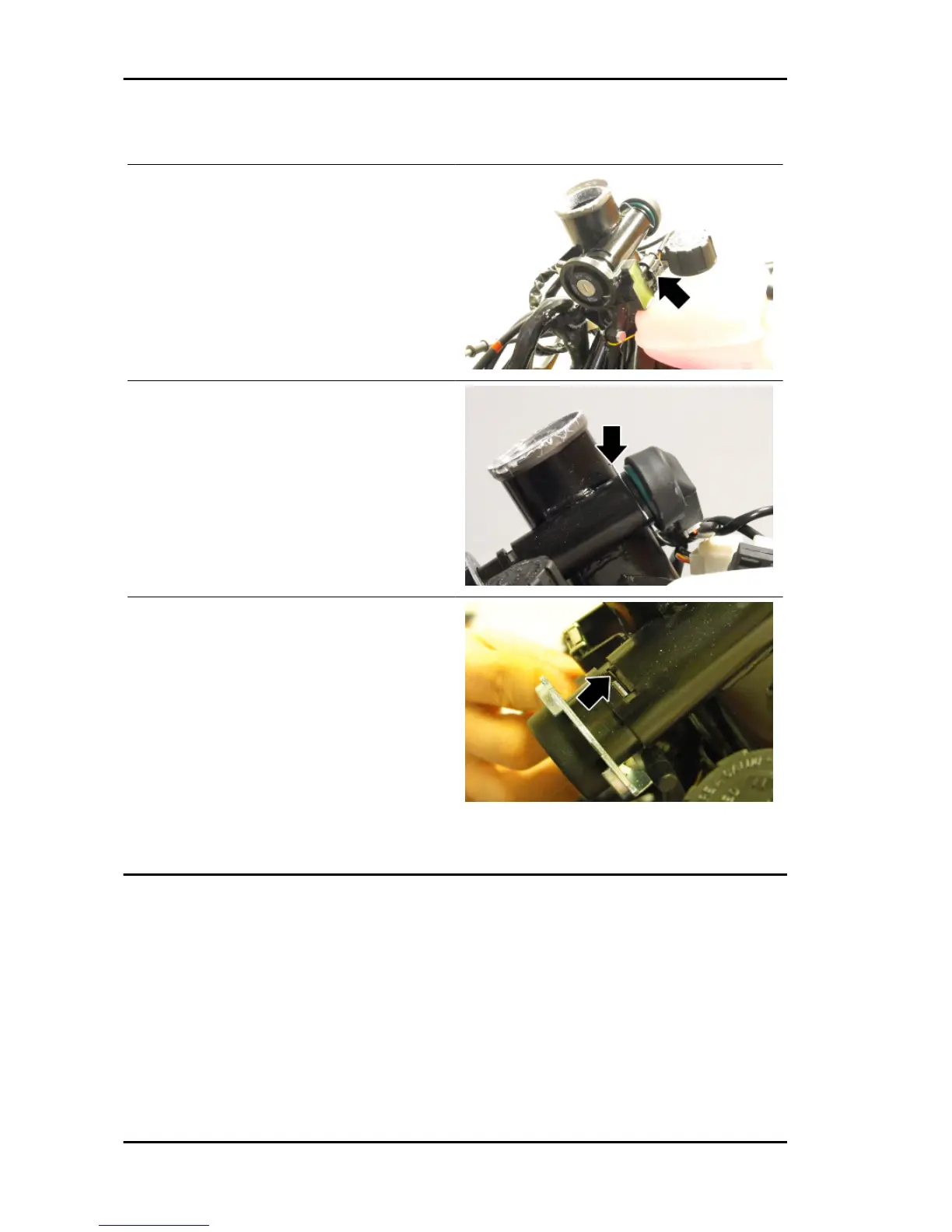

Proceed as follows to remove the lock when in the
«OFF» position:
- Remove the leg shield back plate;
- Disconnect the connector as indicated in the fig-
ure and remove the immobilizer antenna, detach-
ing from the lock body;
- Release the indicated clip and remove the igni-
tion key;
- Press the lock body and remove the cylinder clip
as indicated;
- Release the lock body and remove the cylinder.
