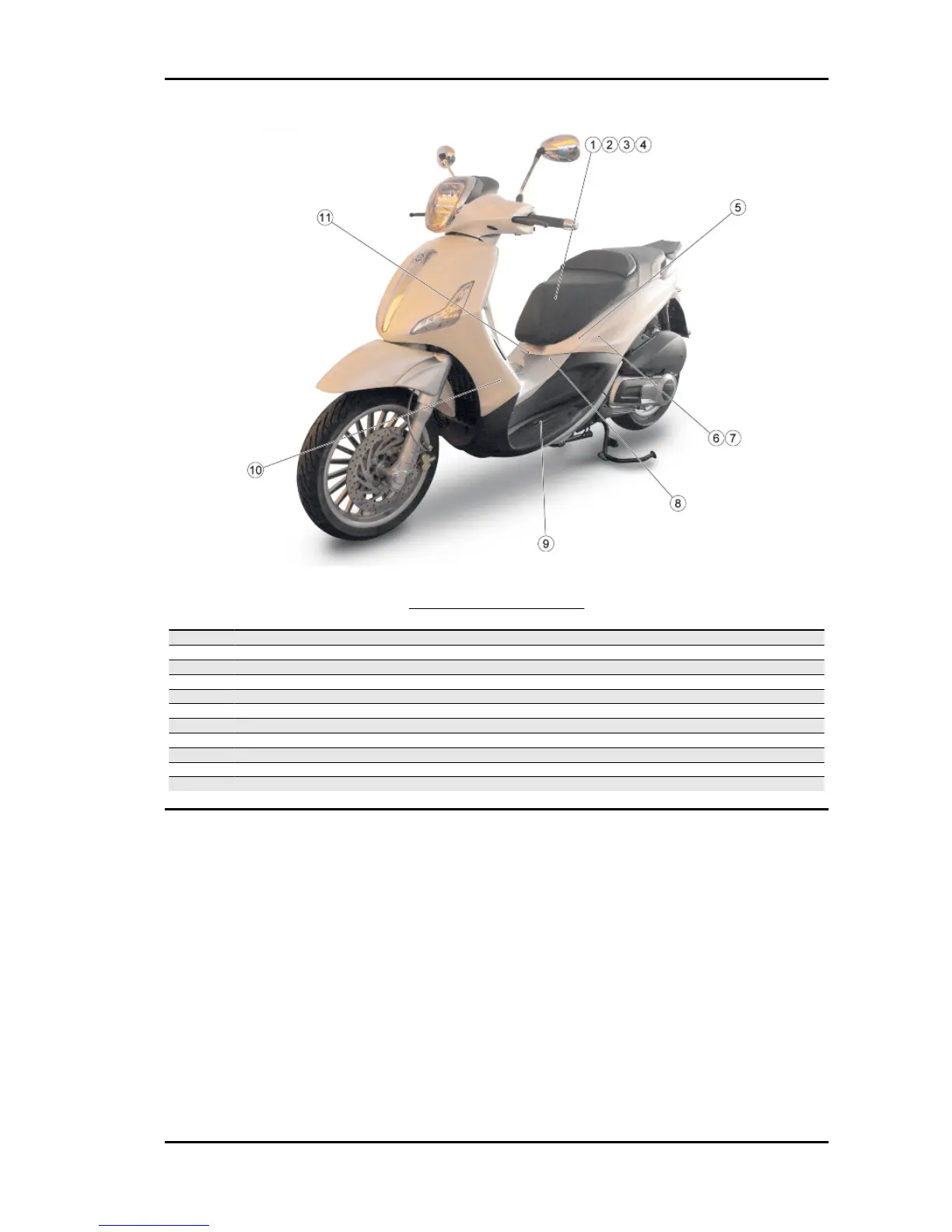

COMPONENT LAYOUT
Specification
Desc./Quantity
1 Battery 12V - 10Ah
2 Diagnostics socket connector
3 Electric fan solenoid
4 Injection load solenoid
5 Water temperature sensor
6 Throttle body and electronic injection control unit (MIU)
7 Fuel injector
8 HV coil
9 Lambda sensor
10 Fuel pump
11 Engine Speed sensor
MIU injection system
This vehicle is fitted with an integrated injection and ignition system.
Injection is indirect in the manifold through an electro-injector.
The injection and ignition are timed on the four-stroke cycle by means of a tone wheel keyed on to the
crankshaft (24-2 teeth) and pick-up sensor.
Combustion and ignition are managed on the basis of engine revs and throttle valve opening. Further
corrections are made according to the following parameters:
- Coolant temperature.
- Intake air temperature
- Lambda probe
Beverly 300 i.e. Injection
INJEC - 167
