PIAGGIO Beverly 300 i.e. - Fuses

Specification Desc./Quantity
7 License plate light bulb Type: All glass W5W
Quantity: 1
Power: 12V - 5W
8 Helmet compartment light bulb Type: Cylindrical C5W
Quantity: 1
Power: 12V - 5W
9 Instrument panel lighting bulb Type: LED
Quantity: 4
Power: -
Line for daylight running lights and instrument panel lighting line
In the event of a malfunction, check:
- Efficiency of the bulbs
- Fuses No. 1 and 5
- Ignition key contacts
- Cable harness continuity
High beam/low beam light line
In the event of a malfunction, check:
- Efficiency of the bulbs
- Light switch
- Headlight from solenoid
- Fuses No. 1, 4, 5 and 6
- Ignition key contacts
- Cable harness continuity

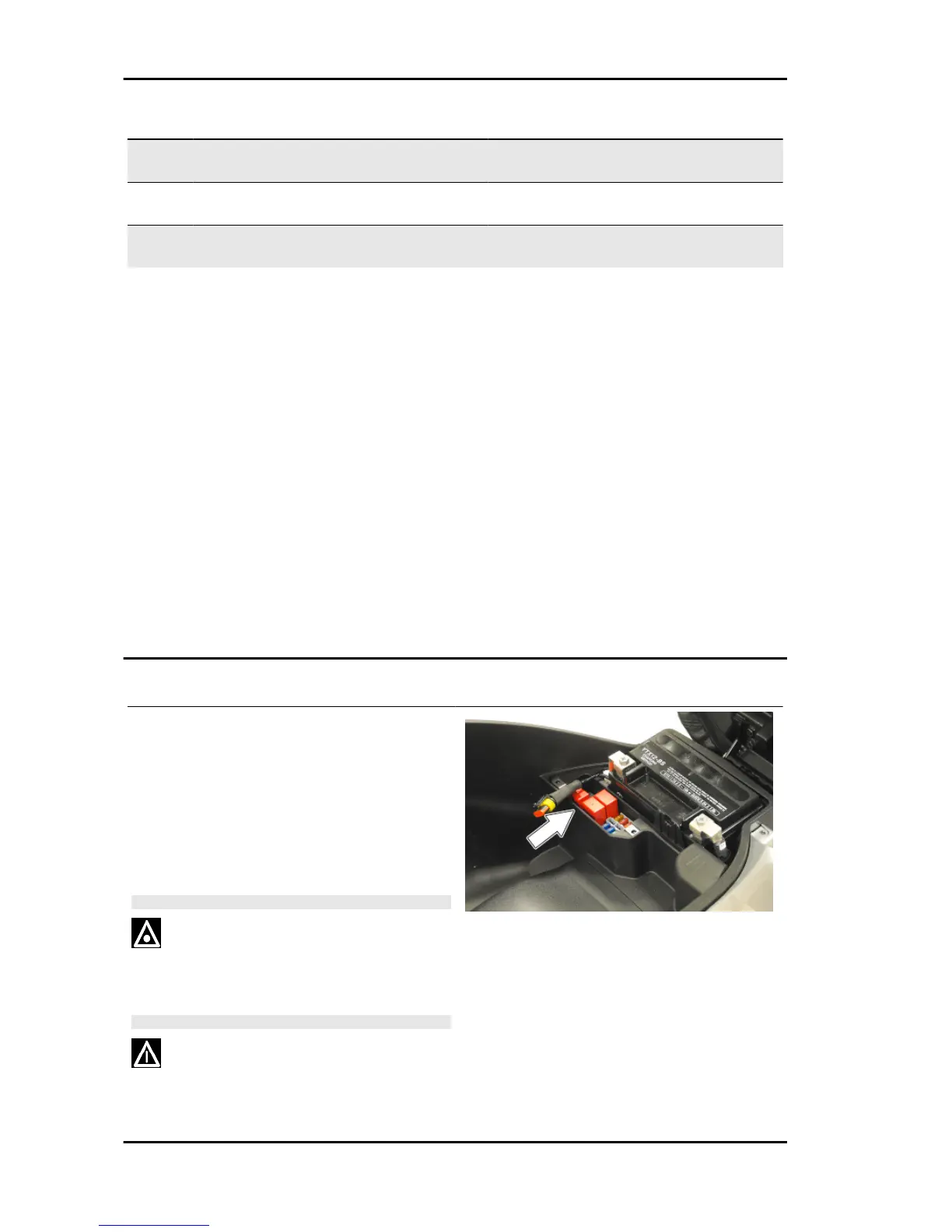

Fuses
The electrical system is equipped with 6 protection
fuses located below the saddle. Open the saddle
as described above.
Unscrew the three screws «A» and remove the
cover «B»
The chart shows the position and specifications of
the fuses in the vehicle.
CAUTION
BEFORE REPLACING A BLOWN FUSE, FIND AND SOLVE
THE FAILURE THAT CAUSED IT TO BLOW. NEVER TRY
TO REPLACE THE FUSE WITH ANY OTHER MATERIAL
(E.G., A PIECE OF ELECTRIC WIRE).
CAUTION
MODIFICATIONS OR REPAIRS TO THE ELECTRICAL SYS-
TEM, PERFORMED INCORRECTLY OR WITHOUT STRICT
ATTENTION TO THE TECHNICAL SPECIFICATIONS OF
Electrical system Beverly 300 i.e.
ELE SYS - 90
