PIAGGIO Beverly 300 i.e. - Cylinder Assy. and Timing System; Removing the Intake Manifold; Removing the Rocker-Arms Cover; Removing the Timing System Drive

Cylinder assy. and timing system

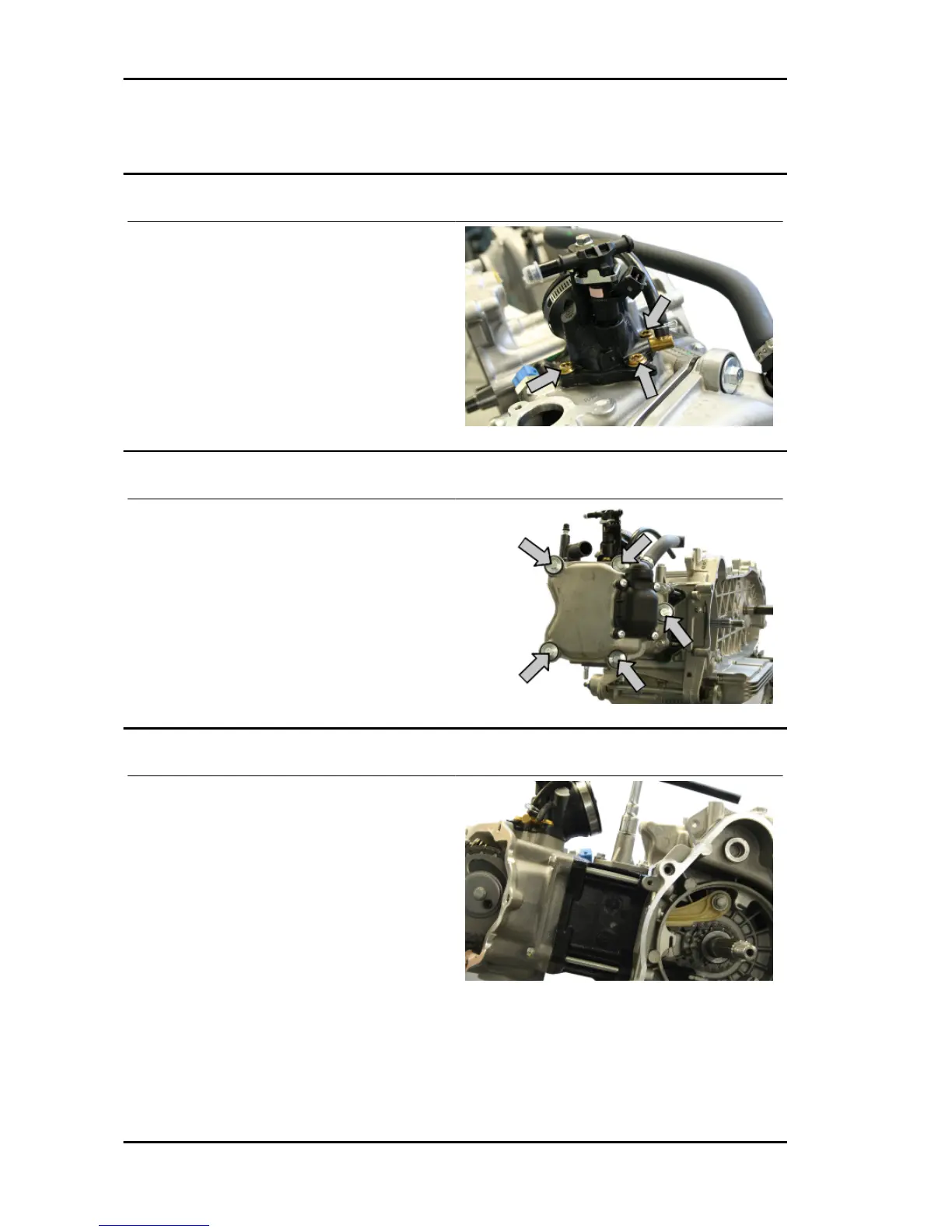

Removing the intake manifold
- Undo the three screws with an anti-tampering
device.
Removing the rocker-arms cover
- Remove the five screws shown in the figure.
- Remove the entire head cover.
Removing the timing system drive
- Remove the oil pump control gear and the pinion
separation washer as described in the «Engine/
Lubrication/Oil pump» section.
- Undo the central screw and collect the washer.
Undo the two fixing screws to the cylinder and re-
move the tensioner together with the gasket.
