PIAGGIO Beverly 300 i.e. - Ignition Diagram

Ignition

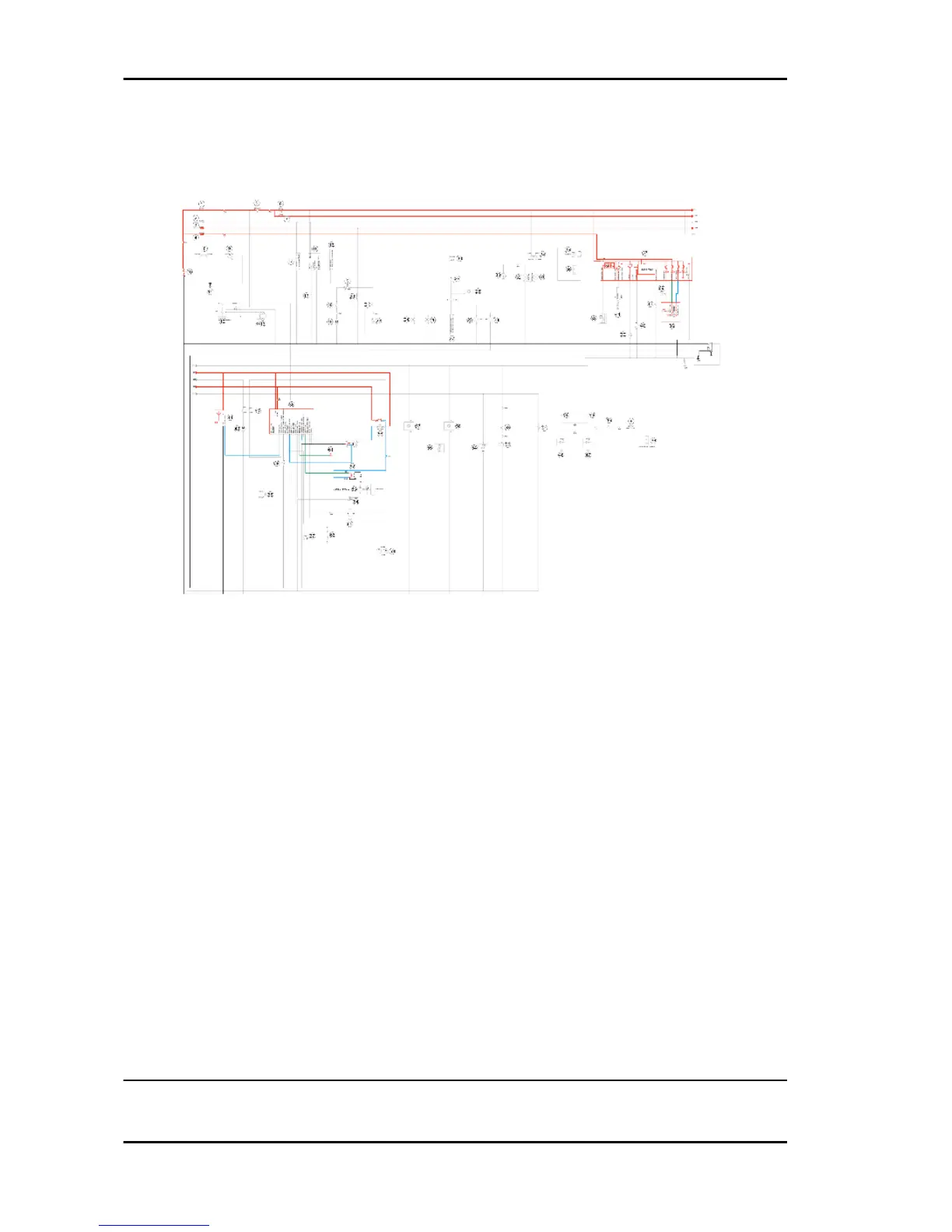

BASIC CIRCUIT DIAGRAM LEGEND:
1. F01-30A
3. F03-10A
4.F04-15A
5.Starter switch
6.F05-10A
7.F06-5A
10.12V - 10Ah Battery
11.Chassis ground
36.Electronic control unit
37.Instrument panel
43.Electric fan
58.Injection load solenoid
60.Engine stop switch
61.Stand button (raised position)
62.HV coil
Electrical system Beverly 300 i.e.
ELE SYS - 70
