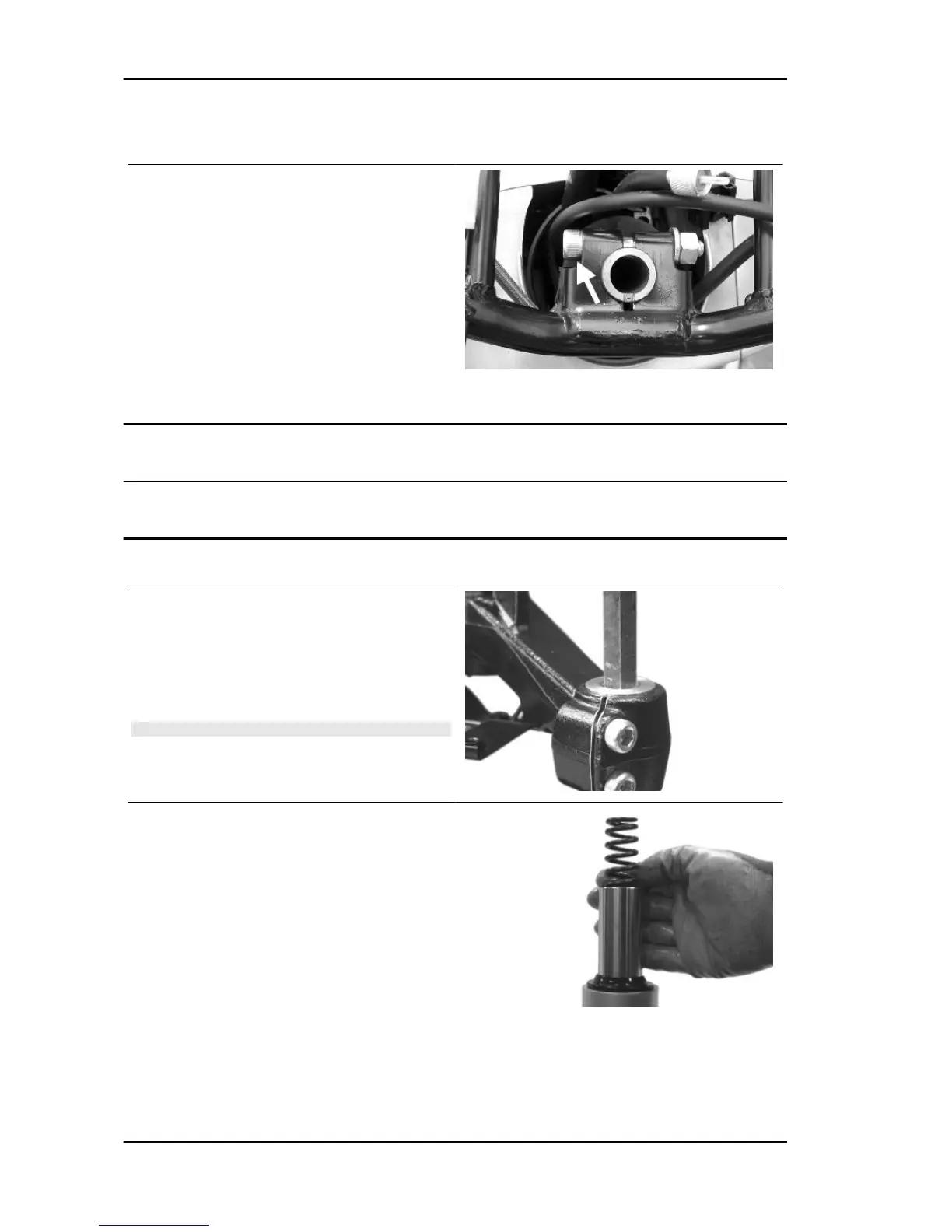

Refitting
- Install the handlebar on the steering tube, paying
attention to the centring, aligning the recess on the
handlebar with that on the steering tube as shown
in the figure.
- Tighten the handlebar fixing screw on the steer-
ing tube to the prescribed torque.
Locking torques (N*m)
Handlebar fixing screw (*) 45 to 50
(*) Lubricate the nuts with engine oil before installation
Front fork
Removal
Overhaul
- Support the fork in a vice.
- Loosen the two tightening screws of the stem
supporting clamp.
- Unscrew the stem closing cap and slide off the
complete fork leg from the corresponding support.
CAUTION
THE STEM CLOSING CAP KEEPS THE MAIN SPRING PRE-
LOADED. KEEP THE CAP PROPERLY FITTED DURING
THE REMOVAL FINAL STAGE TO AVOID ACCIDENTS.
- Support the fork leg properly, remove the main
spring and drain off the fork leg oil.
