Connectors

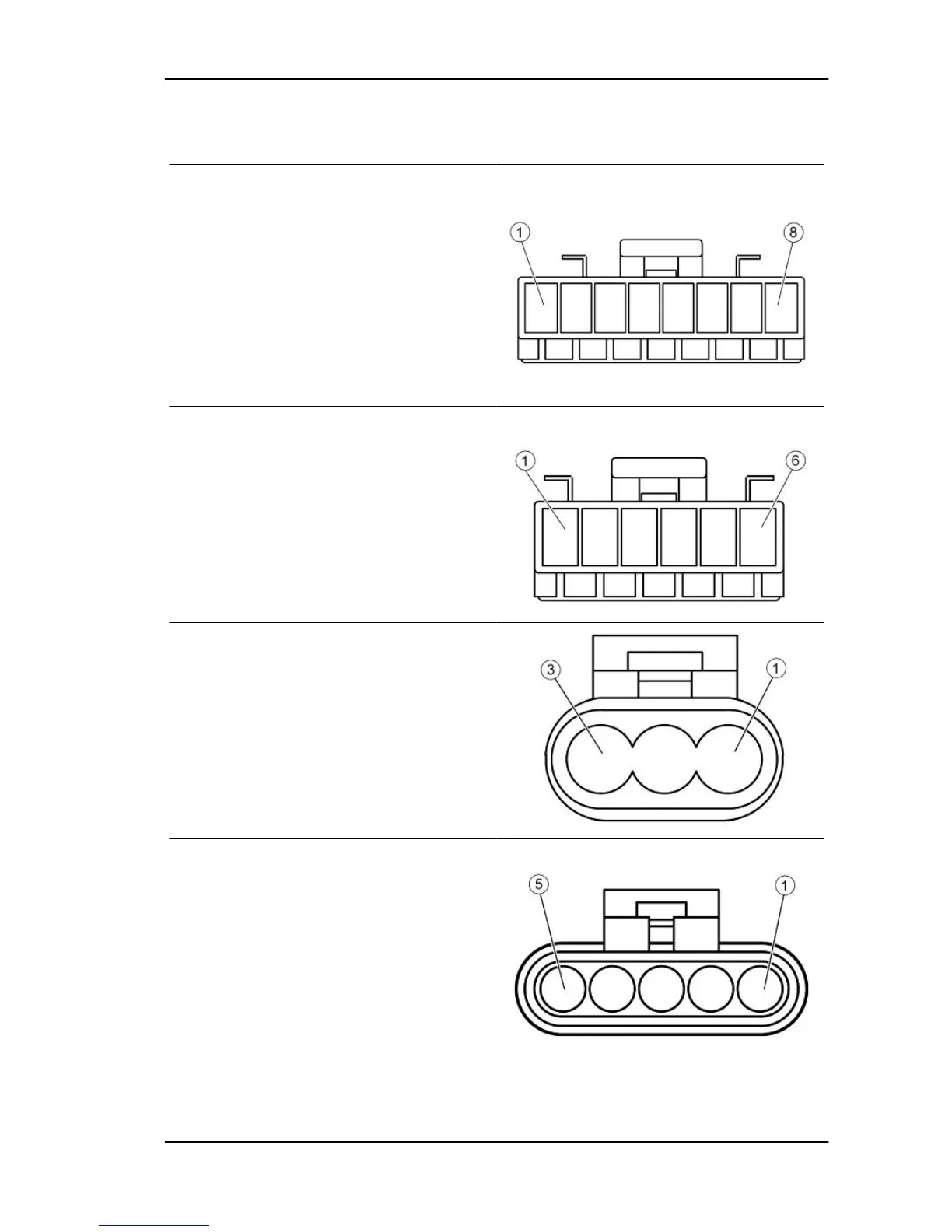

INSTRUMENT PANEL CONNECTOR «A»
1. Left turn indicator warning light (Pink)
2. Immobilizer (Red-Green)
3. Battery-powered (Red-Black)
4. Coolant temperature sensor (Green-Yellow)
5. Not connected
6. Fuel level transmitter (White-Green)
7. Right turn indicator warning light (White-Blue)
8. Low fuel warning light (Grey-Black)
INSTRUMENT PANEL CONNECTOR «B»
1. High-beam warning light (Violet)
2. Ground lead (Black)
3. Injection warning light (Brown-Black)
4. Oil pressure sensor (Pink-White)
5. Live power supply (White)
6. Instrument panel lighting (Yellow-Black)
IMMOBILIZER AERIAL CONNECTOR
1. Live power supply (Red-White)
2. Ground lead (Black)
3. Injection ECU (Orange-White)
FUEL PUMP CONNECTOR
1. Not connected
2. Ground lead (Black)
3. Not connected
4. Not connected
5. Power from relay (Black-Green)
Beverly 300 i.e. Electrical system
