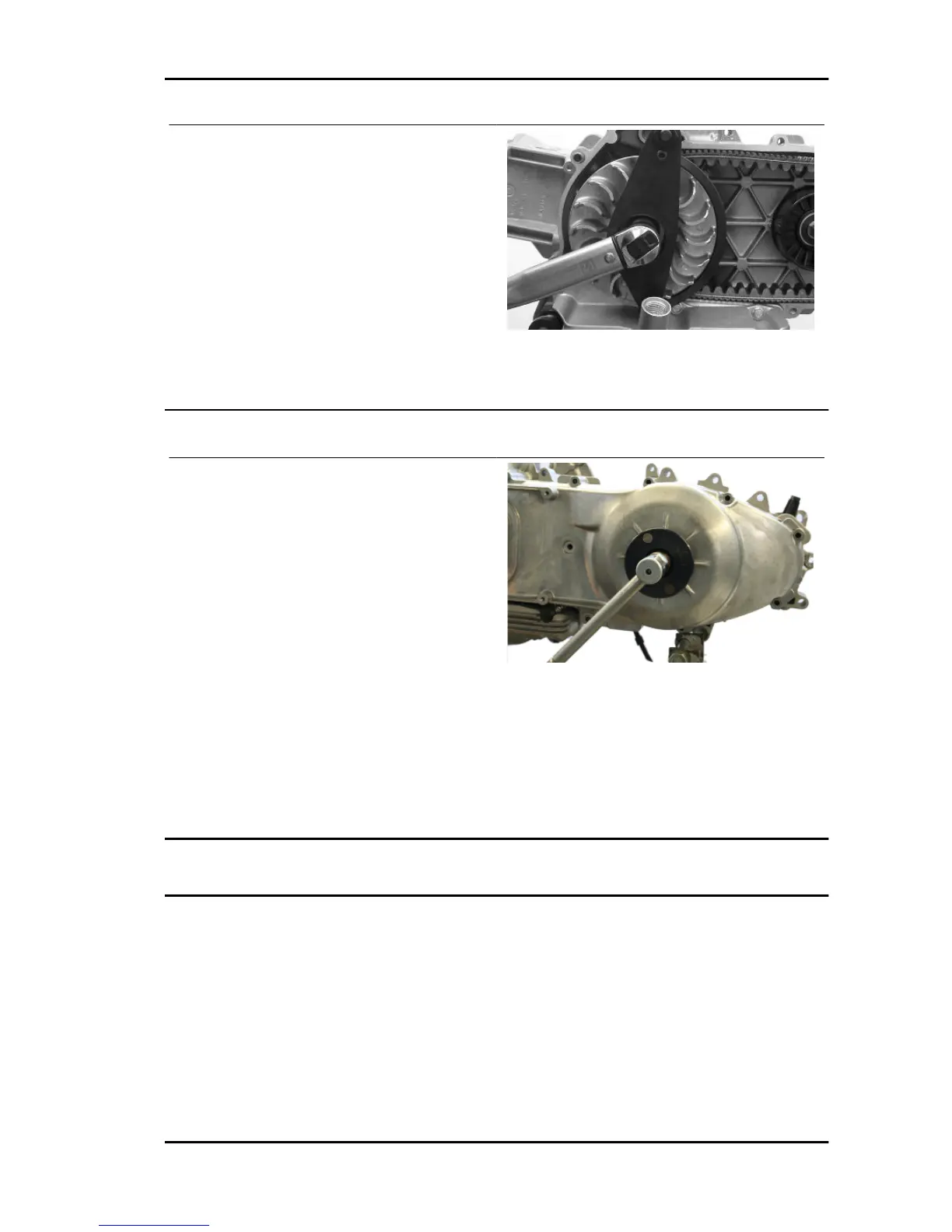

- Fit the steel shim in contact with the bushing and
the stationary drive pulley.
- Install the appropriate tool as described in the re-
moval phase.
-Tighten the nut with washer to the prescribed tor-
que.
Specific tooling
020626Y008 Driving pulley lock wrench
Locking torques (N*m)
Drive pulley nut 75 - 83
Refitting the transmission cover
- Check that there are two alignment dowels and
that the sealing gasket for the oil sump on the
transmission cover is adequately fitted.
- Refit the cover and tighten the «12» screws to the
specified torque.
- Refit the steel washer and the driven pulley nut.
- Tighten the nut to the prescribed torque using the
lock wrench and the torque wrench tools.
- Refit the plastic cover.
Specific tooling
020423Y Driven pulley lock wrench
Locking torques (N*m)
Transmission cover screws 11 - 13 Driven pulley
shaft nut 54 - 60
End gear
Beverly 300 i.e. Engine
ENG - 123
