PIAGGIO Beverly 300 i.e. - Turn Signals System Check

Turn signals system check

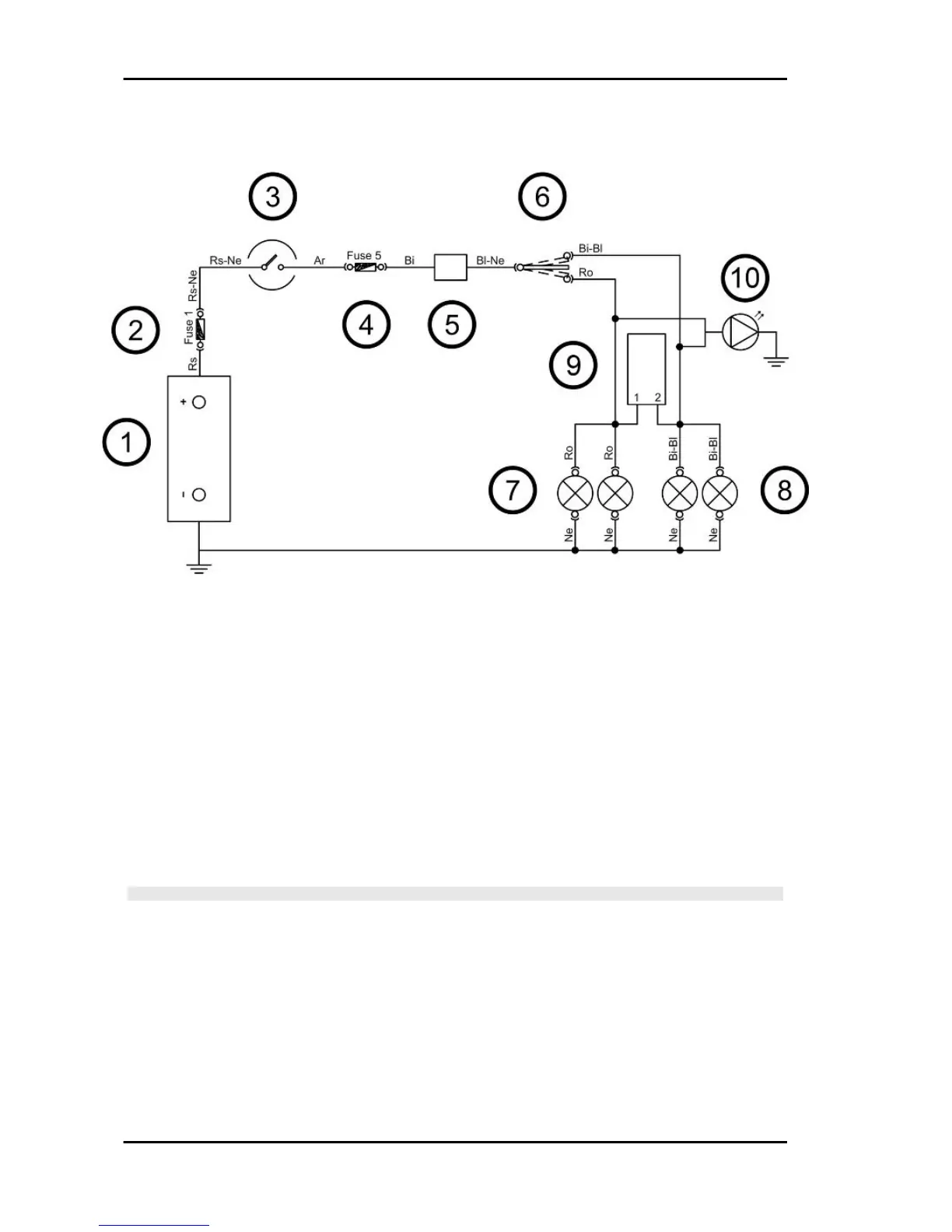

KEY
1. Battery
2. Fuse No. 1
3. Ignition switch contacts
4. Fuse No. 5
5. Turn indicator control device
6. Turn indicator switch
7. Left turn indicators
8. Right turn indicators
9. Antitheft
10. Warning light bulb
WARNING
ALL CONTINUITY TESTS MUST BE CARRIED OUT WITH THE CORRESPONDING CONNECTORS
DISCONNECTED.
1) Check the working order of bulbs.
2) Check fuses No. 1 and 5 and the ignition key contacts.
3) Check if there is intermittent voltage between the Blue-Black cable of the turn indicator control device
and the ground connection.
4) If there is no voltage, check that the cable harness is not interrupted.
5) Check the turn indicator switch.
Electrical system Beverly 300 i.e.
ELE SYS - 88
