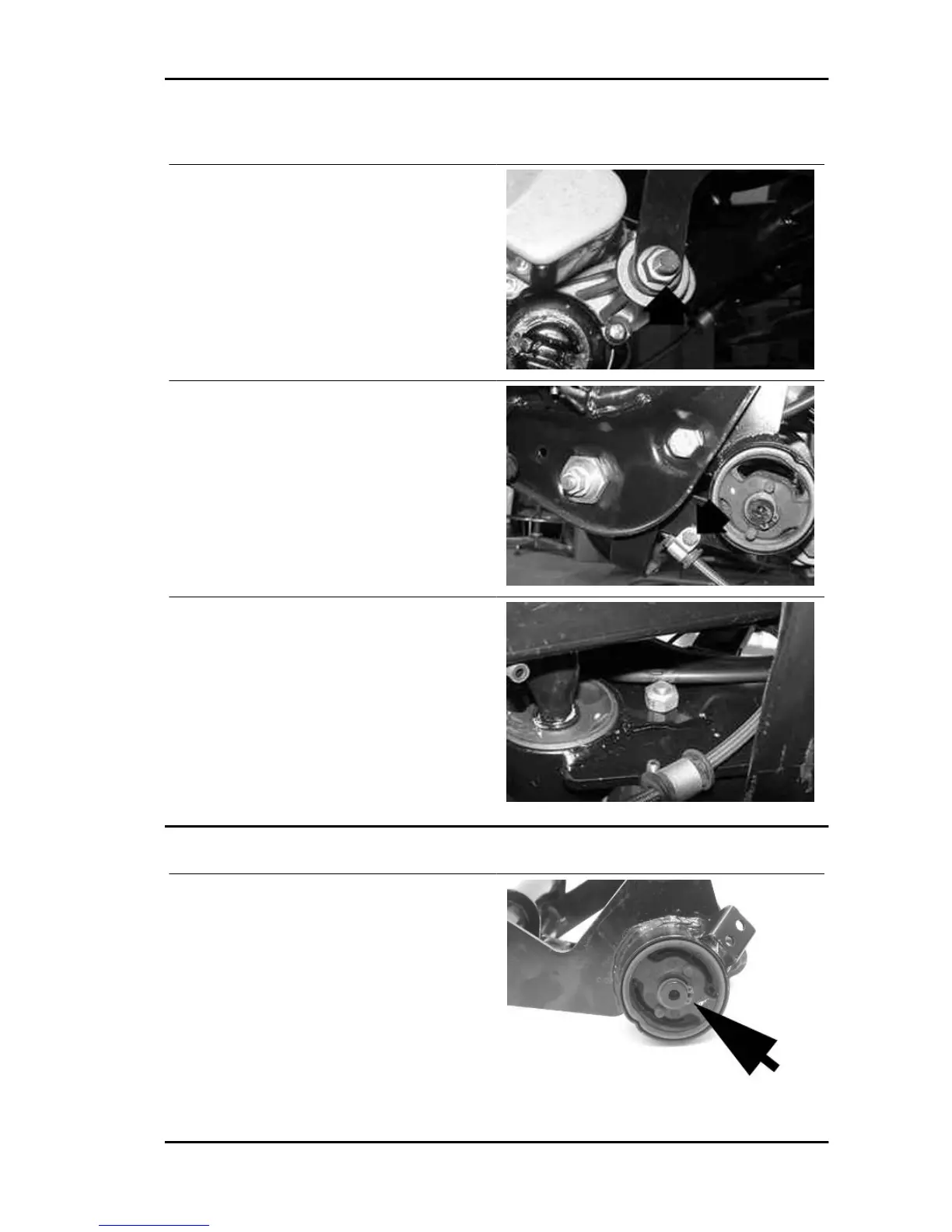

Removal
- Place the vehicle on its centre stand;
- Support the engine adequately;
- Loosen the nut shown in the figure and pull out
the pin from the left-hand side.
- Loosen the nut and lock nut on the left-hand side
of the scooter (see figure) and unscrew the pin
from the opposite side.
- Remove the retaining screw of the rear brake
pipe shown in the figure.
- Loosen the nut on the inside of the frame from
the left-hand side (see figure) and remove the rel-
evant pin;
- Remove the swinging arm.
Overhaul
- Check that the silent bloc is not damaged. If it is,
replace the coupling.
- Remove the Seeger ring shown in the picture
Beverly 300 i.e. Suspensions
SUSP - 221
