PIAGGIO Beverly 300 i.e. - HT Coil

With the interface wiring and rpm sensor connec-
tor disconnected from the control unit, check that
the Red and Brown cables (pin 13 - 15) are isola-
ted from each other and insulated from the ground.
Specific tooling
020481Y Control unit interface wiring
020331Y Digital multimeter
HT coil

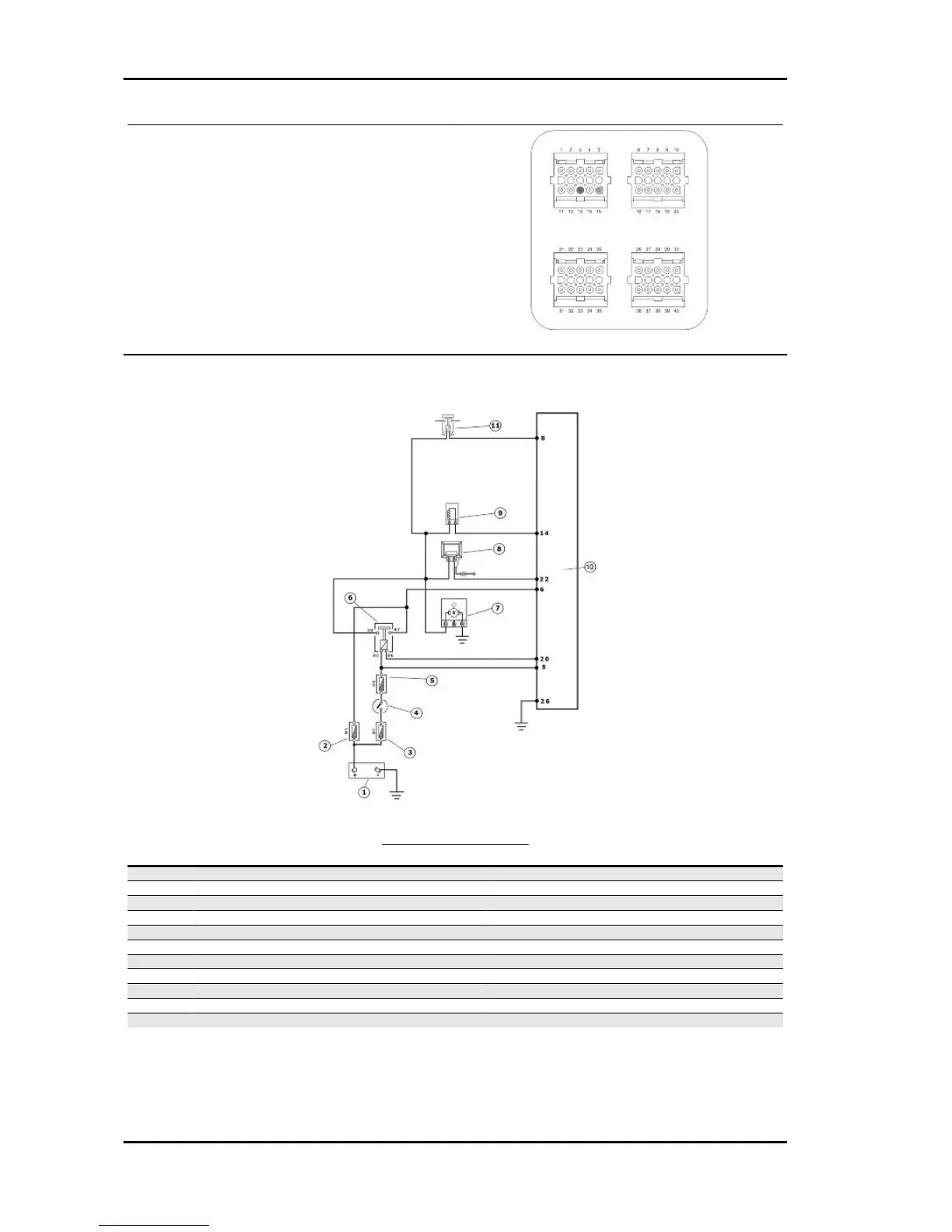

INJECTION LOADS
Specification
Desc./Quantity
1 Battery 12V - 12 Ah
2 Fuse No. 3 10 A
3 Fuse No. 1 30 A
4 Ignition switch contacts
5 Fuse No. 6 5A
6 Injection load solenoid
7 Fuel pump
8 HV coil
9 Fuel injector
10 Injection ECU
11 Electric fan solenoid
The ignition system is integrated with the injection and it is a high-efficiency inductive type ignition.
The control unit controls two important parameters:
- Ignition advance
