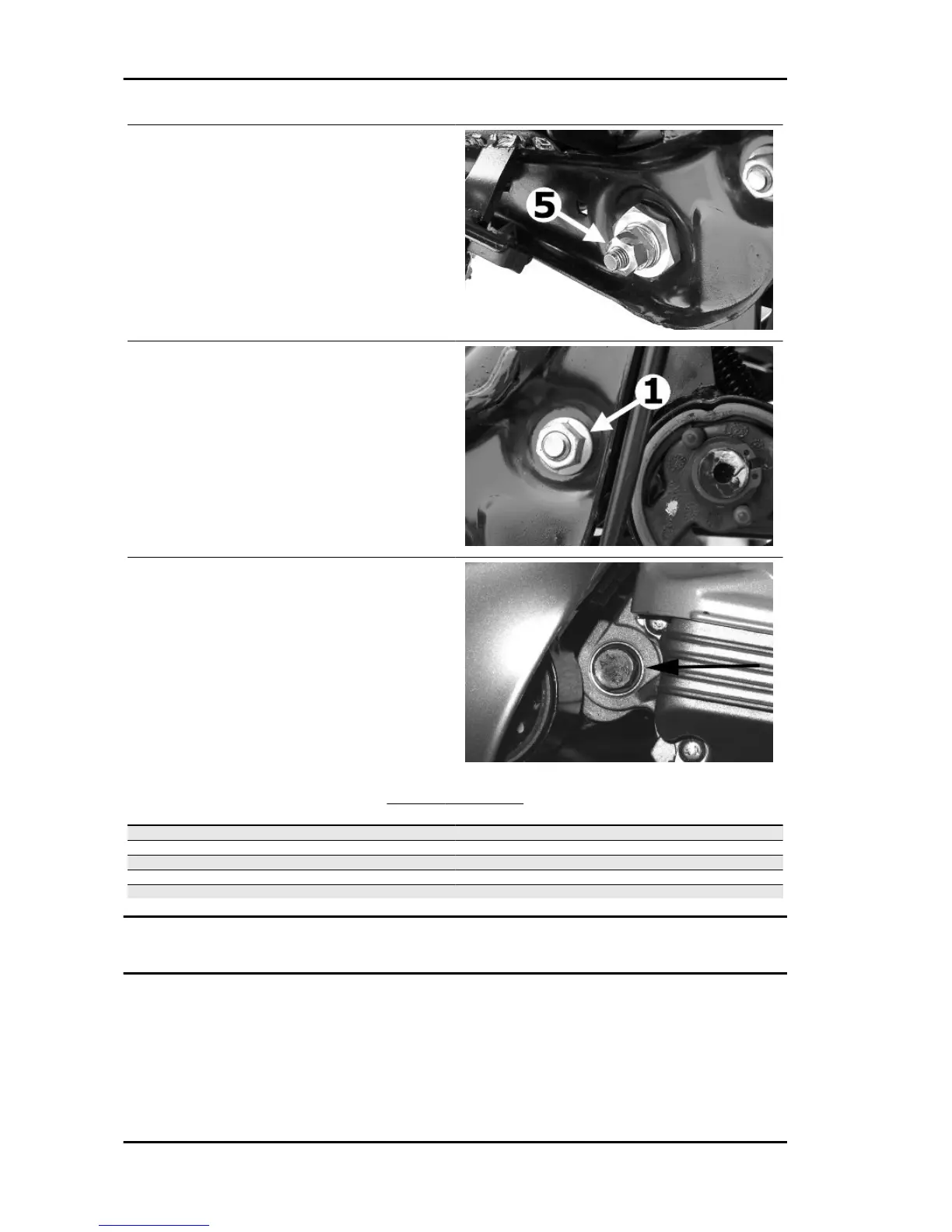

- Screw and tighten part «
5
» to the prescribed tor-
que.
- Tighten part «
1
» to the prescribed torque.
- Insert the swinging arm - engine pin and tighten
to the prescribed torque.
SWINGING
ARM
FITTING
Name
Torque in Nm
Part 1
64 - 72
Part 3
5 - 7
Part 4
90 - 110
Part 5
50 ÷ 55
Engine-swinging arm pin
55 ÷ 61
Shock absorbers
Suspensions
Beverly 300 i.e.
SUSP - 226
225
227
