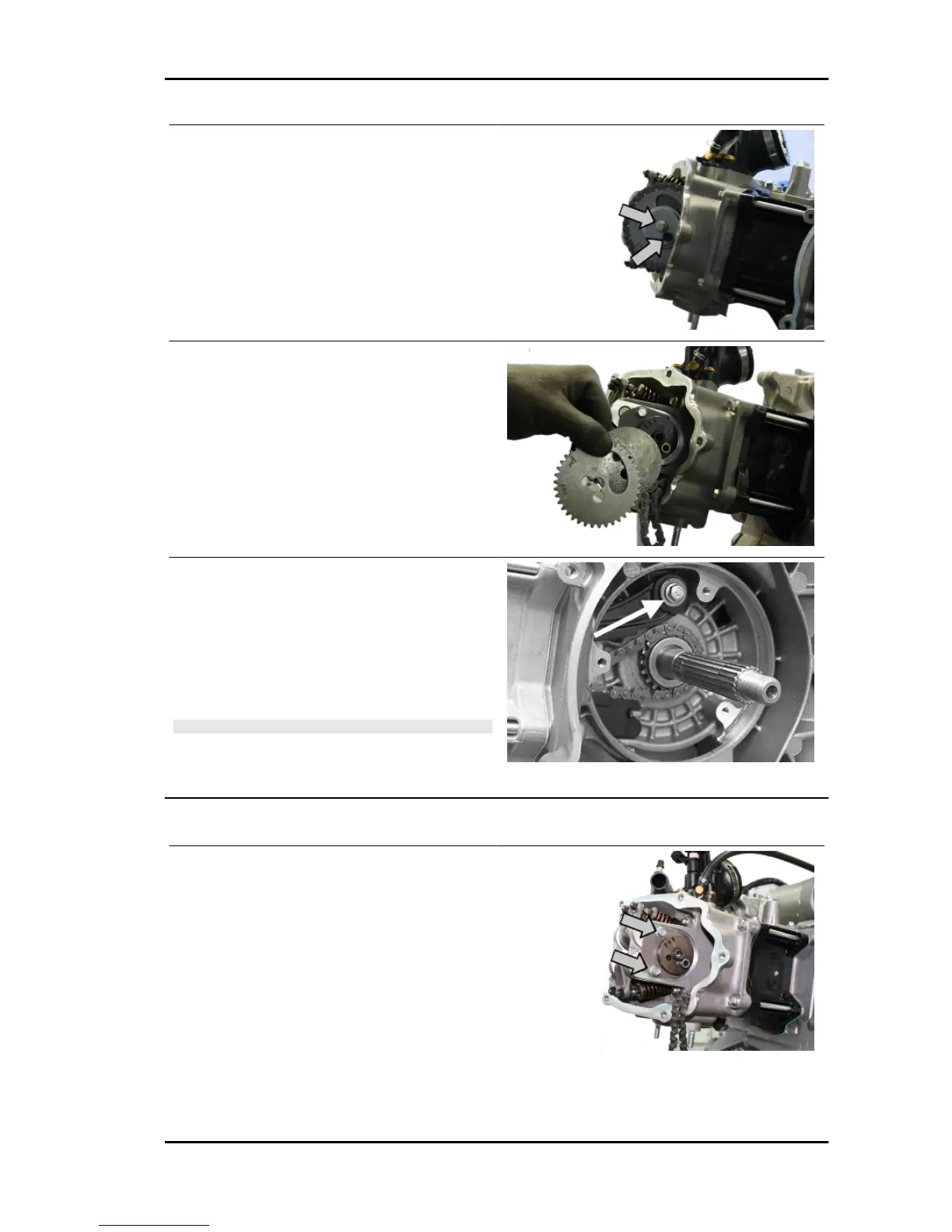

PIAGGIO Beverly 300 i.e. - Removing the Cam Shaft

- Undo the two screws indicated.
- Detach the timing chain and remove the camshaft
control pulley and the corresponding washer.
- Remove the screws indicated in the figure, the
spacer bar and the tensioner slider.
- Remove the control sprocket wheel and the tim-
ing chain.
- As regards the chain guide slider, it may only be
removed after the head has been removed.
N.B.
IT IS ADVISABLE TO MARK THE CHAIN IN ORDER TO EN-
SURE THAT THE INITIAL DIRECTION OF ROTATION IS
MAINTAINED.
Removing the cam shaft
- Undo the two indicated fixing screws to the cyl-
inder and remove the fixing plate.
Beverly 300 i.e. Engine
ENG - 139
