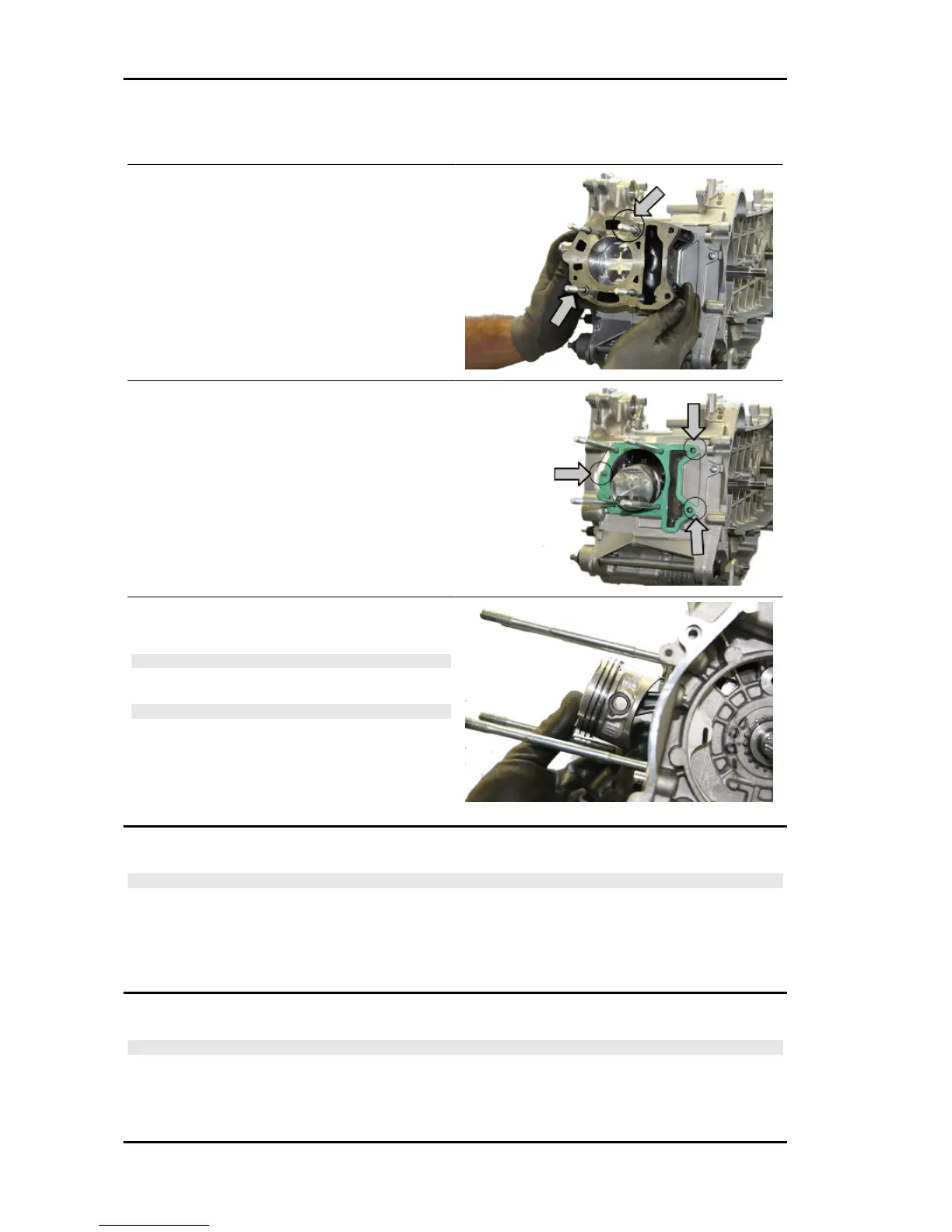

Removing the cylinder - piston assy.
- Remove the chain guide slider; be careful with
the two alignment dowels and remove the cylinder.
- Remove the base gasket; be careful with the two
centring dowels and the dowel pin.
- Remove the sealing rings, the pin and remove
the piston.
CAUTION
TO PREVENT DAMAGING THE PISTON, SUPPORT IT
WHILE REMOVING THE CYLINDER.
N.B.
BE CAREFUL NOT TO DAMAGE THE SEALING RINGS
DURING REMOVAL.
Inspecting the small end
N.B.
TO MEASURE WEAR LIMITS AND COUPLING CLEARANCES, SEE THE SPECIFICATIONS CHAP-
TER.
See also
Crankcase - crankshaft - connecting rod
Inspecting the wrist pin
N.B.
TO MEASURE WEAR LIMITS AND COUPLING CLEARANCES, SEE THE SPECIFICATIONS CHAP-
TER.
See also
Engine Beverly 300 i.e.
ENG - 142
