020412Y 15-mm guide

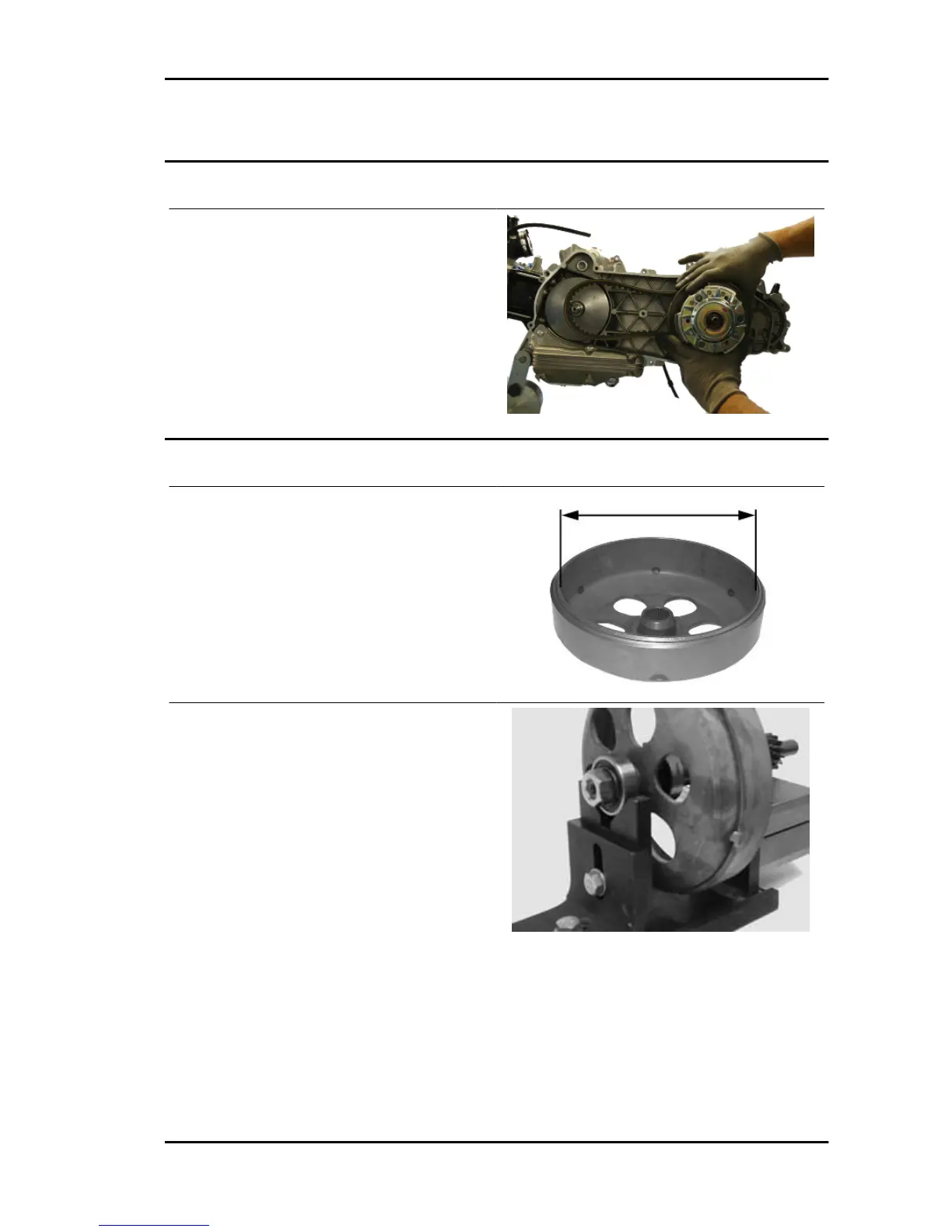

Removing the driven pulley
- Remove the stationary driving half-pulley and the
clutch housing.
- Remove the driven pulley together with the belt.
Inspecting the clutch drum
- Check that the clutch bell is not worn or damaged.
- Measure the clutch bell inside diameter.
Characteristic
Max. value clutch housing
Max. value: Ø 134.5 mm
clutch housing standard value
Standard value: Ø 134 - 134.2 mm
Checking the bell working surface eccentricity
- Install the bell on a driven pulley shaft using 2
bearings (inside diameter: 15 and 17 mm).
- Lock with the original spacer and nut.
- Place the bell/shaft unit on the support to check
the crankshaft alignment.
Beverly 300 i.e. Engine
ENG - 111
