PIAGGIO Beverly 300 i.e. - To Remove the Driven Pulley Shaft Bearing; Inspecting the Hub Shaft

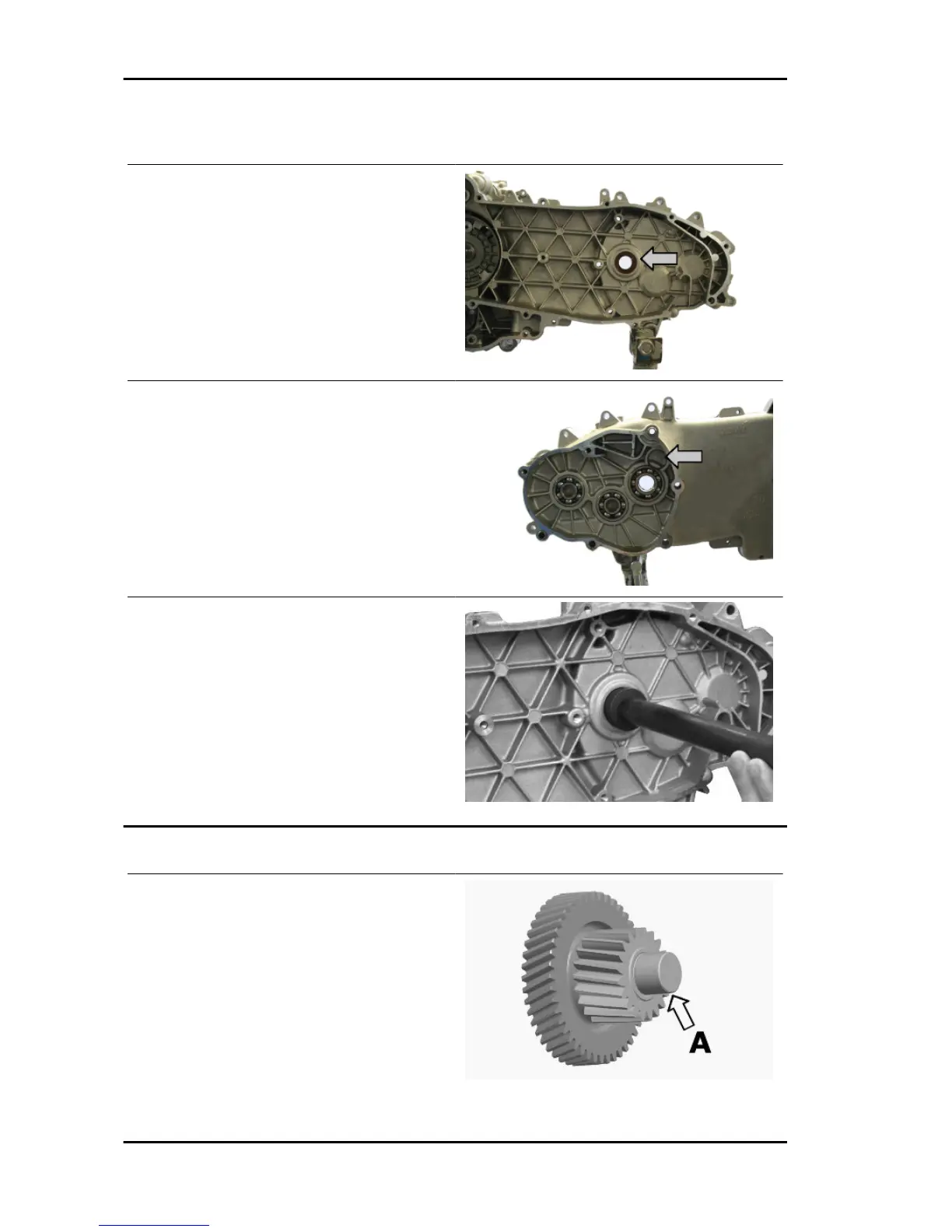

Removing the driven pulley shaft bearing
- Extract the driven pulley shaft from its bearing.
- Remove the oil seal using a screwdriver and be
careful not to damage the seat.
- Remove the Seeger ring indicated.
Specific tooling
020376Y Adaptor handle
020375Y 28 x 30 mm adaptor
020363Y 20-mm guide
- Remove the driven pulley shaft bearing using the
modular punch.
Specific tooling
020376Y Adaptor handle
020375Y 28 x 30 mm adaptor
020363Y 20-mm guide
Inspecting the hub shaft
- Check that the 3 shafts exhibit no wear or defor-
mation on the grooved surfaces, at the bearings
and at the oil seals.
- In case of faults, replace the damaged parts.
