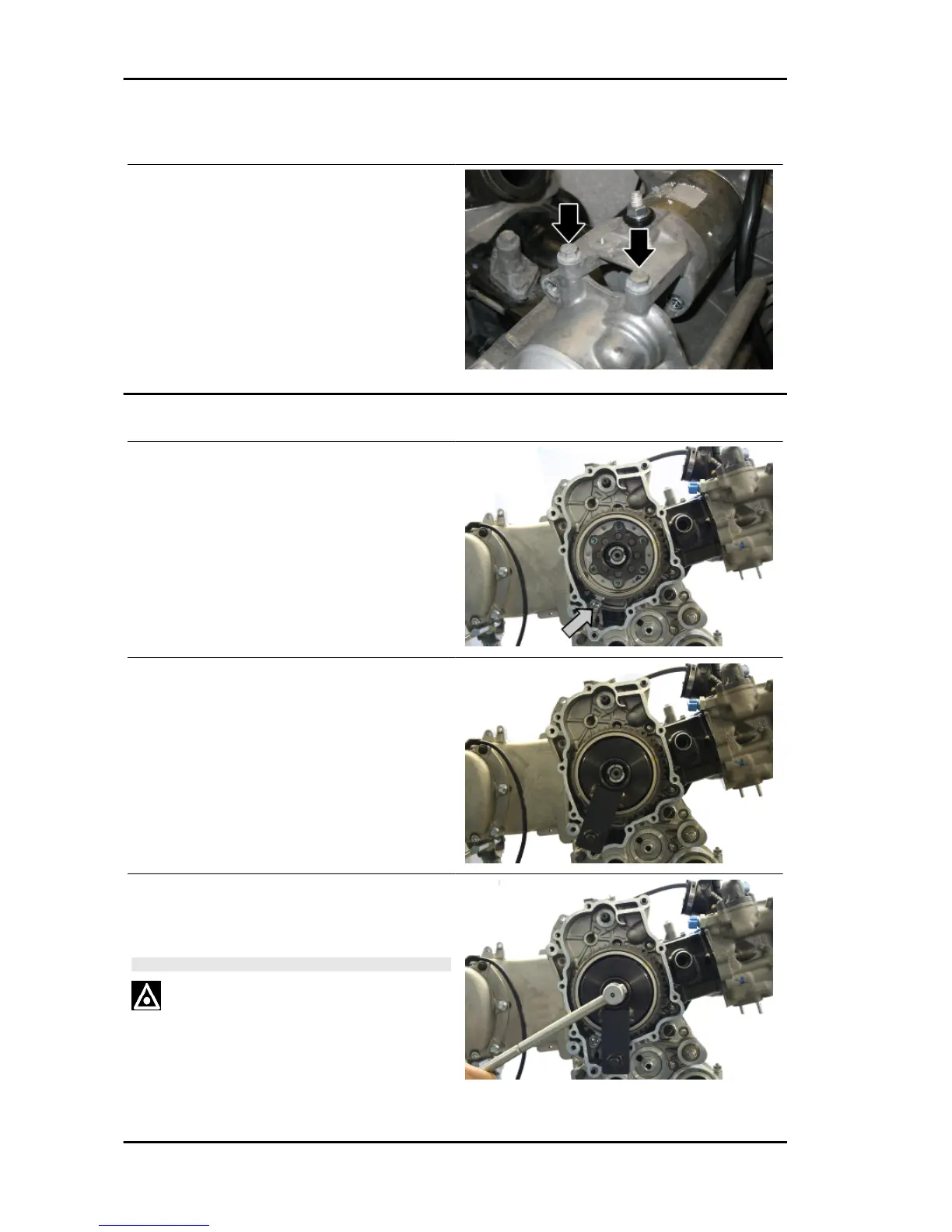

Removing the starter motor
- Remove the two screws indicated in the figure
- Take the starter motor out of its seat
Removing the flywheel magneto
- Remove the screw and the plate of the starting
sprocket.
- Fit the specific tool, screw the guide bushing to
the flywheel, insert the flywheel stop tool as shown
in the picture.
Specific tooling
020627Y Flywheel lock wrench
- Undo the flywheel screw and remove the washer.
- Manually screw the nut without washer, being
careful not to leave the first threads uncovered.
CAUTION
SCREWING UP THE NUT WITHOUT WASHER HELPS PRO-
TECT THE THREAD AGAINST THE STRAIN EXERTED BY
THE EXTRACTOR AND ALSO PREVENTS DROPPING THE
FLYWHEEL ACCIDENTALLY UPON EXTRACTING IT. PO-
TENTIAL DROPS MAY DAMAGE THE CERAMIC INSERTS.
Engine Beverly 300 i.e.
ENG - 134
