PIAGGIO Beverly 300 i.e. - Swinging Arm Service

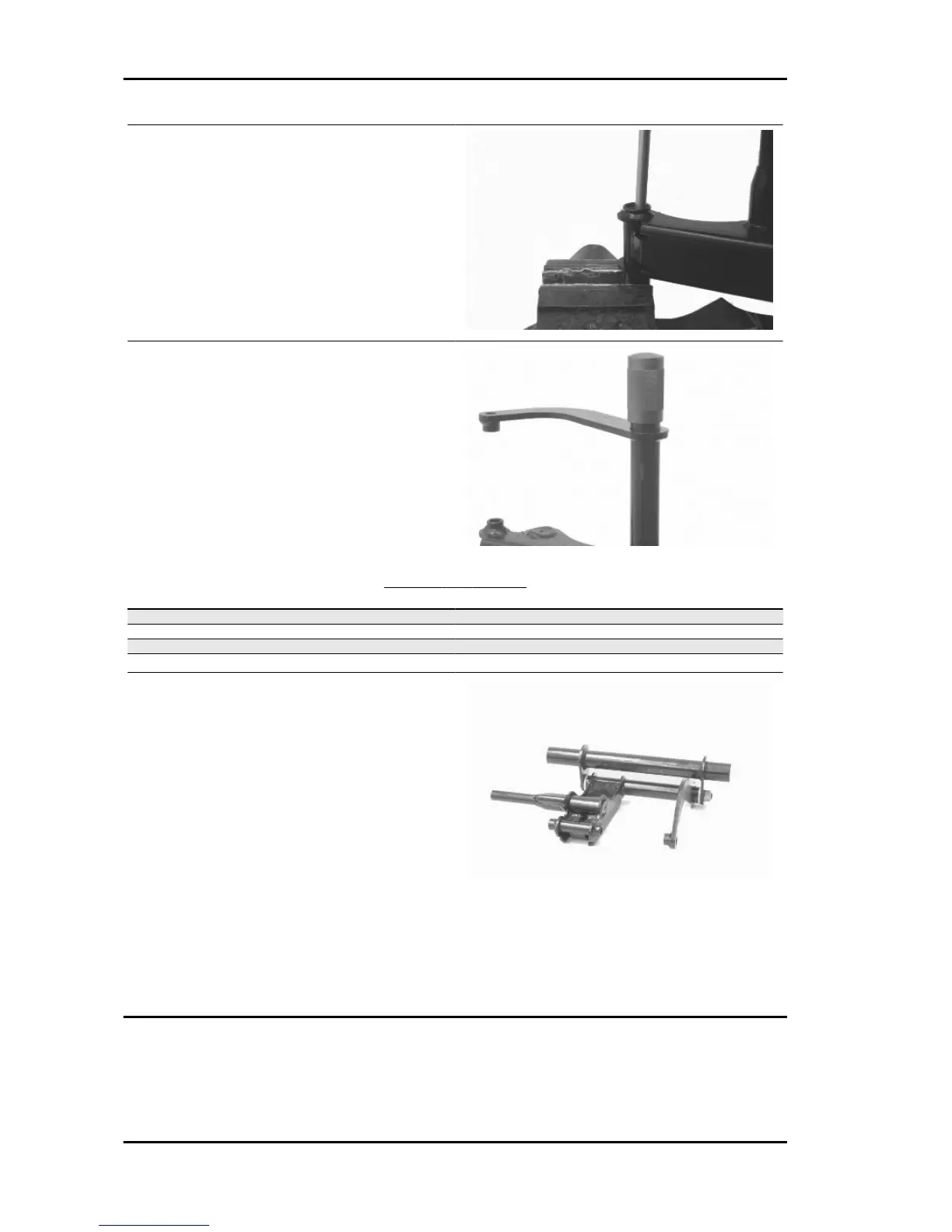

- Using a suitable pin remove the roller casings as
shown in the pictures
- Using an appropriate tool plant new roller cas-
ings, being careful to position the bearings with the
seal rings facing outwards
Specific tooling
020115Y Ø 18 punch
020244Y 15-mm diameter punch
SWINGING ARM SERVICE
Specification
Desc./Quantity
Length of the internal swinging arm spacer on the frame side 228 -0.2/-0.4 mm
Length of the internal swinging arm spacer on the engine side 183 0/-0.2 mm
Length of the swinging arm tube on the engine side 182.5 -0.1/-0.3 mm
Length of the swinging arm tube on the frame side 227.1+0.2/0 mm
- Lubricate the roller bearing housings with grease
- Insert the spacers
- Assemble the two arms with the relative bolt in
the position shown in the picture
- Adjust the bolt as shown in the picture
- Position the chassis side swinging arm with the
most protruding part pointing towards the silent
block side as shown in the picture
Recommended products
AGIP GREASE PV2 Ivory smooth-textured,
slightly-stringy anhydrous calcium-base
grease.
TL 9150 066, NATO G 460 symbol
Suspensions Beverly 300 i.e.
SUSP - 224
